MUTOH Valuevet VJ-628X - Replacing Frame Section; Replacing Media Holder

3.4.1 Replacing Media Holder 72
3.4 Replacing Frame section VJ628XE-M-00
3.4 Replacing Frame section
3.4.1 Replacing Media Holder
● Tools & Jigs & Maintenance part
㨀㧵㧼
This section describes the procedure to replace the maintenance part,Media Holder
Assy.In this section, it is referred to as Media Holder.
Name No. Remarks
Media Holder Assy DG-44697 Exploded View Frame R•Heater
Phillips screwdriverNo.1 Generic
products
-

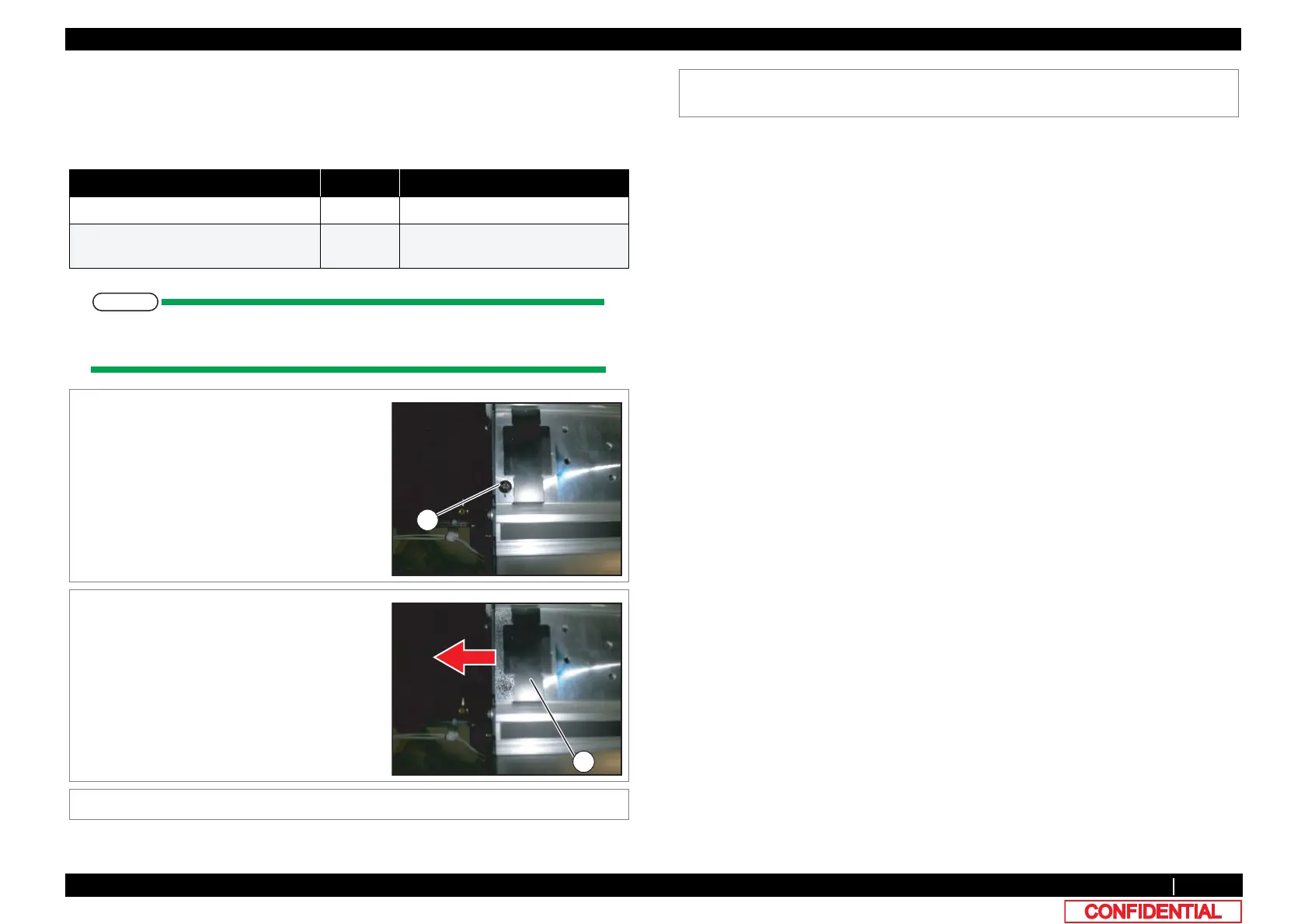

1 Remove the screw.
A : Pan head small screwM2ｘ5
2 Remove Media Holder horizontally.
A : Media Holder
3 Replace Media Holder.
A
A
4 To reassemble unit, reverse the removal
procedure.
