3.11.5 Replacing Holder Pressure Spring 171
3.11 Replacing IH VJ628XE-M-00

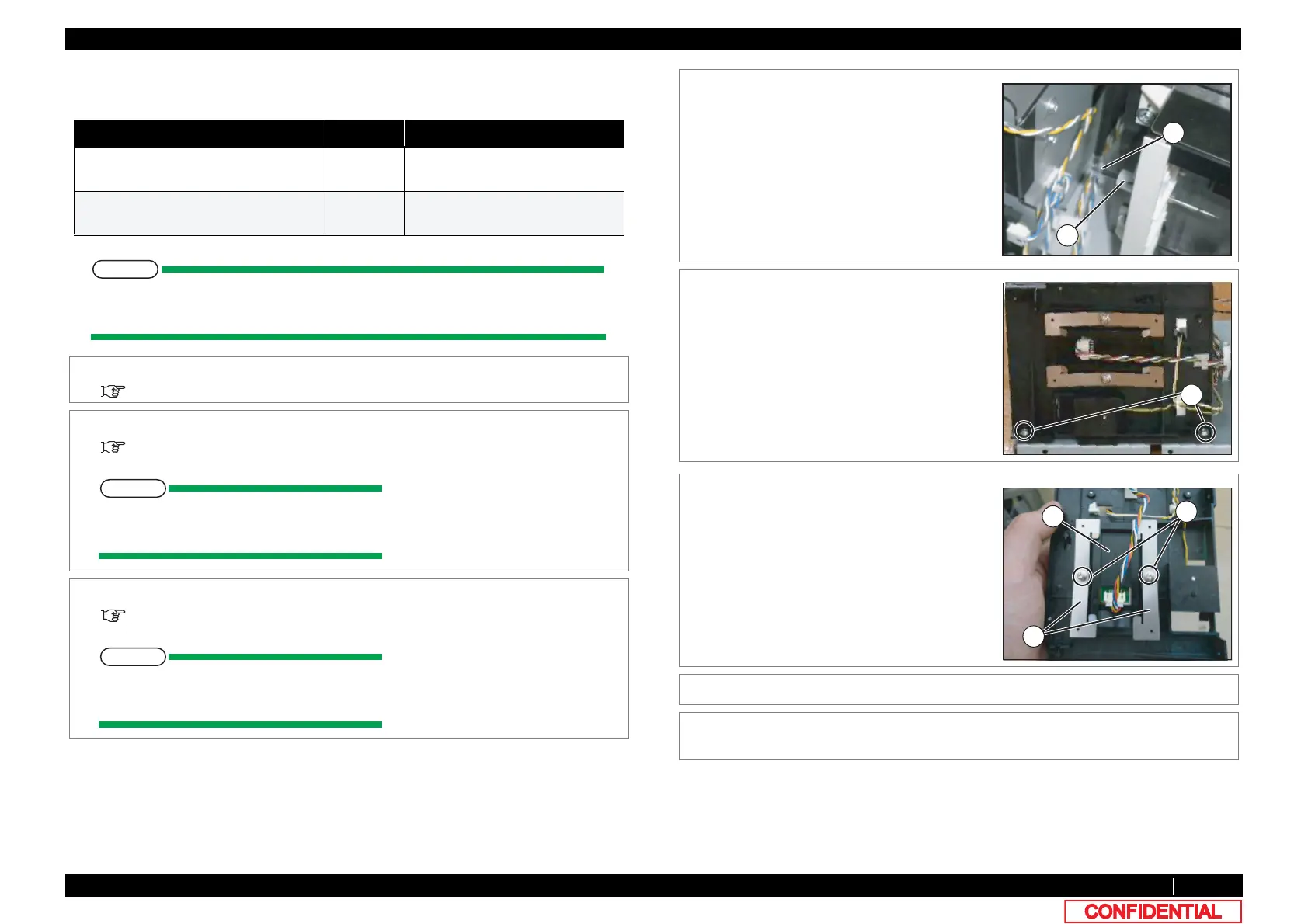

3.11.5 Replacing Holder Pressure Spring
● Tools & Jigs & Maintenance part
㨀㧵㧼
The replacement procedure is common to both R side and L side.
The procedure described here is that of R side.
Name No. Remarks
Holder Pressure Spring DF-43967
Exploded View IH R
Exploded View IH L
Phillips screwdriver No.2 Generic
products
-
1 Removing Side Cover (R or L).
3.2.2 Removing Side Cover
2 Removing Pump Stay.
3.11.1 Removing Pump stay
NOTE
This procedure is needed for replacing R-
side.
3 Removing Heater Board Stay.
3.11.2 Removing Heater Board Stay
NOTE
This procedure is needed for replacing L-
side.
4 Loosen the joint screw and remove the ink
tube (fitting) from Cartridge holder.
A : Joint Screw
B : L Fitting
5 Remove the screws (2 pieces) retaining
Cartridge Holder to Cartridge Base.
A : Tapping screw M3ｘ12S Tight cup
6 Remove the screws (2 pieces) retaining
Holder Pressure Spring (2 pieces).
A : Holder Pressure Spring
B : P Tight cupM3ｘ6
C : INK ID Board Assy
7 Replace Holder Pressure Spring.
8 To reassemble unit, reverse the removal
procedure.
A
B
A
A
B
C
