4.3.10 Board Replacement Wizard 204
4.3 Working with MUTOH Service Assistance Software VJ628XE-M-00

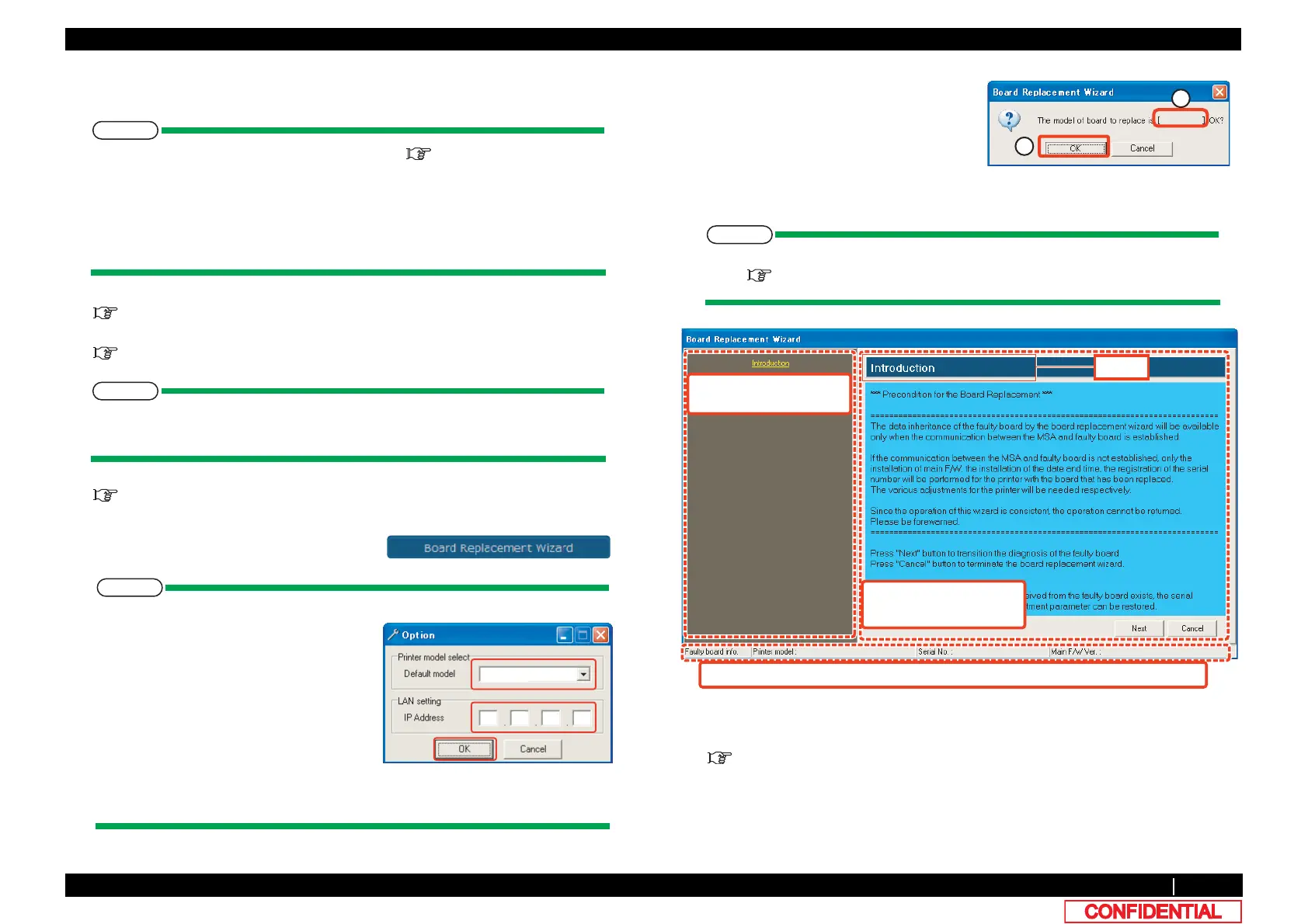

4.3.10 Board Replacement Wizard
This section describes Board replacement wizard which support replacing MAIN board Assy.
NOTE
• About mounting alternative MAIN board, refer to "3.5.10Replacing MAIN Board
• When completing Board replacement wizard normally, Printer Identification DATA
is saved automatically at the end of the wizard.Make sure to upload saved mpi file
to MB-web server, then update the Printer Identification DATA.
If you fail to update, printer user does not receive services such as Smart/C.
• Install the latest firmware using the latest MSA.
1 Start up the printer in board manager mode.
"(6-b)Board Manager Mode
2 Connect PC to the printer.
"(8)Computer IP Address Setting
NOTE
When using Board replacement wizard, set the Ip address of PC to [192.168.1.1] and
set the IP address of printer to[192.168.1.253].
3 Start up the MSA in Technician mode.
"(12)Switching to Technician Mode
4 Select the［Board Replacement Wizard].
NOTE
• Before selecting [Board replacing
wizard], it is necessary that the printer
model for board replacement is selected
in MSA.
• After confirming the printer model for
board replacement is correct on [Printer
model] of [Option] of [Setup], selected
[Board replacement wizard].
• On the same window, confirm that [LAN
setting ] is set to [192.168.1.253].
• Confirm that the printer is running in
board manager mode.
5 Confirm the printer model for board
replacement ① .
Then click ［OK］② .
6 After displaying Board replacement wizard window, work by messages.
NOTE
Work contents are different by the conditions of malfunction board and alternative
board. "(1)Flow Chart of Board Replacement Wizard
7 After finishing the wizard, doing various adjustment works to complete the replacing
MAIN board Assy.
"(2)List of adjustment operations after replacing the board for each board replacement
pattern
1
2
Display operating index
sequentially.
The message and the button
according to present work
are displayed one by one.
Title
After Establishing the communication with faulty board,displaying the information of the board.
