MUTOH Valuevet VJ-628X User Manual

3.6.2 Replacing CR Belt 93
3.6 Replacing Y Rail part VJ628XE-M-00

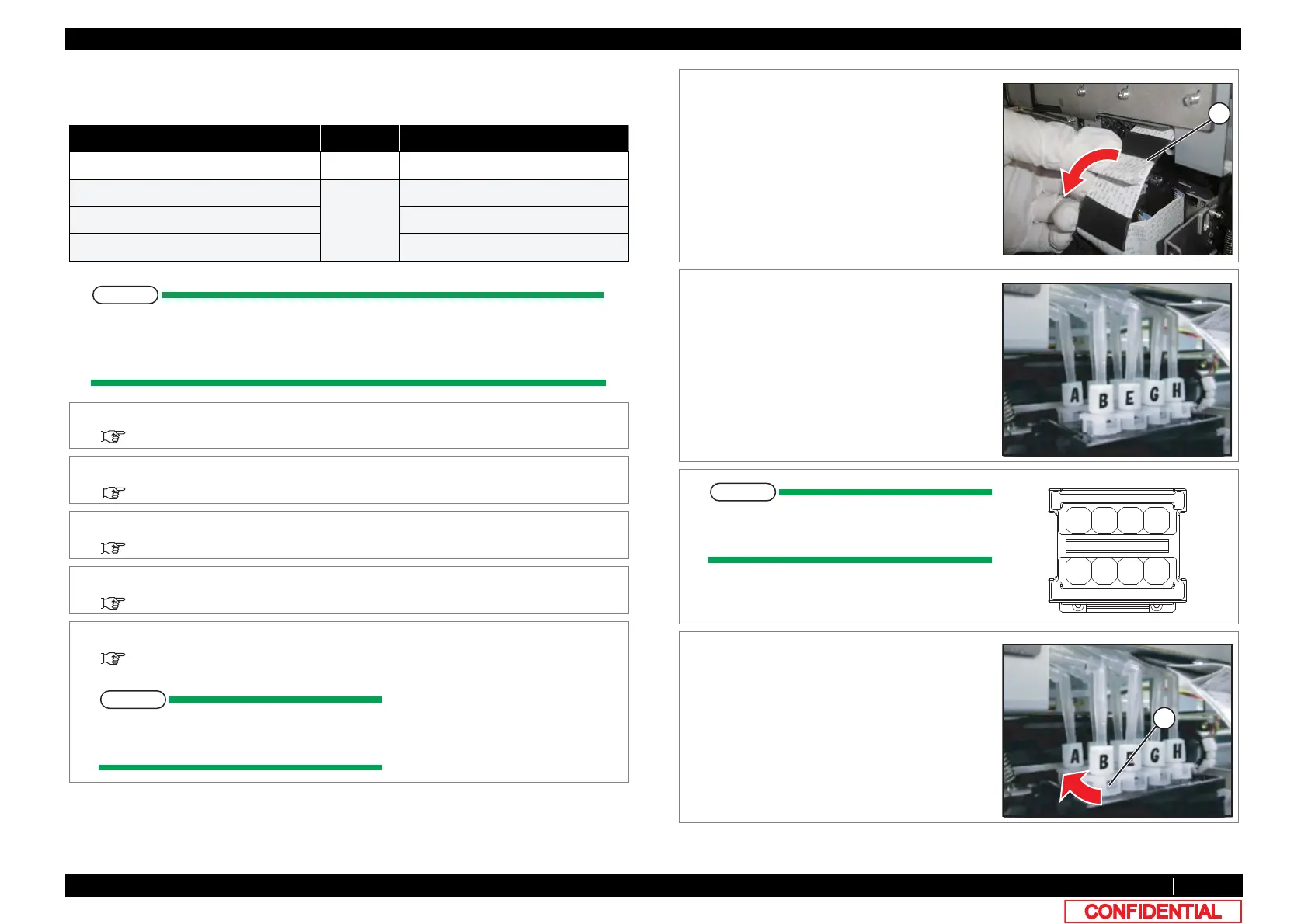

3.6.2 Replacing CR Belt
● Tools & Jigs & Maintenance part
NOTE
This section describes the procedure to replace the maintenance part,CR Belt
A1_Assy.
In this section, it is reffered to as CR Belt.
Name No. Remarks
CR Belt A1Assy DF-49044 Exploded View Y Rail Assy
Phillips screwdriver No.2 Generic
products
-
Thread locker -
Bubble wrapping -
1 Remove Top Cover.
3.2.1 Removing Top Cover
2 Remove R Side Cover and L Side Cover.
3.2.2 Removing Side Cover
3 Remove CR Board Cover.
3.8.3 Removing CR Board Cover
4 Remove Carriage Cover.
3.8.2 Removing Carriage Cover
5 Remove CR Board.
3.8.4 Replacing CR Board
NOTE
Place the removed CR board on an
bubble wrapping.
6 Pull out Head FFC to the front.
A : Head FFC
7 Mark on all the Joint screws.
NOTE
Mark the place to which Tube is attached.
（ABCDEFGH)
8 Turn Connector Valve Head 45 degrees,
release the lock, and pull it out.
A : Connector Valve Head
A
#
$
&
%
'
(
) *
A
