MUTOH Valuevet VJ-628X - Replacing T Fence

3.6.8 Replacing T Fence 101
3.6 Replacing Y Rail part VJ628XE-M-00

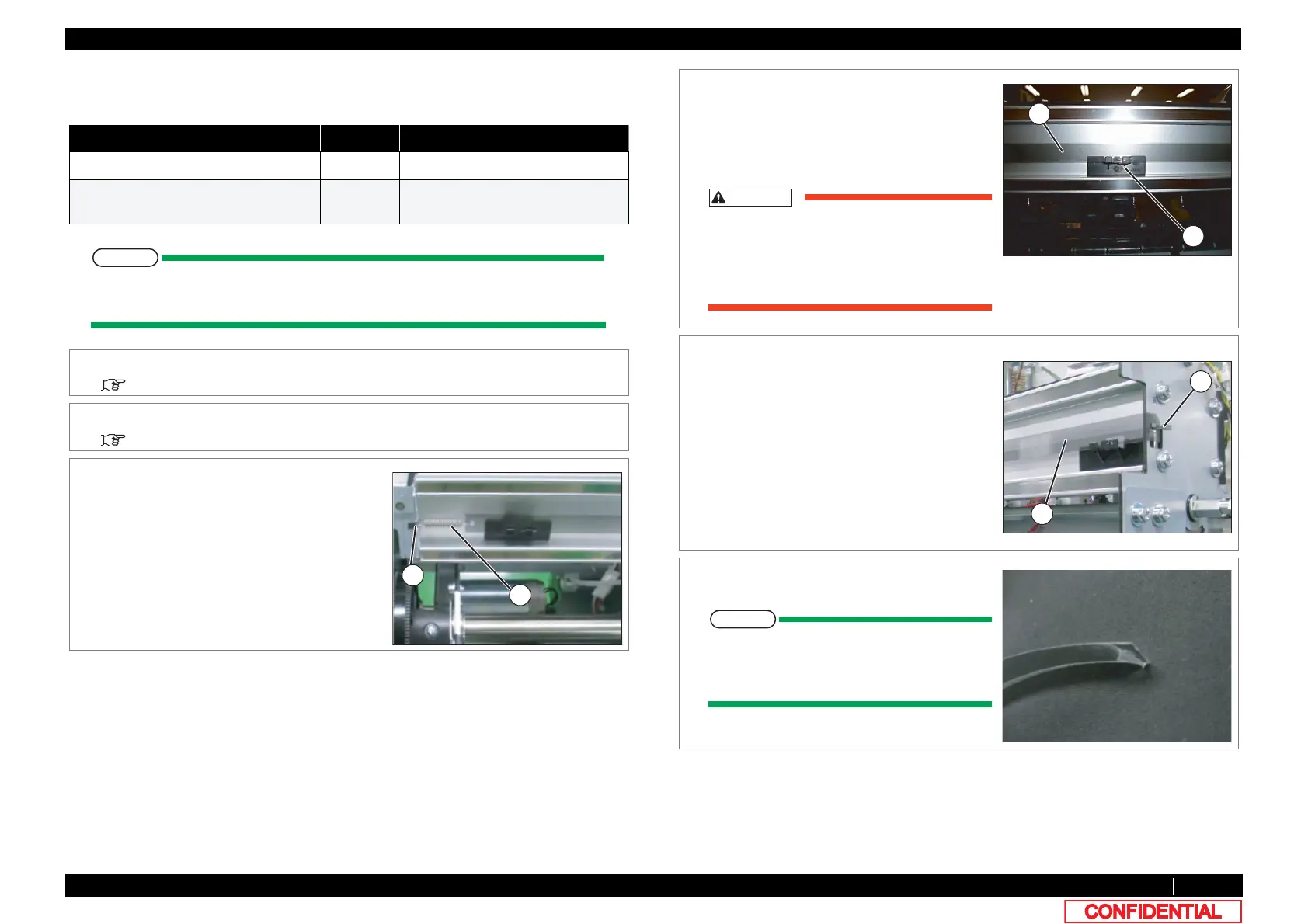

3.6.8 Replacing T Fence
● Tools & Jigs & Maintenance part
NOTE
This section describes the procedure to replace the maintenance part,T Fence
A1_Assy.In this section, it is reffered to as T Fence.
Name No. Remarks
T Fence A1_Assy DF-49024 Exploded View Y Rail Assy
Phillips screwdriver No.2 Generic
products
-
1 Removing R Side Cover.
3.2.2 Removing Side Cover
2 Move Carriage to the top of Platen.
3.8.1 Releasing Carriage Lock
3 Remove T Fence Spring (L side) from T Fence
Spring Hook.
A : T Fence Spring Hook
B : T Fence Spring
B
A
4 Remove T Fence from Fence Guide (3
pieces).
A : Fence Guide
B : T Fence
CAUTION
• Do not pull T Fence by force; the Fence
Guide can be easily broken.
• Pay attention not to damage or break T
Fence.
5 Remove T Fence from Hook.
A : T Fence
B : Hook
6 Replace T Fence.
NOTE
T fence as a maintenance part has a
sticker on it. Remove the sticker
completely before using it.
A
B
A
B
