MUTOH Valuevet VJ-628X User Manual

3.8.10 Replacing Cutter Solenoid Assy 125
3.8 Replacing Cursor section VJ628XE-M-00

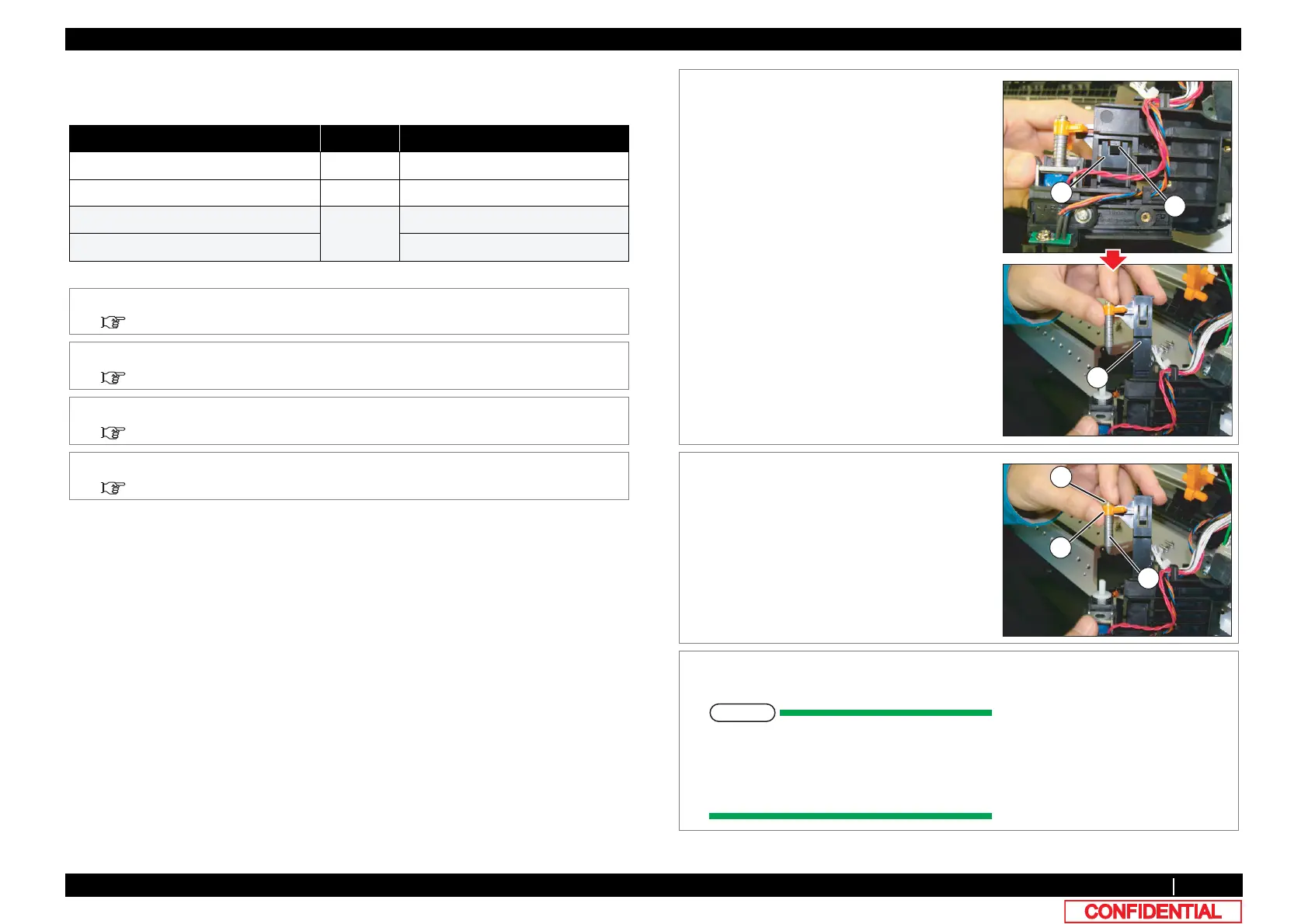

3.8.10 Replacing Cutter Solenoid Assy
● Tools & Jigs & Maintenance part
Name No. Remarks
Cutter Solenoid Assy DF-42234 Exploded View Cursor
Cutter Solenoid Spring Assy DF-49062 Exploded View Cursor
Phillips screwdriver No.2 Generic
products
-
slotted screwdriver -
1 Removing R Side Cover.
3.2.2 Removing Side Cover
2 Remove Carriage Cover.
3.8.2 Removing Carriage Cover
3 Remove CR Board Cover.
3.8.3 Removing CR Board Cover
4 Remove Cutter Holder Assy.
3.8.3 Removing CR Board Cover
5 Push the tab of Lock Kicker with a driver, etc.
to remove Lock Kicker.
A : the tab of Lock Kicker
B : Lock Kicker
6 Remove the screw retaining Cutter Cap.
7 Remove Plunger.
A : Pan-head screw with spring washer and
flat washer M3ｘ6
B : Cutter Cap
C : Plunger（Solenoid Spring)
8 Replace Plunger.
NOTE
When replacing Cutter Solenoid spring
itself, replace it at this stage.To
reassemble the unit, reverse the removal
procedure.
A
B
B
A
B
C
