MUTOH Valuevet VJ-628X - Replacing Roller Arm Assy

3.8.13 Replacing Roller Arm Assy 129
3.8 Replacing Cursor section VJ628XE-M-00

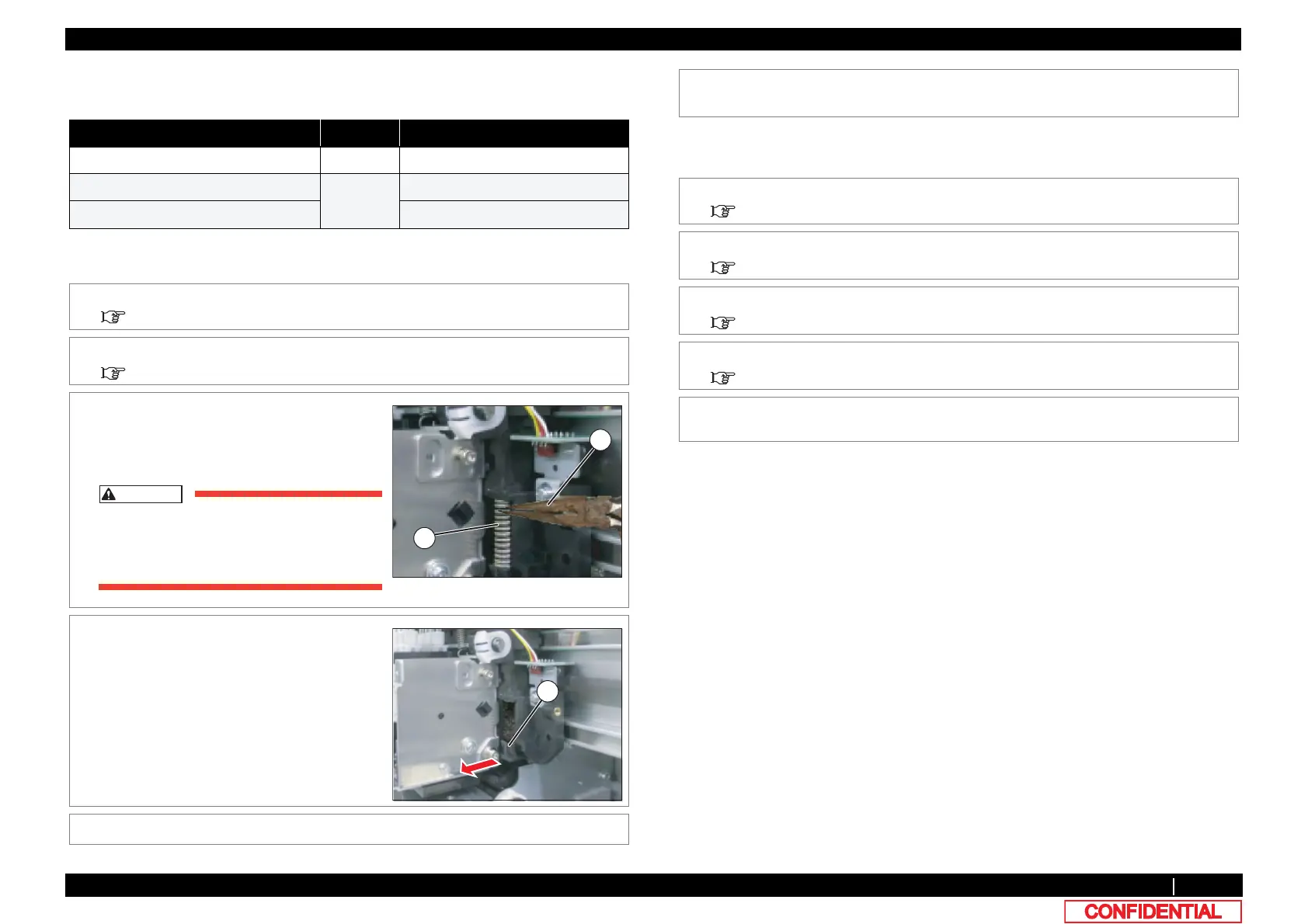

3.8.13 Replacing Roller Arm Assy
● Tools & Jigs & Maintenance part
(1) R side
(2) L side
Name No. Remarks
Roller Arm Assy DF-49065 Exploded View Cursor
Phillips screwdriver No.2 Generic
products
-
longnose pliers -
1 Release the Carriage Lock.
3.8.1 Releasing Carriage Lock
2 Remove Carriage Cover.
3.8.2 Removing Carriage Cover
3 Replacing Cursor Roller Spring.
A : Cursor Roller Spring
A : longnose pliers
CAUTION
The tension of the spring is strong.
In the case of removal, the spring should
jump out and be careful not injured.
4 Remove Cursor Roller Arm.
（Pull it out to forward.）
A : Cursor Roller Arm
5 Remove Roller Arm Assy.
A
B
A
6 To reassemble unit, reverse the removal
procedure.
1 Release the Carriage Lock.
3.8.1 Releasing Carriage Lock
2 Remove Carriage Cover.
3.8.2 Removing Carriage Cover
3 Remove CR Board Cover.
3.8.3 Removing CR Board Cover
4 Remove Cutter Holder Assy.
3.8.3 Removing CR Board Cover
From this point on, do the same work as
the (1) R side.
