MUTOH Valuevet VJ-628X User Manual

3.6.1 Replacing CR Motor 91
3.6 Replacing Y Rail part VJ628XE-M-00
3.6 Replacing Y Rail part

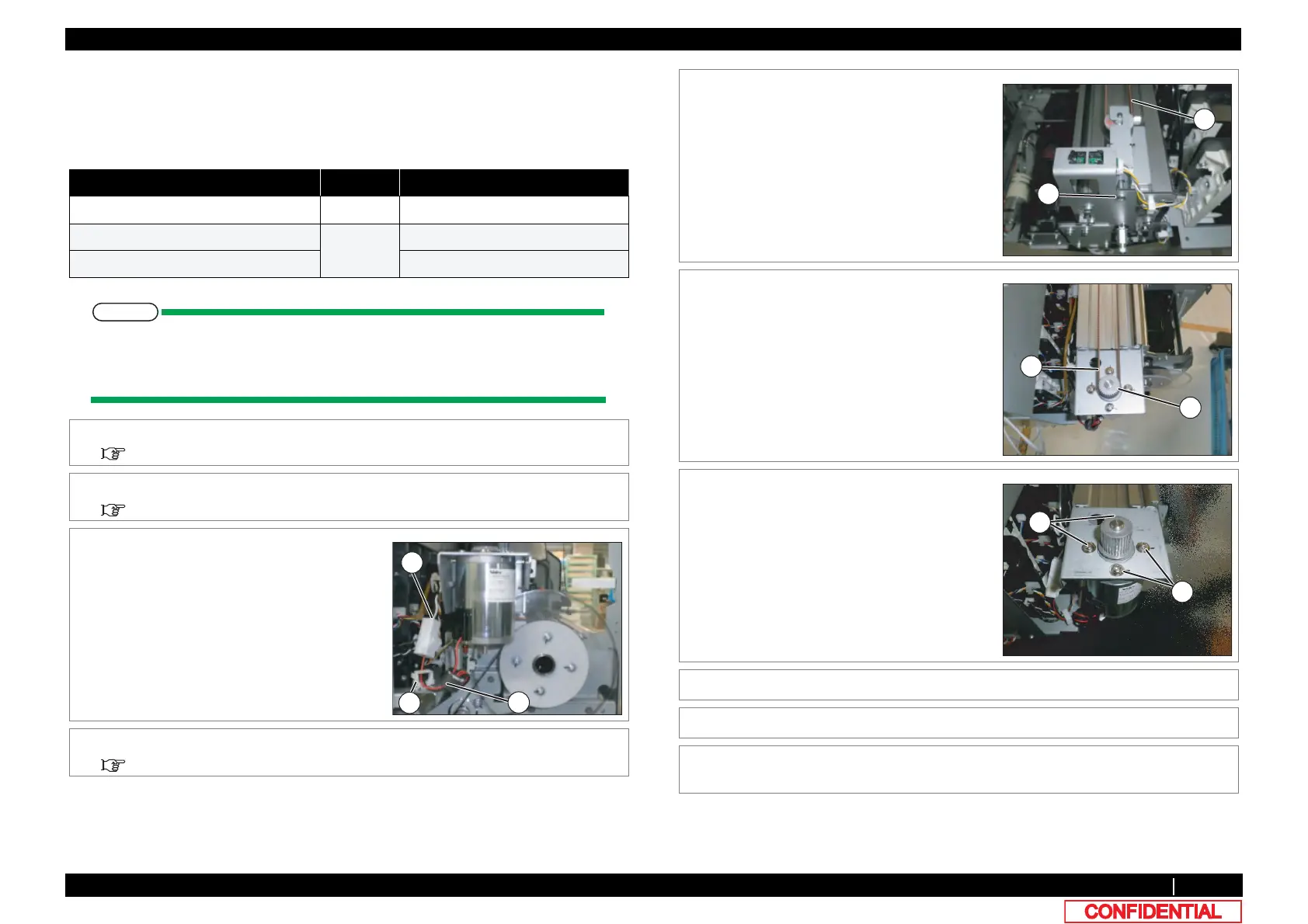

3.6.1 Replacing CR Motor
● Tools & Jigs & Maintenance part
NOTE
This section describes the procedure to replace the maintenance part, CR Motor
Assy.
In this section, it is referred to as CR Motor.
Name No. Remarks
CR Motor Assy DG-44693 Exploded View Y Rail Assy
Phillips screwdriver No.2 Generic
products
-
Thread locker Three bond 1401
1 Remove Top Cover.
3.2.1 Removing Top Cover
2 Remove R Side Cover and L Side Cover.
3.2.2 Removing Side Cover
3 Remove the cable of CR Motor from CR Motor
relay Assy from the clamp.
A : CR Motor Relay Assy
B : the cable of CR Motor
C : clamp
4 Move Carriage to the top of Platen.
3.8.1 Releasing Carriage Lock
B
A
C
5 Loosen the adjusting screw (1 piece), and the
loosen tension of CR Belt.
A : Pan head small screwM4ｘ35
B : CR Belt
6 Remove CR Belt from CR Motor.
A : CR Belt
B : CR Motor
7 Remove the screws (4 pieces) retaining CR
Motor.
A : Cup screw M4×8 Ni-3
8 Replace CR Motor.
9 Assemble CR Belt to CR Motor.
10 Adjust so that a tension adjustment plate is
located in a marking part.
B
A
B
A
A
A
