3.11.9 Replacing Circulation Pump Relay Cable 175
3.11 Replacing IH VJ628XE-M-00

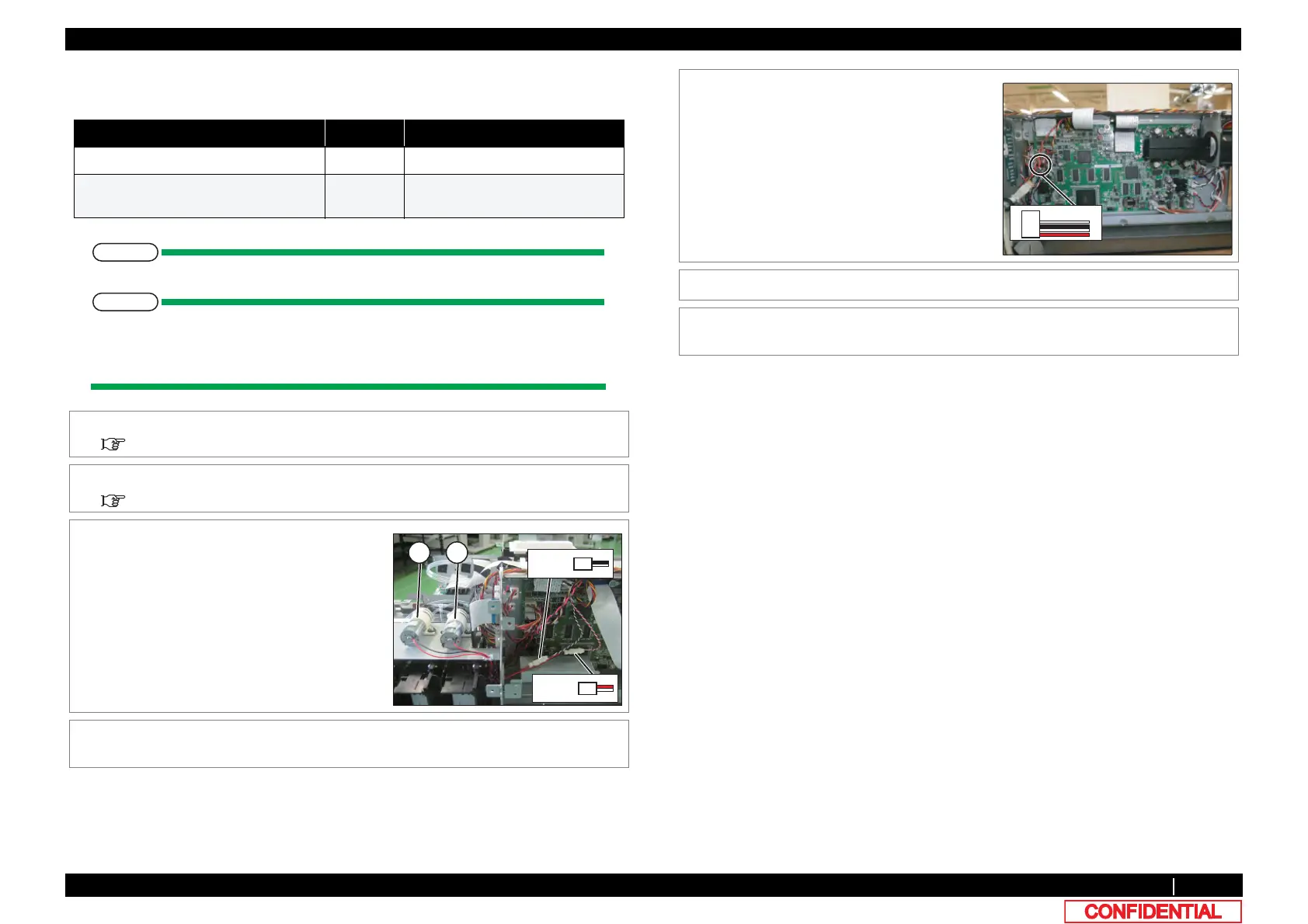

3.11.9 Replacing Circulation Pump Relay Cable
● Tools & Jigs & Maintenance part
㨀㧵㧼
㨀㧵㧼
This section describes the procedure to replace the maintenance part, Circulation
Pump Relay Cable Assy..
In this section, it is referred to as Circulation pump Relay Cable Assy.
Name No. Remarks
Circulation Pump Relay Cable Assy DG-45567 Exploded View “Circulation Pump”
Phillips Screwdriver No.2 generic
product
-
1 Remove Top Cover.
3.2.1 Removing Top Cover
2 Removing R Side Cover.
3.2.2 Removing Side Cover
3 Remove the circulation pump relay cable.
A : Circulation Pump1
B : Circulation Pump2
4 Remove the circulation pump relay cable from
the clamps on the path.
A B
Pump1
Pump2
5 Remove the circulation pump relay cable from
the main board.
6 Replace the circulation pump relay cable.
7 To reassemble unit, reverse the removal
procedure.
-
