3.6.3 Replacing CR Motor Relay Assy 96
3.6 Replacing Y Rail part VJ628XE-M-00

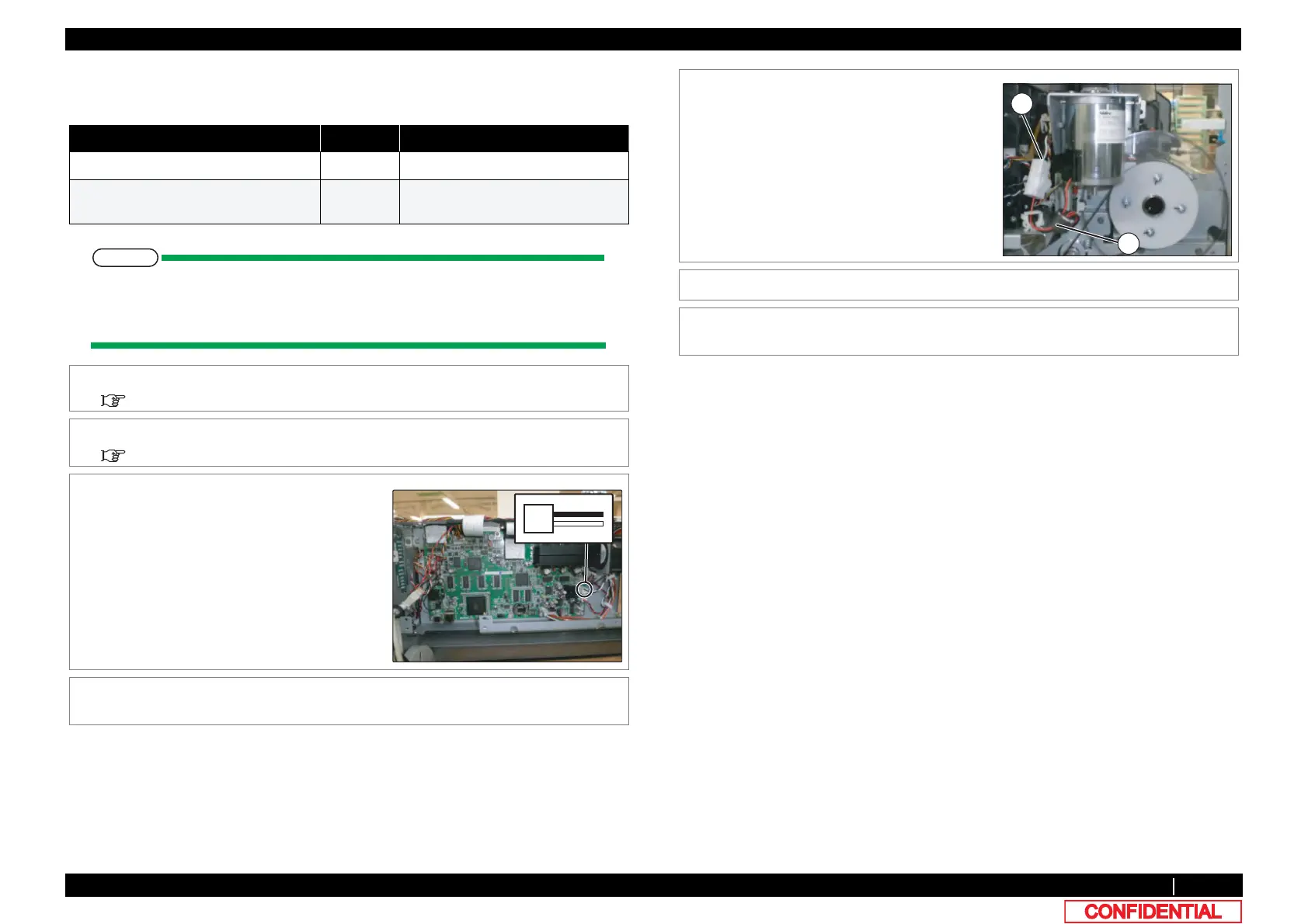

3.6.3 Replacing CR Motor Relay Assy
● Tools & Jigs & Maintenance part
NOTE
This section describes the procedure to replace the maintenance part, CR Motor
Relay A1_Assy.
In this section, it is reffered to as CR Motor Relay Assy
.
Name No. Remarks
CR Motor Relay A1Assy DF-48991 Exploded View Y Rail Assy
Phillips screwdriver No.2 Generic
products
-
1 Remove Top Cover.
3.2.1 Removing Top Cover
2 Removing L Side Cover.
3.2.2 Removing Side Cover
3 Remove CR Motor Relay Assy from MAIN
Board.
4 Remove CR Motor Relay Cable from clamps
on the path.
J17
5 Remove CR Motor Relay Cable from the cable
of CR Motor.
A : CR Motor Relay Assy
B : the cable of CR Motor
6 Replace CR Motor Relay Assy.
7 To reassemble unit, reverse the removal
procedure.
B
A
