3.5.6 Replacing AC Inlet 81
3.5 Replacing Board Base section VJ628XE-M-00

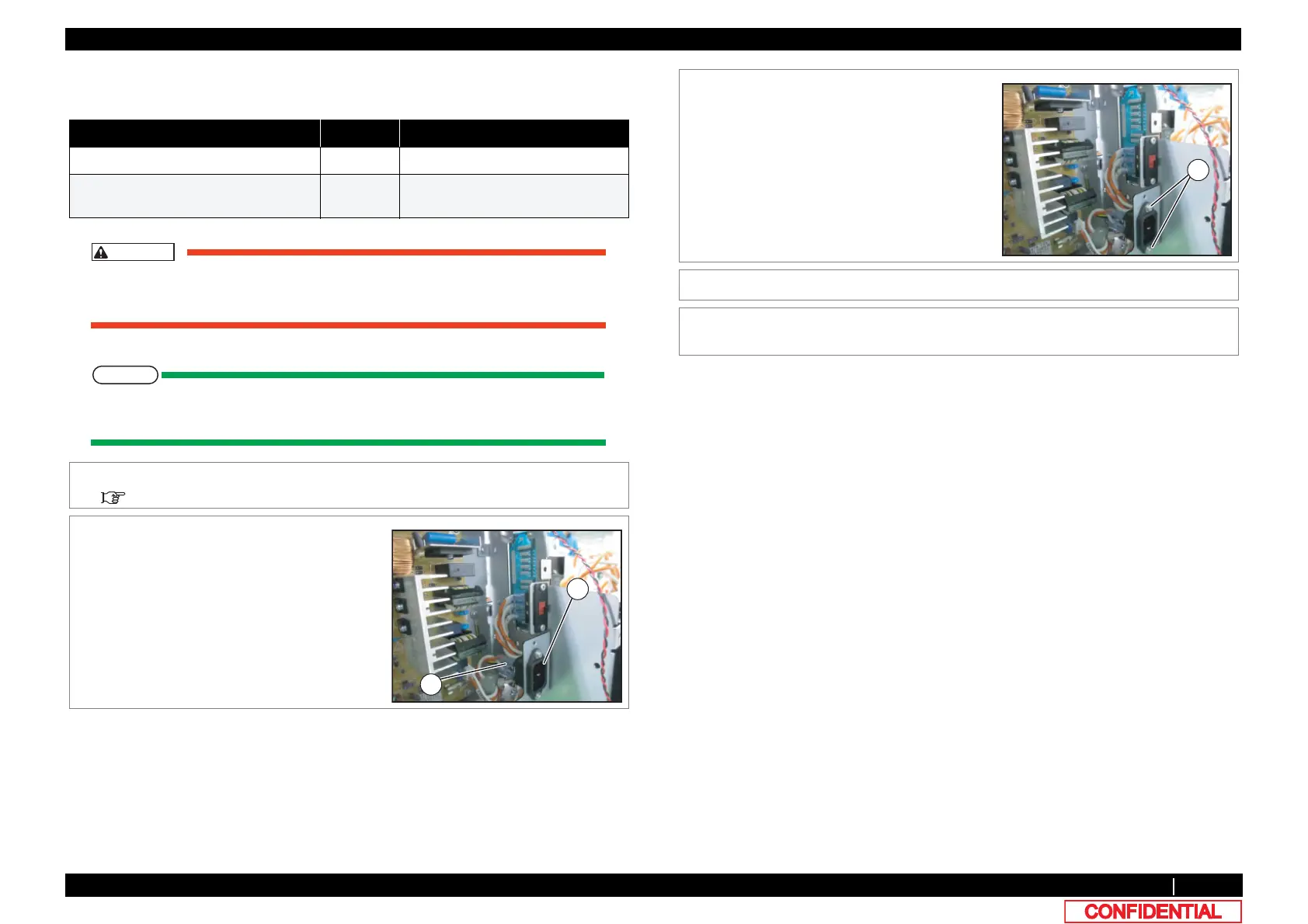

3.5.6 Replacing AC Inlet
● Tools & Jigs & Maintenance part
Unplug Power cable set before replacing AC inlet. There may be a risk of electric
shock by standby electricity.
This section describes the procedure to replace the maintenance part, AC Inlet
Assy.In this section, it is referred to as AC Inlet.
Name No. Remarks
AC Inlet Assy DG-43177 Exploded View Board Box
Phillips screwdriver No.2 Generic
products
-
1 Remove Top Cover.
3.2.1 Removing Top Cover
2 Remove the connectors (3 pieces) from AC
Inlet.
A : connector
B : AC Inlet
3 Remove the screws (2 pieces).
A : Countersunk head screw M3ｘ6
4 Replace AC Inlet.
5 To reassemble unit, reverse the removal
procedure.
To Next Page
