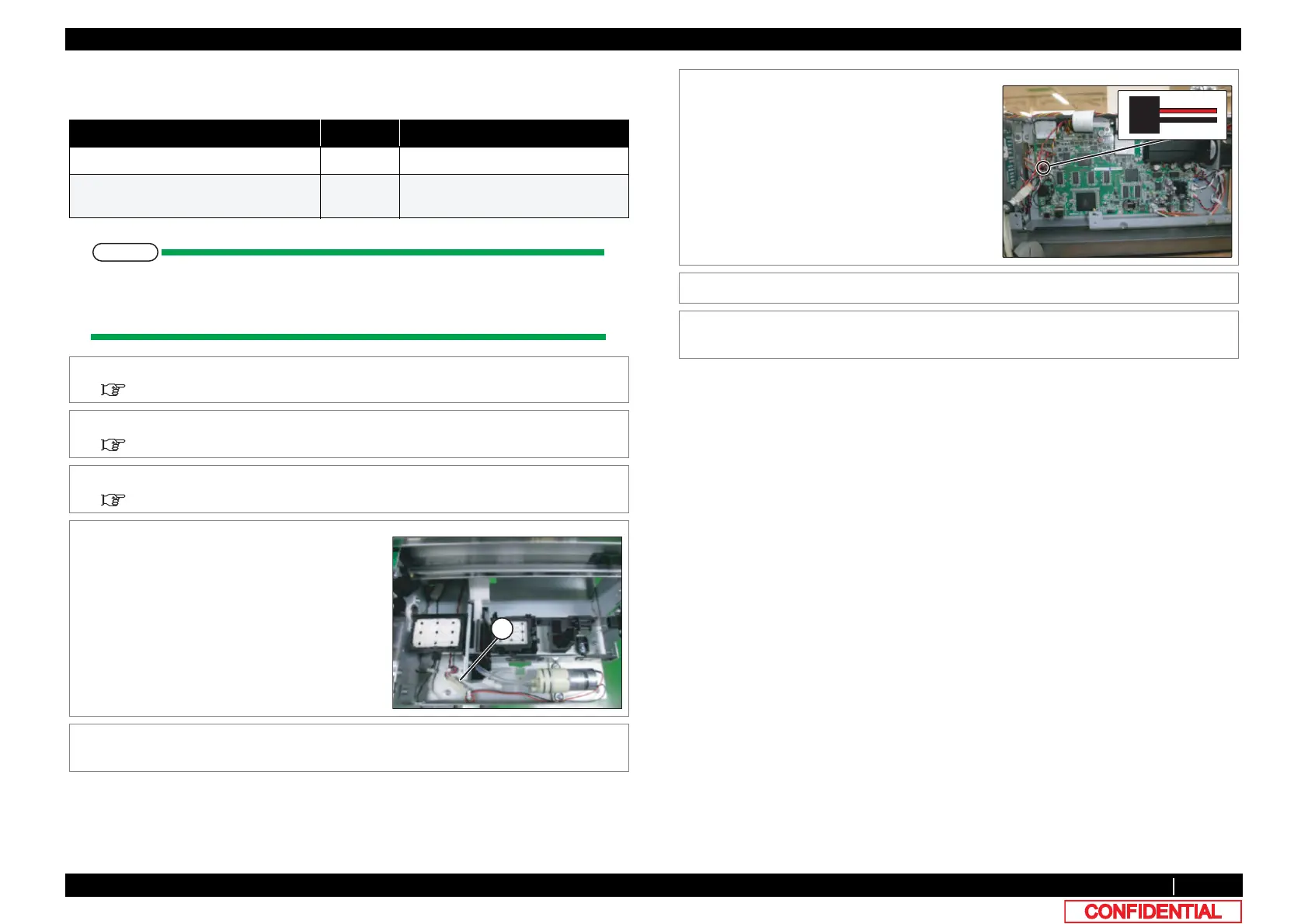

3.10.2 Replacing Pump Motor Cable
● Tools & Jigs & Maintenance part
This section describes the procedure to replace the maintenance part, Vacuum FAN
Relay 2 Assy.
In this section, it is referred to as Pump Motor Cable.
Name No. Remarks
Vacuum FAN Relay 2 Assy DF-48995 Exploded View Maintenance
Phillips screwdriver No.2 Generic
products
-
1 Removing R Side Cover.
3.2.2 Removing Side Cover
2 Remove Top Cover.
3.2.1 Removing Top Cover
3 Move Carriage to the left side of Origin.
3.8.1 Releasing Carriage Lock
4 Remove Pump Motor Cable from Waste Fluid
Pump.
A : Connecting point
5 Remove Pump relay cable from the clamps on
the path.
6 Remove Pump Motor Cable from MAIN
Board.
7 Replacing Pump Motor Cable.
8 To reassemble unit, reverse the removal
procedure.
To Next Page
