3.4.3 Replacing Adsorption Fan 74
3.4 Replacing Frame section VJ628XE-M-00

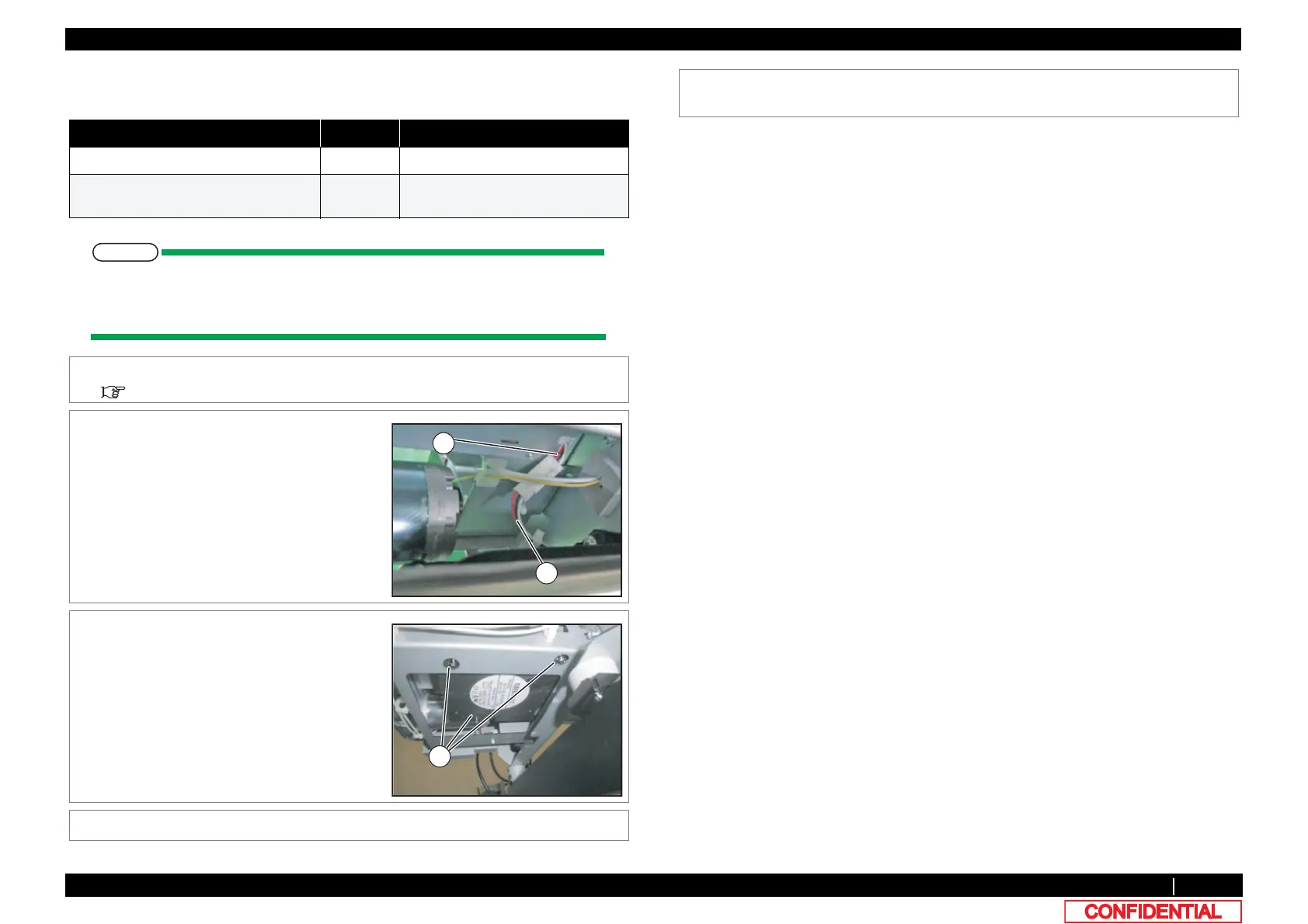

3.4.3 Replacing Adsorption Fan
● Tools & Jigs & Maintenance part
㨀㧵㧼
This section describes the procedure to replace the maintenance part, Adsorption
Fan Assy.
In this section, it is referred to as Adsorption Fan.
Name No. Remarks
Adsorption Fan Assy DG-42988 Exploded View Frame L•Scroller
Phillips screwdriver No.2 Generic
products
-
1 Removing L Side Cover.
3.2.2 Removing Side Cover
2 Remove Adsorption Fan Cable from
Adsorption Fan.
A : the cable of Adsorption Fan
B : Adsorption Fan Cable
3 Remove the screws (3 pieces) retaining
Adsorption Fan.
A : Pan-head screw with spring washer and
flat washer (polished) M3x40 Ni-3
4 Replace Adsorption Fan.
A
B
A
5 To reassemble unit, reverse the removal
procedure.
