3.8.8 Replacing PG Origin Sensor Cable 123
3.8 Replacing Cursor section VJ628XE-M-00

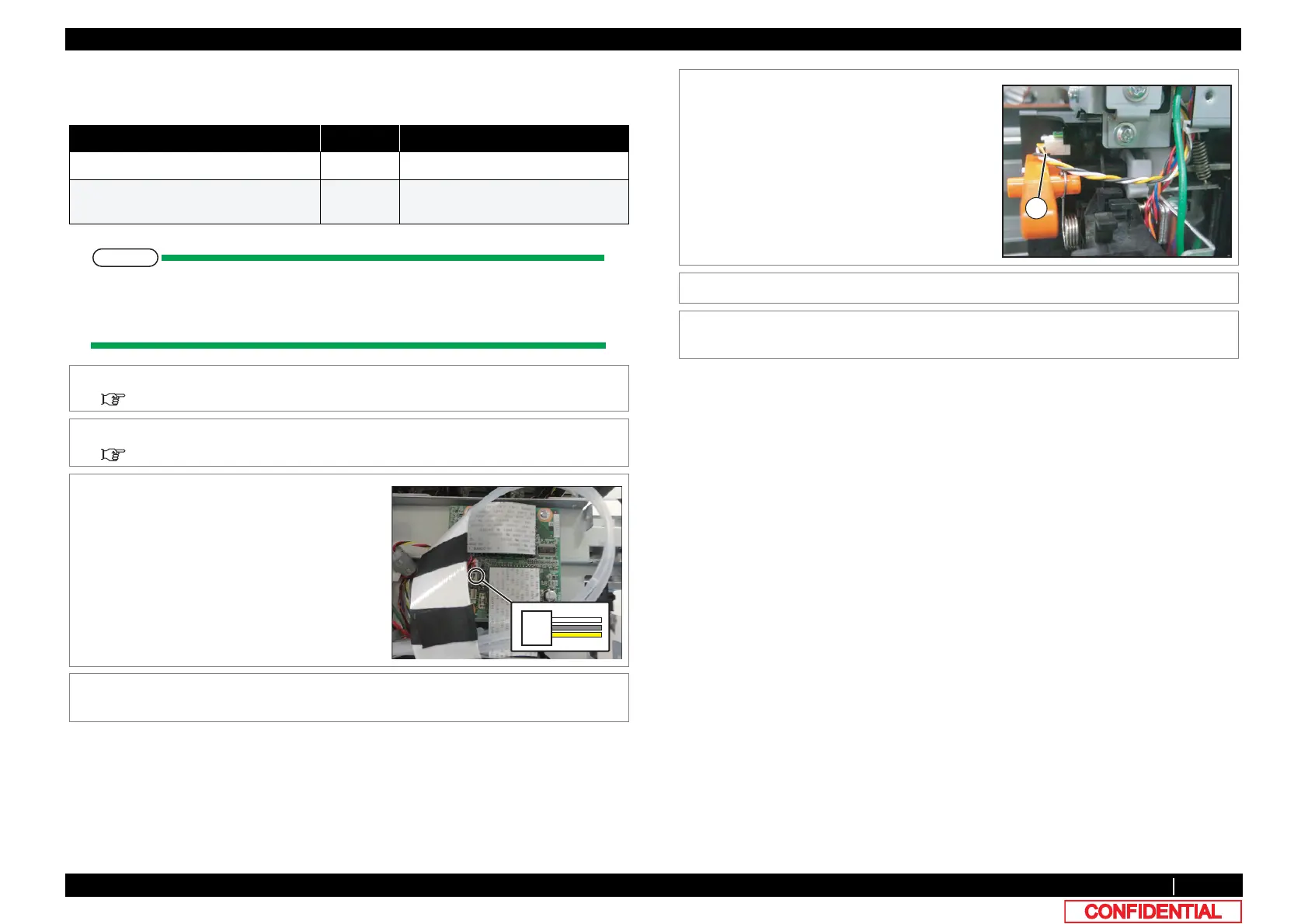

3.8.8 Replacing PG Origin Sensor Cable
● Tools & Jigs & Maintenance part
This section describes the procedure to replace the maintenance part,PG Origin
Sensor Cable.
In this section, it is reffered to as PG Origin Sensor Cable.
Name No. Remarks
PG Origin Sensor Cable Assy DG-43315 Exploded View Cursor
Phillips screwdriver No.2 Generic
products
-
1 Removing R Side Cover.
3.2.2 Removing Side Cover
2 Remove CR Board Cover.
3.8.3 Removing CR Board Cover
3 Remove PG Origin Sensor Cable from CR
Board.
4 Remove PG Origin Sensor Cable from the
clamps on the path.
5 Remove PG Origin Sensor Cable from PG
Origin Sensor.
A : PG Origin Sensor Cable
6 Replace PG Origin Sensor Cable.
7 To reassemble unit, reverse the removal
procedure.
