MUTOH Valuevet VJ-628X - Replacing Lever Sensor Cable

3.6.6 Replacing Lever Sensor Cable 99
3.6 Replacing Y Rail part VJ628XE-M-00

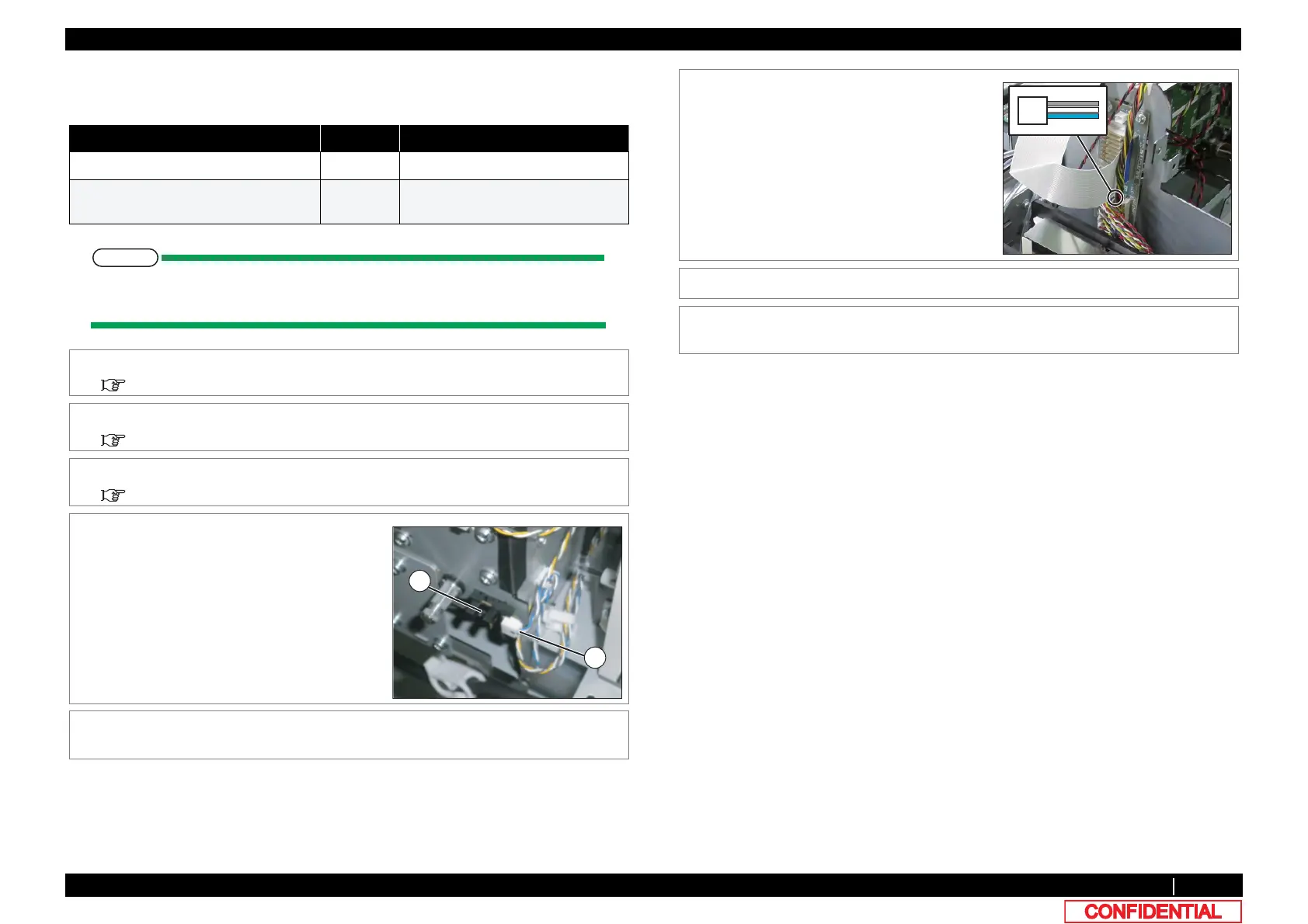

3.6.6 Replacing Lever Sensor Cable
● Tools & Jigs & Maintenance part
NOTE
This section describes the procedure to replace the maintenance part, Lever Sensor
Cable Assy.In this section, it is reffered to as Lever Sensor Cable.
Name No. Remarks
Lever Sensor Cable Assy DG-44692 Exploded View Y Rail Assy
Phillips screwdriver No.2 Generic
products
-
1 Removing R Side Cover.
3.2.2 Removing Side Cover
2 Removing Pump Stay.
3.11.1 Removing Pump stay
3 Move Carriage to the top of Platen.
3.8.1 Releasing Carriage Lock
4 Remove Lever Sensor Cable from Lever
Sensor.
A : Lever Sensor Cable
B : Lever Sensor
5 Remove Lever Sensor Cable from the clamps
on the path.
A
B
6 Remove Lever Sensor Cable from JUNCTION
Board.
7 Replace Lever Sensor Cable.
8 To reassemble unit, reverse the removal
procedure.
J15
