MUTOH Valuevet VJ-628X - Replacing Cover Switch Assy

3.3.2 Replacing Cover Switch Assy 68
3.3 Replacing Cover section VJ628XE-M-00

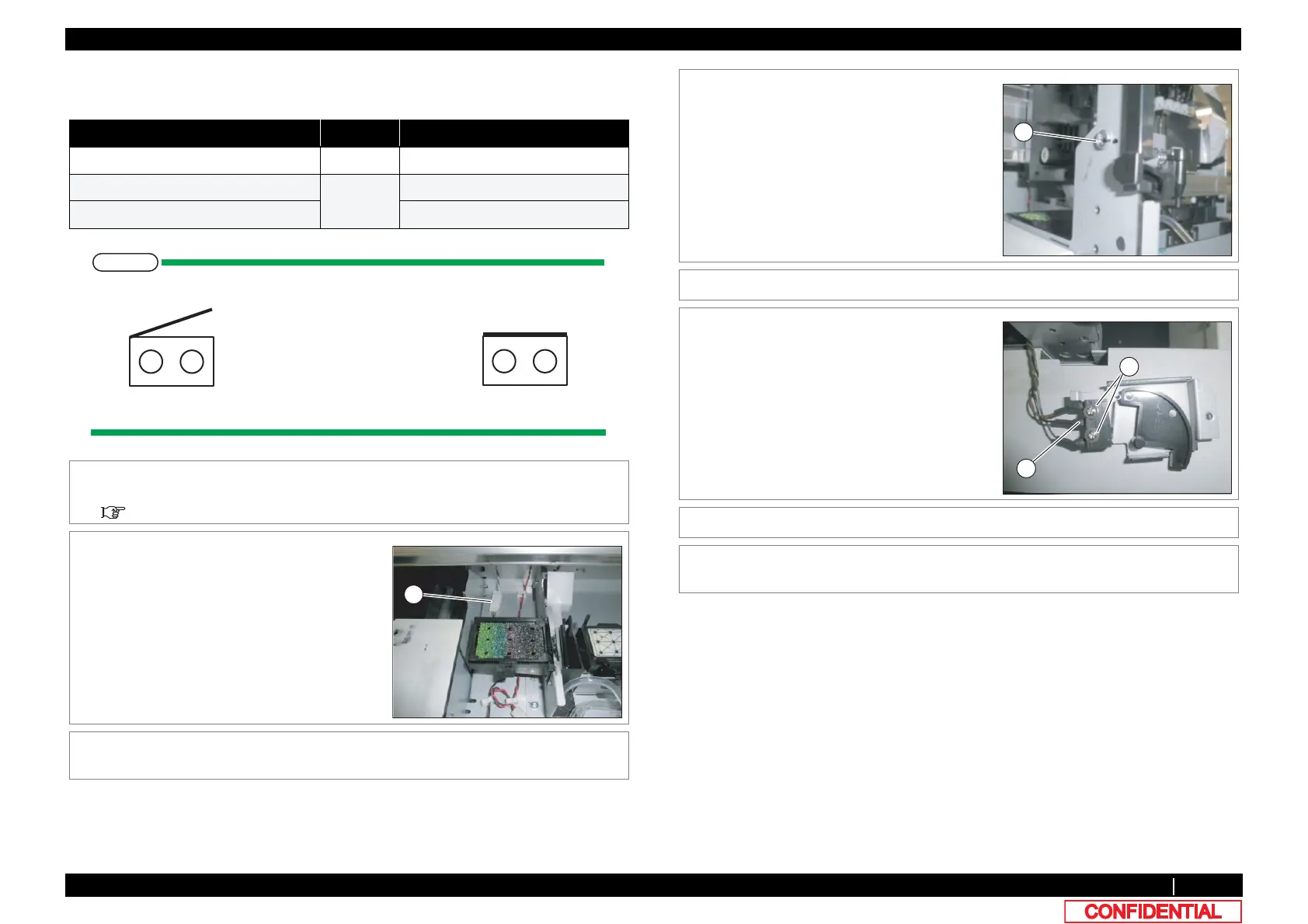

3.3.2 Replacing Cover Switch Assy
● Tools & Jigs & Maintenance part
NOTE
Cover switch Assy looks like the following.
Name No. Remarks
Cover Switch Assy DG-42956 Exploded View Cover
Phillips screwdriver No.2 Generic
products
-
Phillips screwdriver No.1 -
1 Move Carriage to left (the opposite side of
origin).
3.8.1 Releasing Carriage Lock
2 Remove Cover R Cable Assy from Cover
switch Assy.
A : connecting point
3 Remove Cover switch Assy Cable from the
clamps on the path.
Open Closed
A
4 Remove the screw retaining SW Mounting
Plate.
A : Tapping screw M3ｘ6 S tight bind
5 Remove SW Mounting Plate.
6 Remove the screws (2 pieces) retaining Cover
Switch Assy.
A : Pan-head screw with spring washer and
flat washer (polished）M2ｘ12Ni-3
B : Cover Switch Assy
7 Replace Cover switch Assy.
8 To reassemble unit, reverse the removal
procedure.
A
A
B
