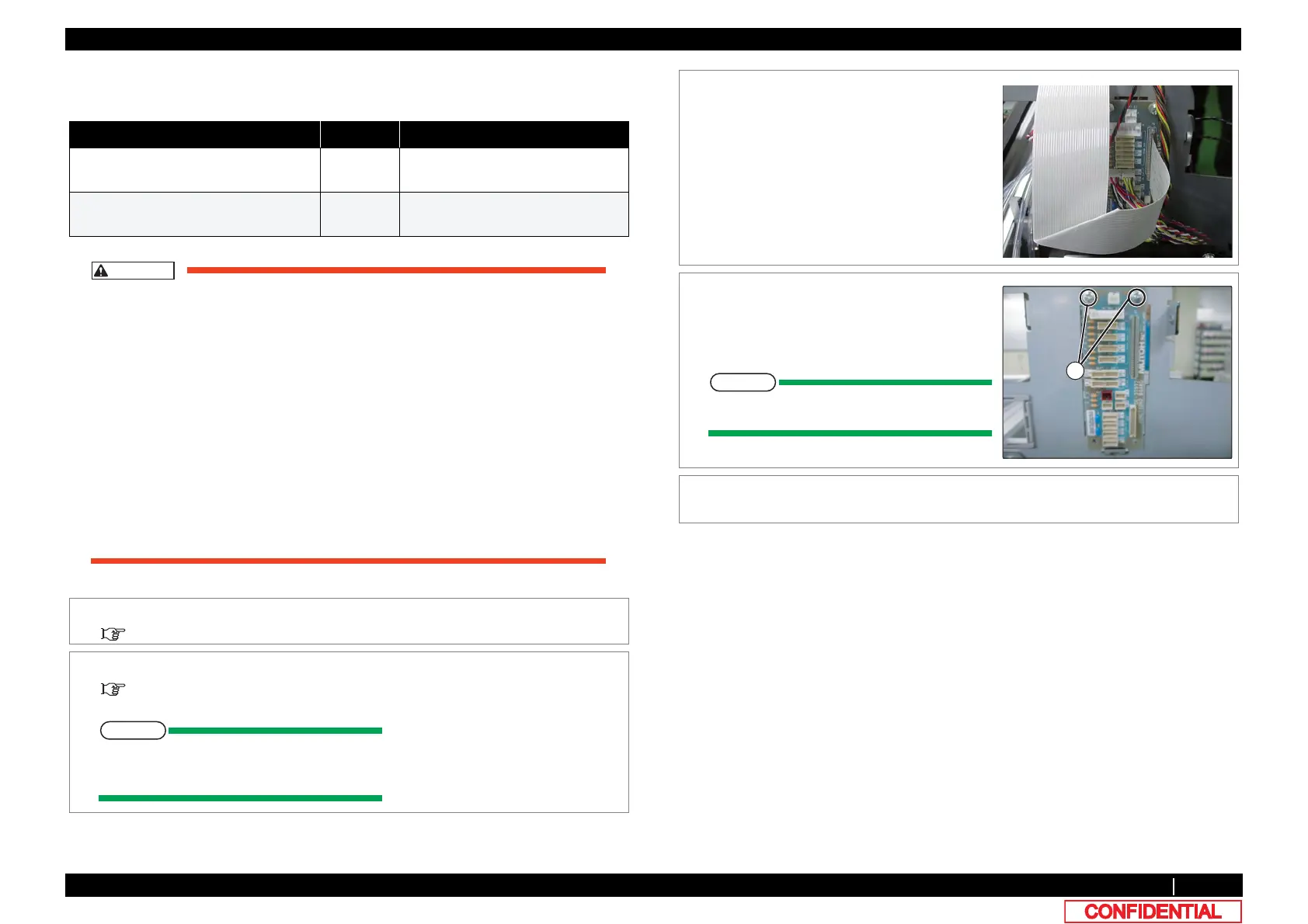

3.5.11 Replacing JUNCTION Board 87
3.5 Replacing Board Base section VJ628XE-M-00
3.5.11 Replacing JUNCTION Board
 ● Tools & Jigs & Maintenance part
CAUTION
Before replacing Board Assy and pulling or pushing FFC type cables, unplug
Power cable and leave it for a while.
If operating with Power cable still plugged, Board may be damaged or operators
may get an electric shock by residual electric charge.
When you handle Circuit board, do not touch any elements on it with bare hands.
Doing so may cause electrostatic discharge and damage the elements.
Before plugging FFC, check the condition of FFC terminals (that the corners of
the terminals are not crooked and reinforcing plate is not peeled).
Plug/unplug FFC perpendicularly to the connector. Never plug/unplug it
obliquely. If plugged obliquely, it may damage/shorten/break terminals in
connectors, causing a breakdown of on-board devices.
Make sure to plug FFC all the way in the connector. After plugging it, make sure
that FFC and the connector terminals are not misaligned sideways and that FFC
is not plugged obliquely.
Name No. Remarks
JUNCTION2 Board DG-43396 Exploded View JUNCTION Board
R,L
Phillips screwdriver No.2 Generic
products
-
1 Removing R Side Cover.
3.2.2 Removing Side Cover
2 Removing Pump Stay.
3.11.1 Removing Pump stay
NOTE
This procedure is needed for replacing R-
side.
3 Remove the connectors connected to
JUNCTION Board (R side).
4 Remove the screws (4 pieces) retaining
JUNCTION Board.
A : Tapping screw S Tight cupM36
NOTE
It is retained upper side only.
5 To reassemble unit, reverse the removal
procedure.
A
