3.5.10 Replacing MAIN Board 86
3.5 Replacing Board Base section VJ628XE-M-00

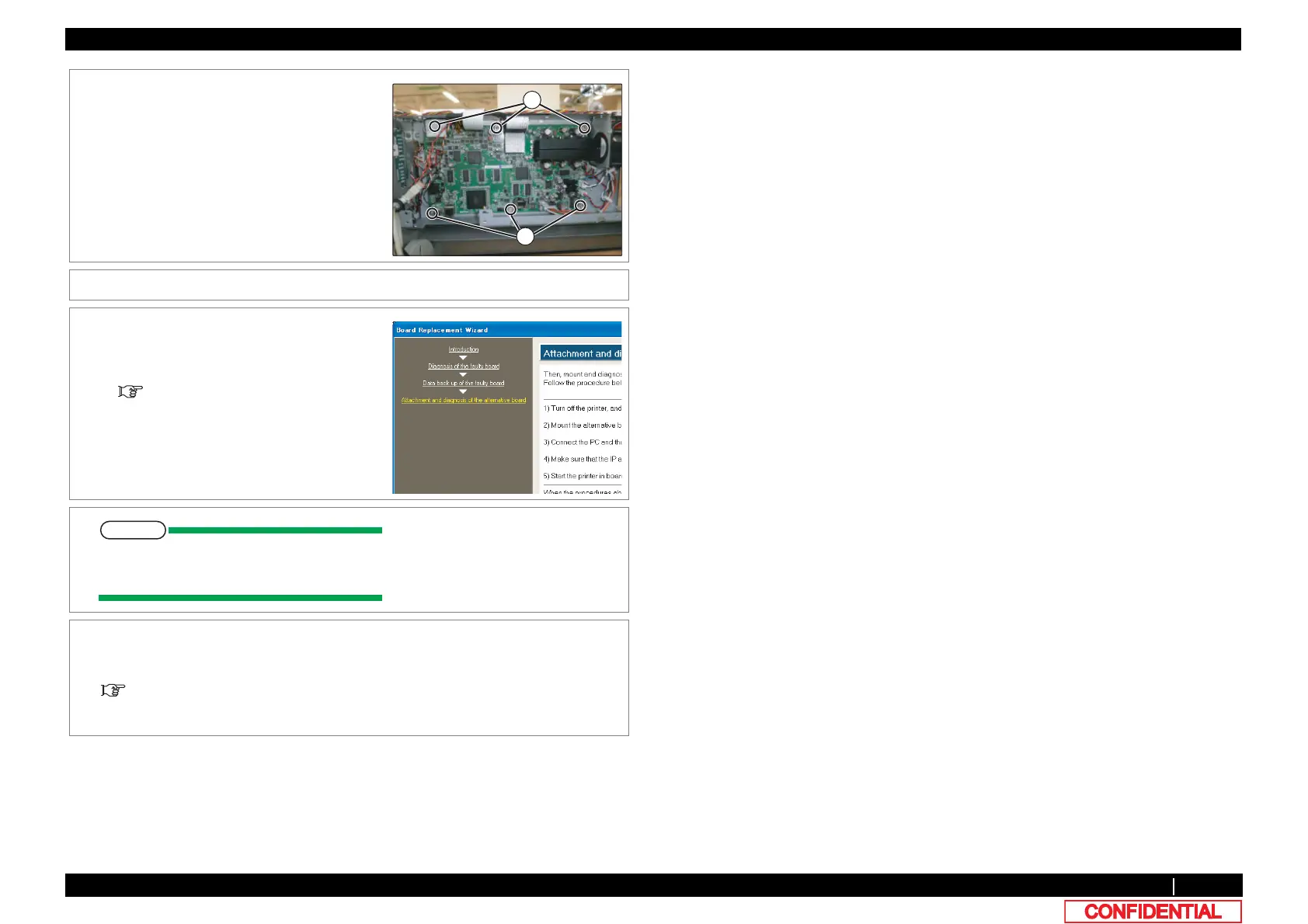

6 Remove the screws (6 pieces) retaining MAIN
Board.
A : Cup screw M3ｘ6
7 Replace MAIN Board Assy.
● After replacement, The window returns to
Board Replacement Wizard. Follow the
instructions displayed on the “Attachment
and Diagnosis of the alternative board“.
4.3.10 Board Replacement Wizard
When “Termination” window is displayed,
Board replacement wizard is completed.
8 Set the various settings.
Make the settings according to the board
replacement pattern.
(2) List of adjustment operations after
replacing the board for each board replacement
pattern
To Next Page
