3.3.4 Replacing Cover R Cable Assy 70
3.3 Replacing Cover section VJ628XE-M-00

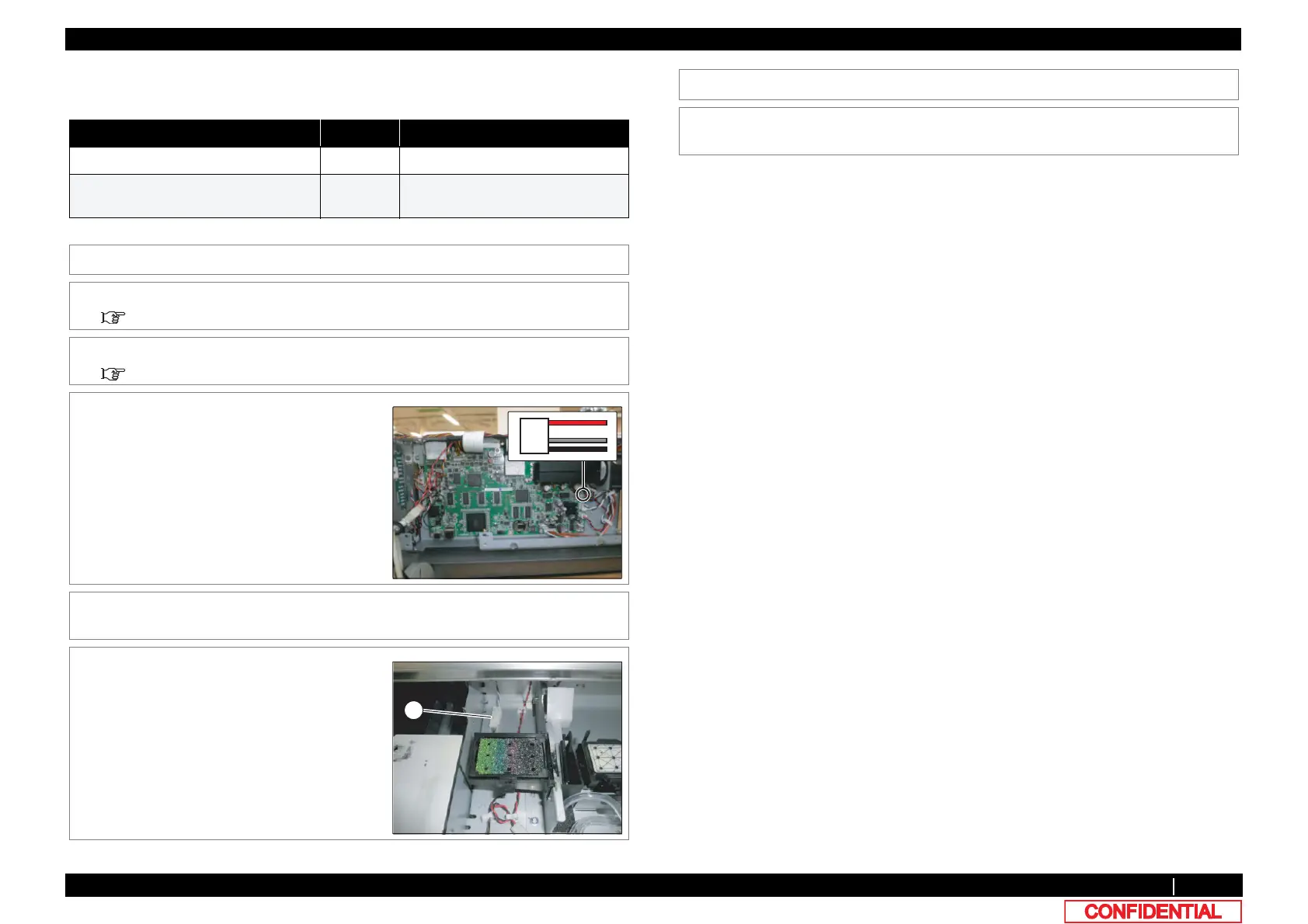

3.3.4 Replacing Cover R Cable Assy
● Tools & Jigs & Maintenance part
Name No. Remarks
Cover R Cable Assy DG-44729 Exploded View Cover
Phillips screwdriver No.2 Generic
products
-
1 Open Front Cover.
2 Remove R Side Cover.
3.2.2 Removing Side Cover
3 Remove Top Cover.
3.2.1 Removing Top Cover
4 Remove Cover R Cable from MAIN Board.
5 Remove Cover R Cable Assy from the clamps
on the path.
6 Remove Cover R Cable Assy from the clamps
on the path.
A : Connecting point
J13
A
7 Replace Cover R Cable Assy.
8 To reassemble unit, reverse the removal
procedure.
