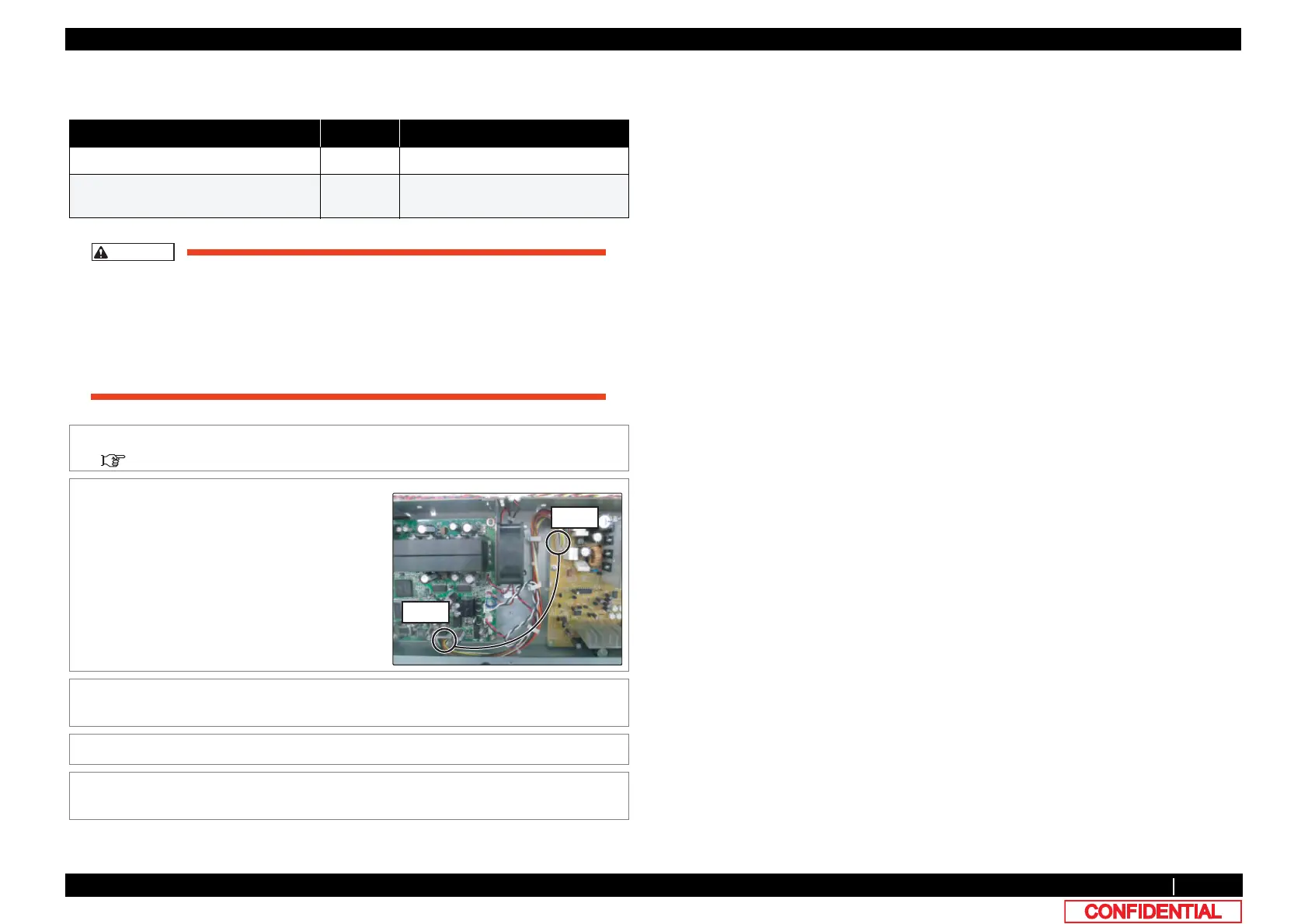

3.5.4 Replacing Main DC Cable Assy 79
3.5 Replacing Board Base section VJ628XE-M-00
3.5.4 Replacing Main DC Cable Assy
● Tools & Jigs & Maintenance part
• Before replacing Board Assy and pulling or pushing cables, unplug Power cable
and leave it for a while.
If operating with Power cable still plugged, Board may be damaged or operators
may get an electric shock by residual electric charge.
• When you handle Circuit board, do not touch any elements on it with bare hands.
Doing so may cause electrostatic discharge and damage the elements.
Name No. Remarks
MAIN DC Cable Assy DG-42993 Exploded View Board Box
Phillips screwdriver No.2 Generic
products
-
1 Remove Top Cover.
3.2.1 Removing Top Cover
2 Remove MAIN DC Cable Assy from MAIN
Board and Power Board.
3 Remove MAIN DC Cable Assy from clamps on
the path.
4 Replacing MAIN DC Cable Assy.
5 To reassemble unit, reverse the removal
procedure.
To Next Page
