MUTOH Valuevet VJ-628X - Replacing CR Origin Sensor Cable

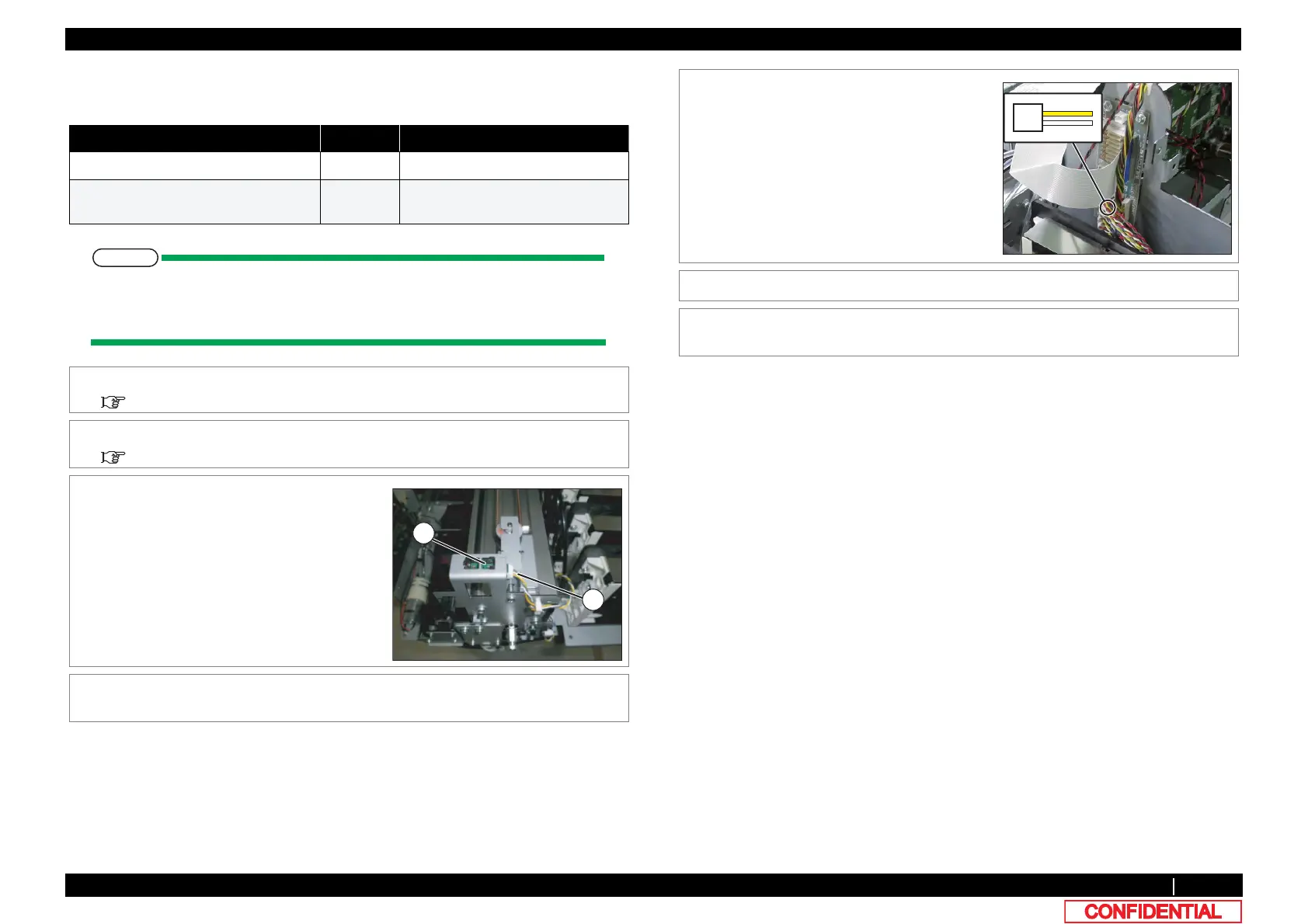

3.6.5 Replacing CR Origin Sensor Cable 98
3.6 Replacing Y Rail part VJ628XE-M-00
3.6.5 Replacing CR Origin Sensor Cable
● Tools & Jigs & Maintenance part
NOTE
This section describes the procedure to replace the maintenance part,CR Origin
Sensor Cable Assy.
In this section, it is reffered to as CR Origin Sensor Cable.
Name No. Remarks
CR Origin Sensor Cable Assy DG-44691 Exploded View Y Rail Assy
Phillips screwdriver No.2 Generic
products
-
1 Removing R Side Cover.
3.2.2 Removing Side Cover
2 Move Carriage to the top of Platen.
3.8.1 Releasing Carriage Lock
3 Remove CR Origin Sensor Cable from CR
Origin Sensor.
A : CR Origin Sensor Cable
B : CR Origin Sensor
4 Remove CR Origin Sensor Cable from the
clamps on the path.
A
B
5 Remove CR Origin Sensor Cable from
JUNCTION Board.
6 Replace CR Origin Sensor Cable.
7 To reassemble unit, reverse the removal
procedure.
J14
