MUTOH Valuevet VJ-628X - Replacing Lever Sensor

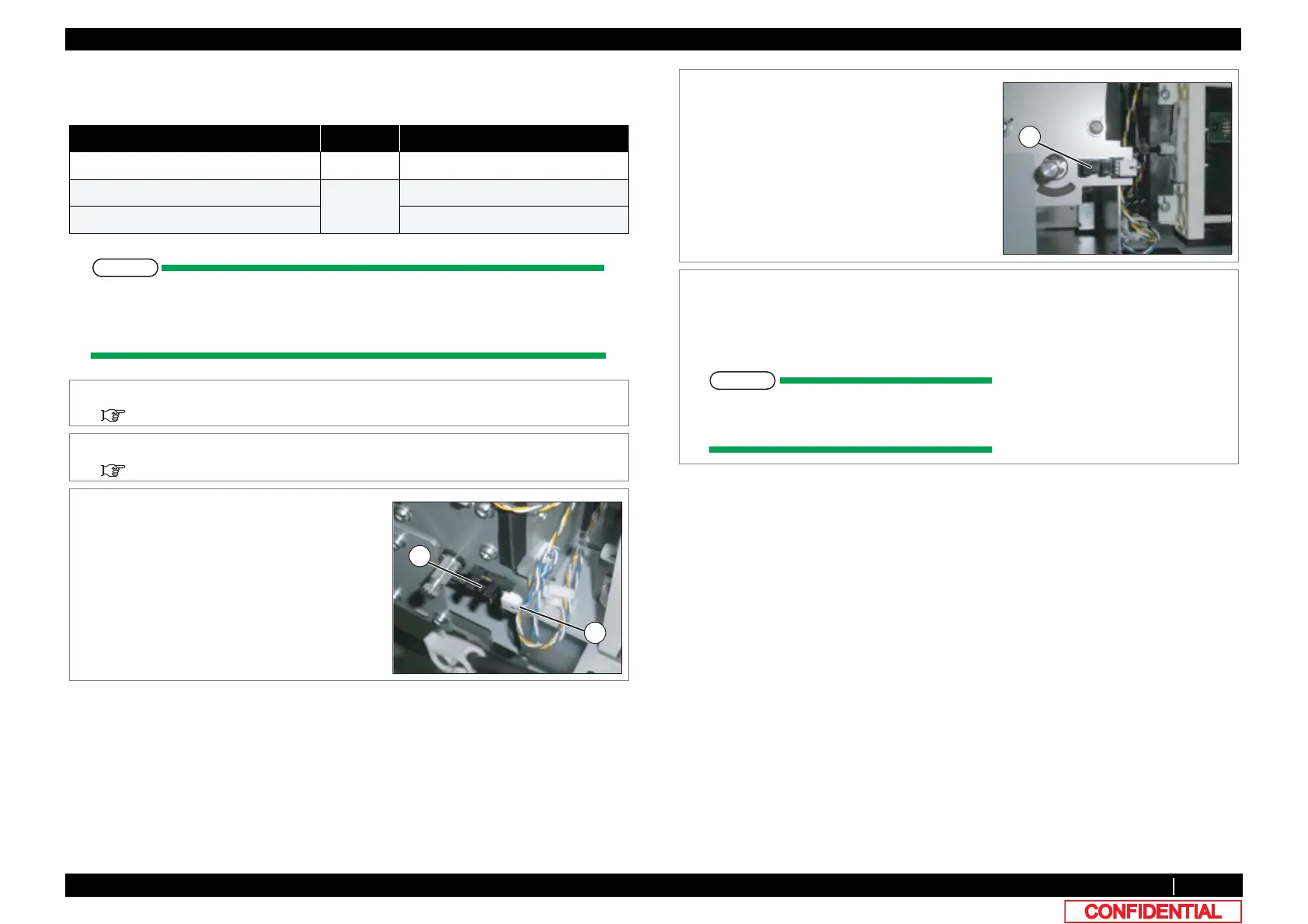

3.6.7 Replacing Lever Sensor 100
3.6 Replacing Y Rail part VJ628XE-M-00
3.6.7 Replacing Lever Sensor
● Tools & Jigs & Maintenance part
NOTE
• This section describes the procedure to replace the maintenance part,CR_HP
Sensor, Lever Sensor.In this section, it is reffered to as Lever Sensor.
• Lever Sensor is locker with Thread locker.
Name No. Remarks
CR_HP Sensor, Lever Sensor DF-49471 Exploded View Y Rail Assy
Phillips screwdriver No.2 Generic
products
-
Thread locker Threebond 1401
1 Removing R Side Cover.
3.2.2 Removing Side Cover
2 Move Carriage to the top of Platen.
3.8.1 Releasing Carriage Lock
3 Remove Lever Sensor Cable from Lever
Sensor.
A : Lever Sensor Cable
B : Lever Sensor
A
B
4 Remove Lever Sensor.
A : Lever Sensor
5 Replace Lever Sensor.
6 To reassemble unit, reverse the removal
procedure.
NOTE
Apply Thread locker to new Lever sensor,
and bond to the bracket firmly.
A
