3.8.18 Replacing Head FG Assy 145
3.8 Replacing Cursor section VJ628XE-M-00
3.8.18 Replacing Head FG Assy
● Tools & Jigs & Maintenance part
Name No. Remarks
Head FG Assy DF-49018 Exploded View Head Base
Phillips screwdriver No.2 Generic
products
-
slotted screwdriver -
1 Removing R Side Cover.
3.2.2 Removing Side Cover
2 Remove Carriage Cover.
3.8.2 Removing Carriage Cover
3 Remove CR Board Cover.
3.8.3 Removing CR Board Cover
4 Remove Cutter Holder Assy.
3.8.9 Replacing Cutter Holder Assy

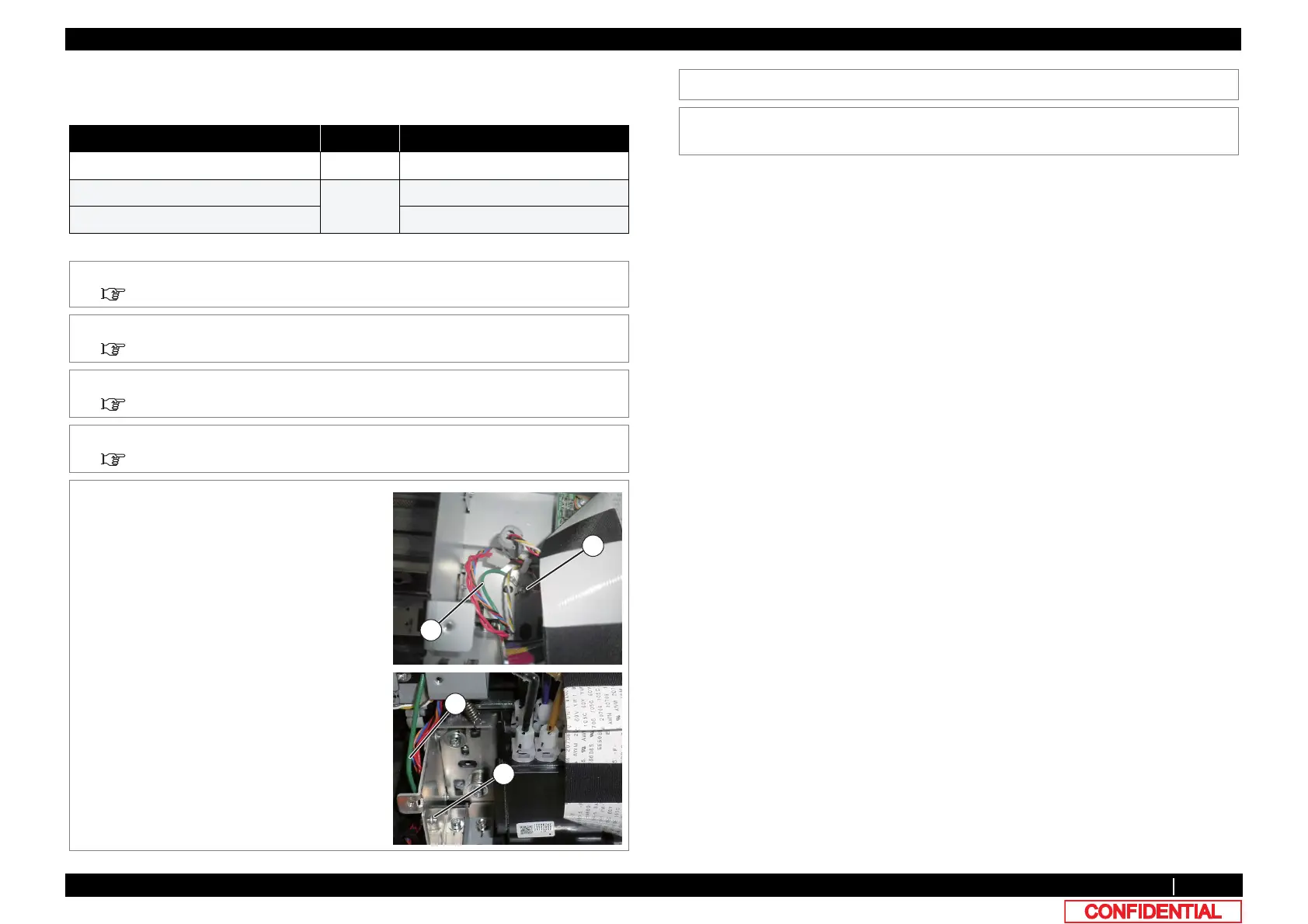

5 Removing the screws (2 pieces) retaining
Head FG Assy.
A : Pan-head screw with spring washer and
flat washer M3ｘ6
B : Head FGAssy
A
B
A
B
6 Replace Head FG Assy.
7 To reassemble unit, reverse the removal
procedure.
