3.5.1 Replacing Power Board 76
3.5 Replacing Board Base section VJ628XE-M-00
3.5 Replacing Board Base section
3.5.1 Replacing Power Board
● Tools & Jigs & Maintenance part
CAUTION
If Power board Assy needs to be removed, remove Power Cable and wait for 5
minutes or more before dismounting the Assy; this will discharge the residual
electrical charge of the electrolytic capacitor.
Touching Board before capacitor discharges may cause electric shock.
Name No. Remarks
Power Board Assy DG-43172 Exploded View Board Box
Phillips screwdriver No.2 Generic
products
-
1 Remove Top Cover.
3.2.1 Removing Top Cover
2 Remove connectors that are connected to
Power Board.

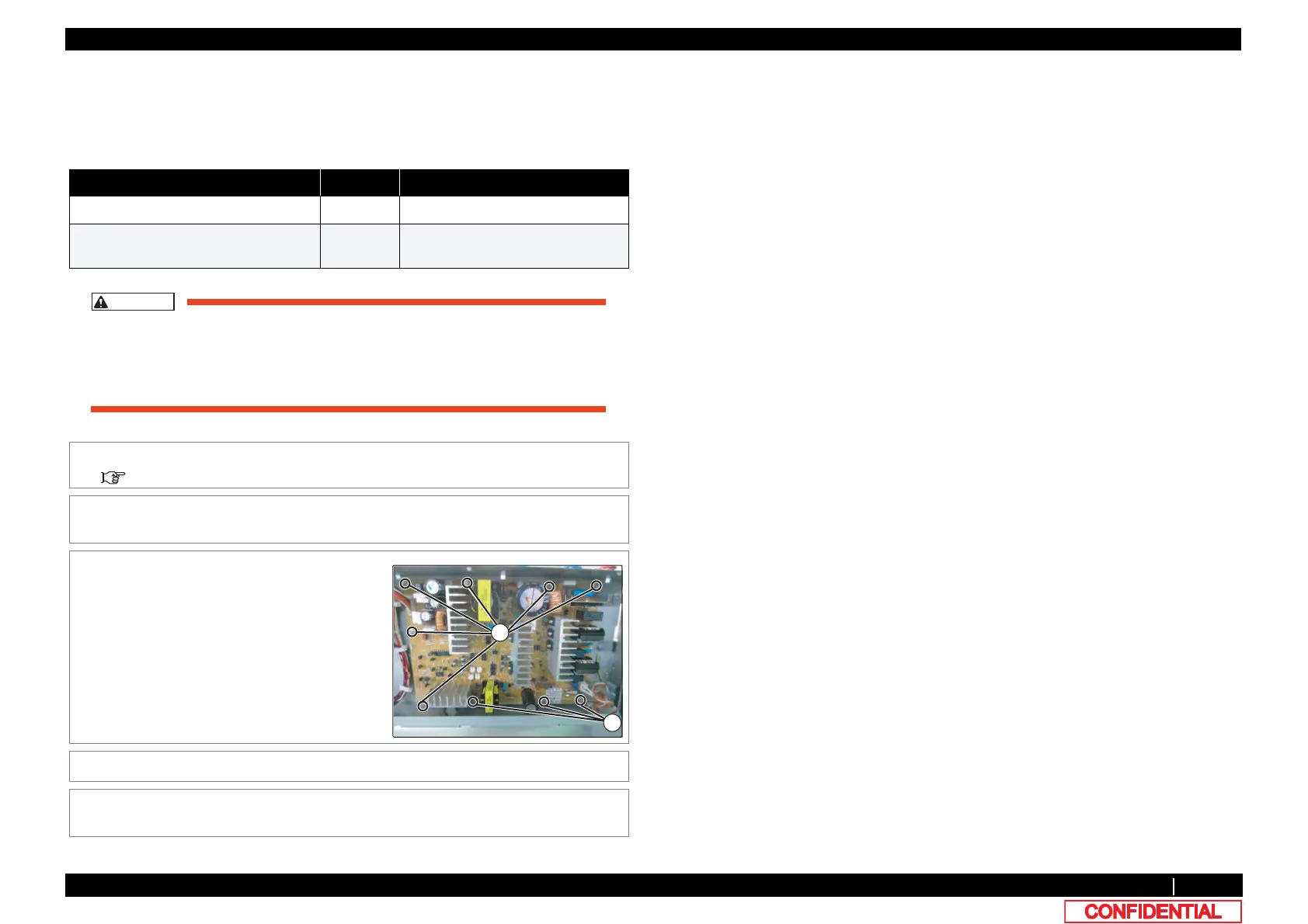

3 Remove the screws (9 pieces) retaining
Power Board.
A : Cup screw Ｍ3ｘ6
4 Replace Power board.
5 To reassemble unit, reverse the removal
procedure.
A
A
