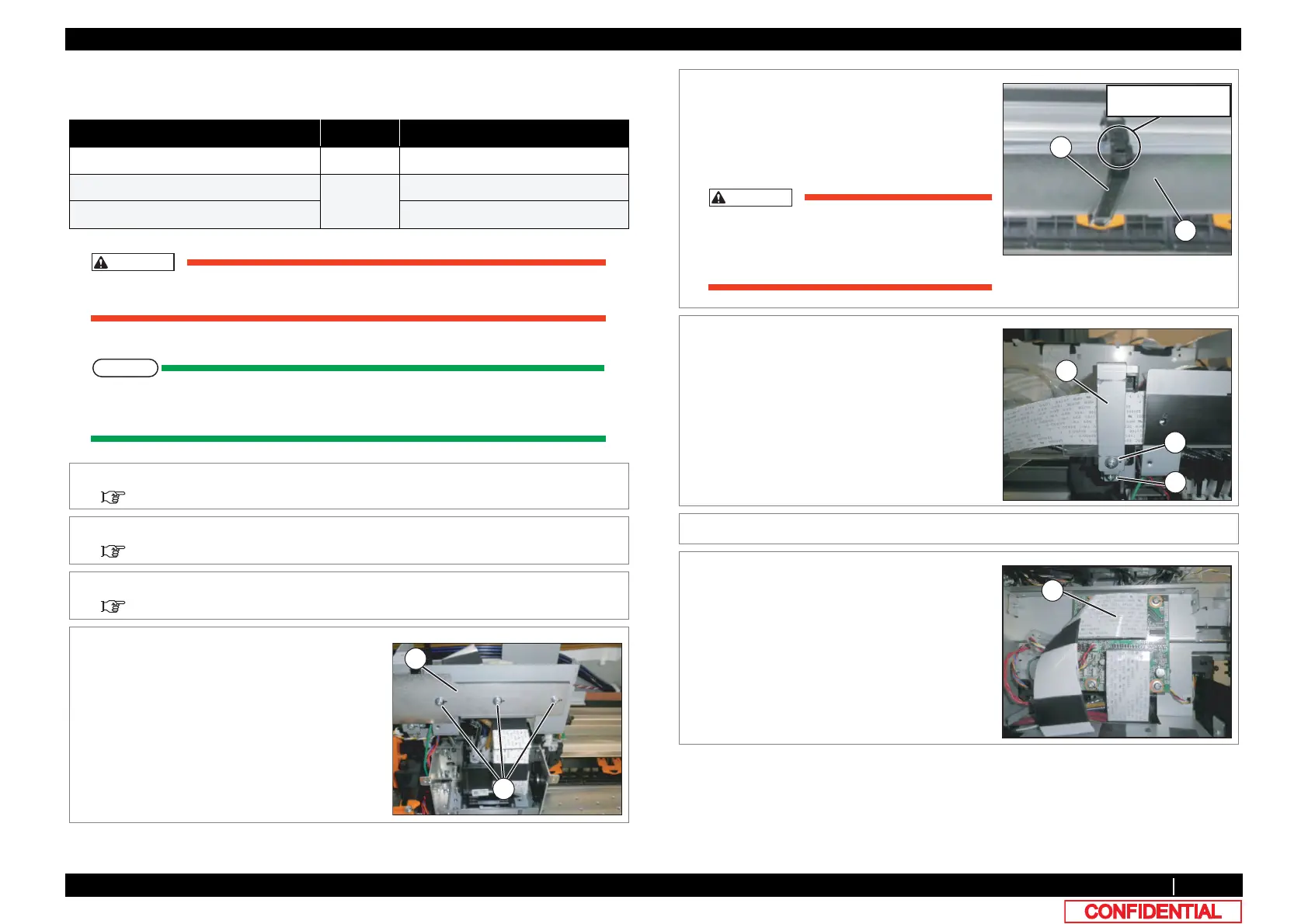

MUTOH Valuevet VJ-628X - Replacing CR FFC

3.9.3 Replacing CR FFC 150
3.9 Replacing Cable Guide section VJ628XE-M-00
3.9.3 Replacing CR FFC
● Tools & Jigs & Maintenance part
CAUTION
Work not to cut a hand etc. with Steel Bare, wearing gloves.
㨀㧵㧼
This section describes the procedure to replace the maintenance part,CR FFC Assy.
In this section, it is reffered to as CR FFC.
Name No. Remarks
CR FFC Assy DG-44703 Exploded View Cable Guide
Phillips screwdriver No.2 Generic
products
-
slotted screwdriver（precision）
-
1 Remove Top Cover.
3.2.1 Removing Top Cover
2 Release the Carriage Lock.
3.8.1 Releasing Carriage Lock
3 Remove CR Board Cover.
3.8.1 Releasing Carriage Lock
4 Remove the screws (3 pieces) retaining Steel
Bare.
A : Pan-head screw with spring washer and
flat washer M3ｘ8
B : Steel Bare
B
A
5 Remove the clamp that is the nearest to
Carriage.
A : Steel Bare
B : Clamp Bare
CAUTION
Work, while you press down Steel Bare by
hand. There is a possibility that it may be
injured by Steel Bare being over.
6 Remove the screws (2 pieces) retaining CR
FFC Fixing Plate.
A : CR_FFC Fixing Plate
B : Tapping screw M3ｘ8 P Tight cup
C : Tapping screw M3ｘ6 S Tight cup
7 Remove CR FFC Fixing plate.
8 Remove CR FFC from CR Board.
A : CR_FFC
B
A
Release the hook
with a slotted screwdriver
A
BB
C
A
