MUTOH Valuevet VJ-628X User Manual

3.9.3 Replacing CR FFC 151
3.9 Replacing Cable Guide section VJ628XE-M-00

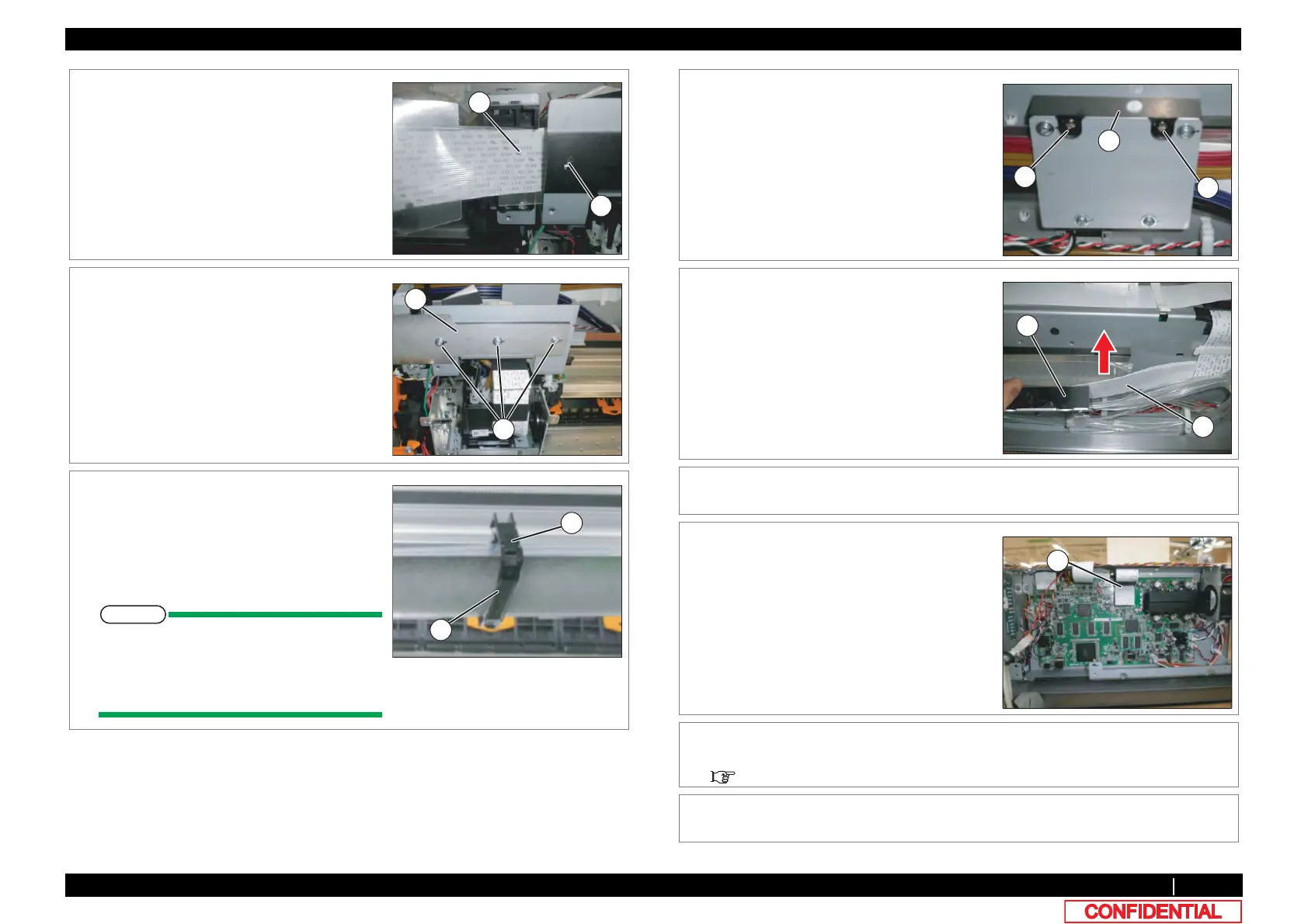

9 Remove CR_FFC from CR Board Base.
A : CR_FFC
B : CR Board Base
10 Temporary tighten the screws (3 pieces)
retaining Steel Bare.
A : Pan-head screw with spring washer and
flat washer M3ｘ8
B : Steel Bare
11 Remove Clamp Bare.
12 Remove Tube Film from Clamp FFC.
A : Clamp_FFC
B : Clamp_Bare
NOTE
One place should work at a time. After
attaching again the Clamp Bare of the
part which removed CR_FFC, the next
part should work.
A
BB
B
A
B
A
13 Remove the screws retaining Bare Fixing
Material.
A : Tapping screw M3ｘ14 P Tight cup
B : Bare Fixing Material
14 Remove CR_FFC from Bare Fixing Material.
A : Bare Fixing Material
B : CR_FFC
15 Remove CR FFC from the clamps on the
path.
16 Remove CR FFC from MAIN Board.
A : CR_FFC
17 Refer to the instructions and bend the new
CR_FFC for installation.
Folding Direction CR FFC
18 To reassemble unit, reverse the removal
procedure.
B
A
A
B
A
A
