MUTOH Valuevet VJ-628X - Replacing CR Origin Sensor

3.6.4 Replacing CR Origin Sensor 97
3.6 Replacing Y Rail part VJ628XE-M-00

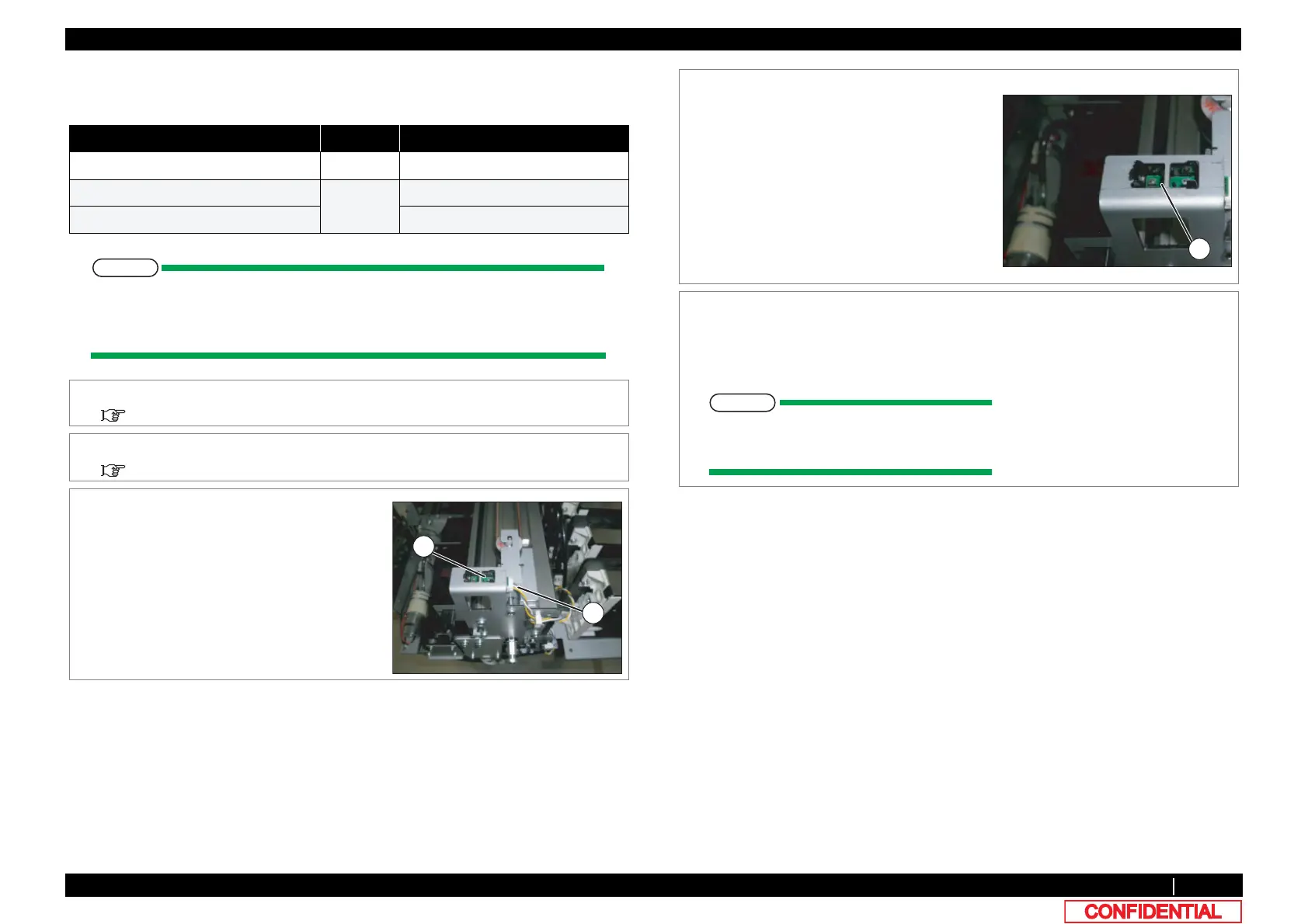

3.6.4 Replacing CR Origin Sensor
● Tools & Jigs & Maintenance part
NOTE
• This section describes the procedure to replace the maintenance part,CR_HP
Sensor, Lever Sensor.In this section, it is reffered to as CR Origin Sensor.
• CR Origin Sensor is locked with Thread locker.
Name No. Remarks
CR_HP Sensor, Lever Sensor DF-49471 Exploded View Y Rail Assy
Phillips screwdriver No.2 Generic
products
-
Thread locker Three bond401
1 Removing R Side Cover.
3.2.2 Removing Side Cover
2 Move Carriage to the top of Platen.
3.8.1 Releasing Carriage Lock
3 Remove CR Origin Sensor Cable from CR
Origin Sensor.
A : CR Origin Sensor Cable
B : CR Origin Sensor
A
B
4 Remove CR Origin Sensor.
A : CR Origin Sensor
5 Replace CR Origin Sensor.
6 To reassemble unit, reverse the removal
procedure.
NOTE
Apply Thread Locker to the new CR
Origin Sensor when installing it.
A
