3.6.9 Replacing Fence Guide 103
3.6 Replacing Y Rail part VJ628XE-M-00

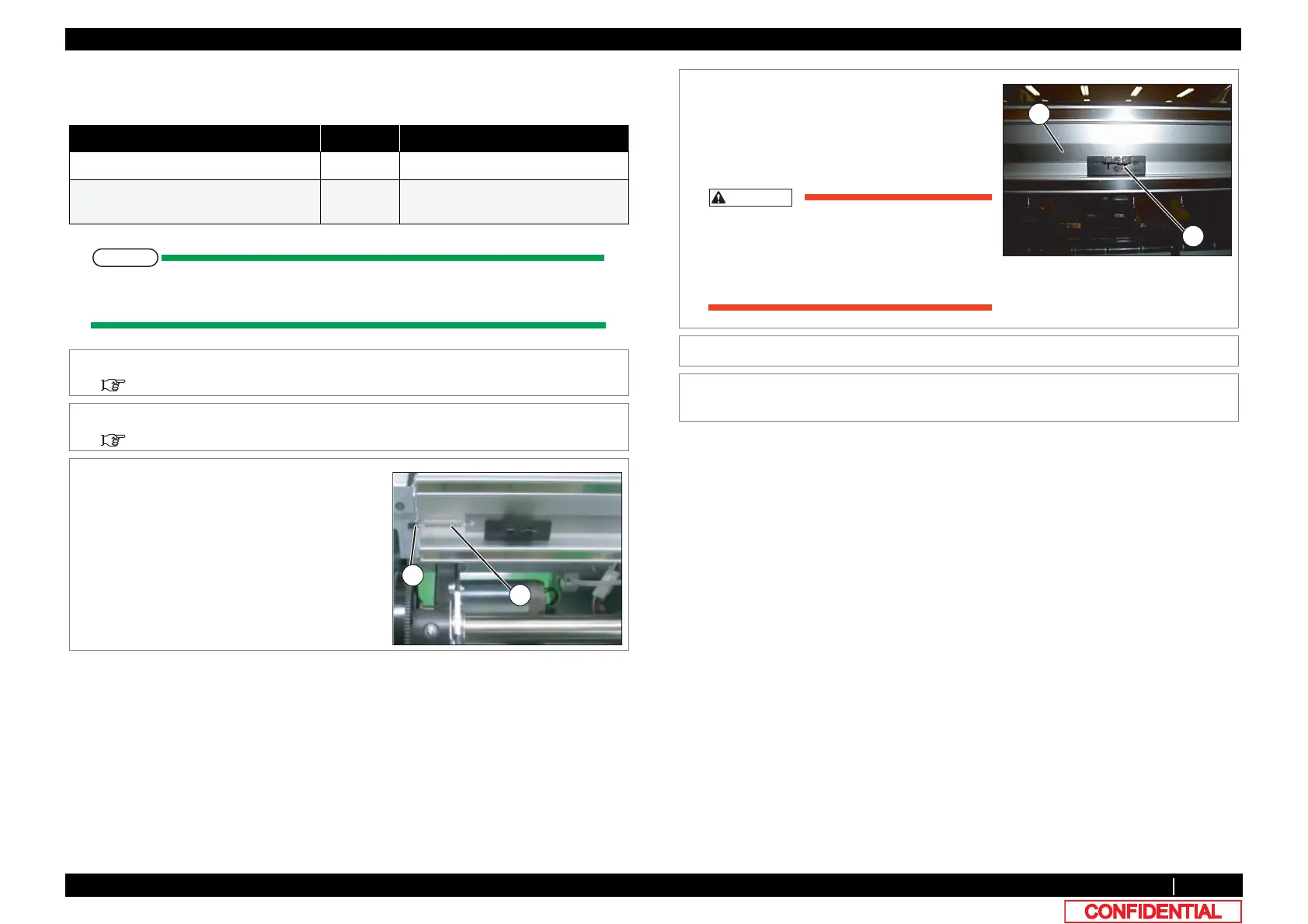

3.6.9 Replacing Fence Guide
● Tools & Jigs & Maintenance part
This section describes the procedure to replace the maintenance part, Fence Guide
Assy.In this section, it is reffered to as T Fence Guide.
Name No. Remarks
Fence Guide Assy DF-49027 Exploded View Y Rail Assy
Phillips screwdriver No.2 Generic
products
-
1 Removing R Side Cover.
3.2.2 Removing Side Cover
2 Move Carriage to the top of Platen.
3.8.1 Releasing Carriage Lock
3 Remove T Fence Spring from T Fence Spring
Hook.
A : T Fence Spring Hook
B : T Fence Spring
4 Remove T Fence from Fence Guide (3
pieces).
A : Fence Guide
B : T Fence
• Do not pull T Fence by force; the Fence
Guide can be easily broken.
• Pay attention not to damage or break T
Fence.
5 Replace Fence Guide.
6 To reassemble unit, reverse the removal
procedure.
To Next Page
