3.5.14 Replacing Inlet AC JUNC Cable Assy 90
3.5 Replacing Board Base section VJ628XE-M-00

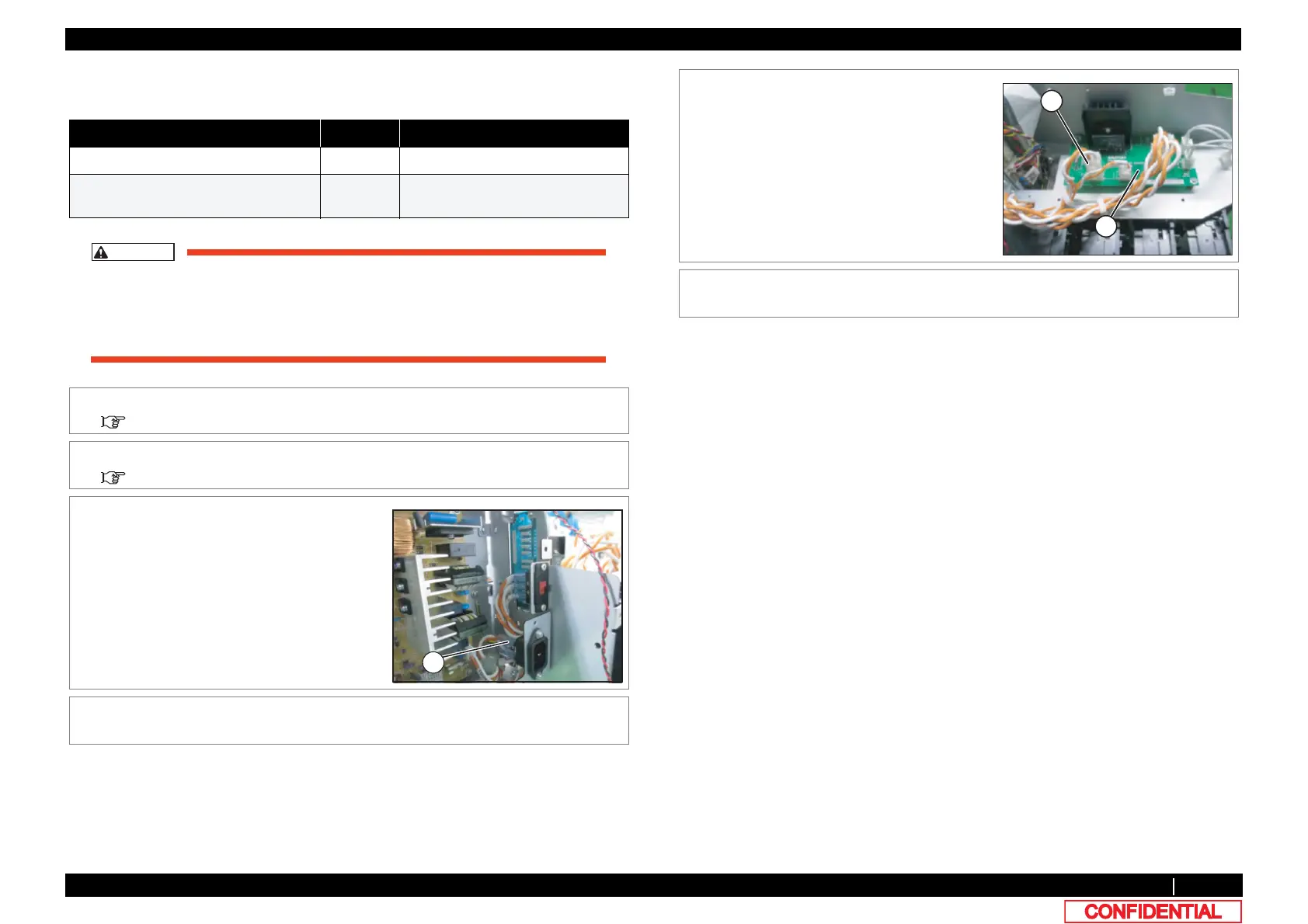

3.5.14 Replacing Inlet AC JUNC Cable Assy
● Tools & Jigs & Maintenance part
CAUTION
Before replacing Board Assy and pulling or pushing FFC type cables, unplug Power
cable and leave it for a while.
If operating with Power cable still plugged, Board may be damaged or operators may
get an electric shock by residual electric charge.
Name No. Remarks
Inlet-AC_JUNC Cable Assy DG-44715 Exploded View Board Box
Phillips screwdriver No.2 Generic
products
-
1 Remove Top Cover.
3.2.1 Removing Top Cover
2 Removing L Side Cover.
3.2.2 Removing Side Cover
3 Remove Inlet AC JUNC Cable Assy from AC
Inlet.
A : Inlet AC_JUNC Cable Assy
4 Remove the cables from the clamps on the
path.
A
5 Remove Inlet AC JUNC Cable Assy from
HEATER DRIVE Board.
A : Inlet AC_JUNC Cable Assy
B : HEATER DRIVE Board
6 To reassemble unit, reverse the removal
procedure.
B
A
