MUTOH Valuevet VJ-628X - Replacing PF Encoder

3.7.2 Replacing PF Encoder 111
3.7 Replacing PF section VJ628XE-M-00

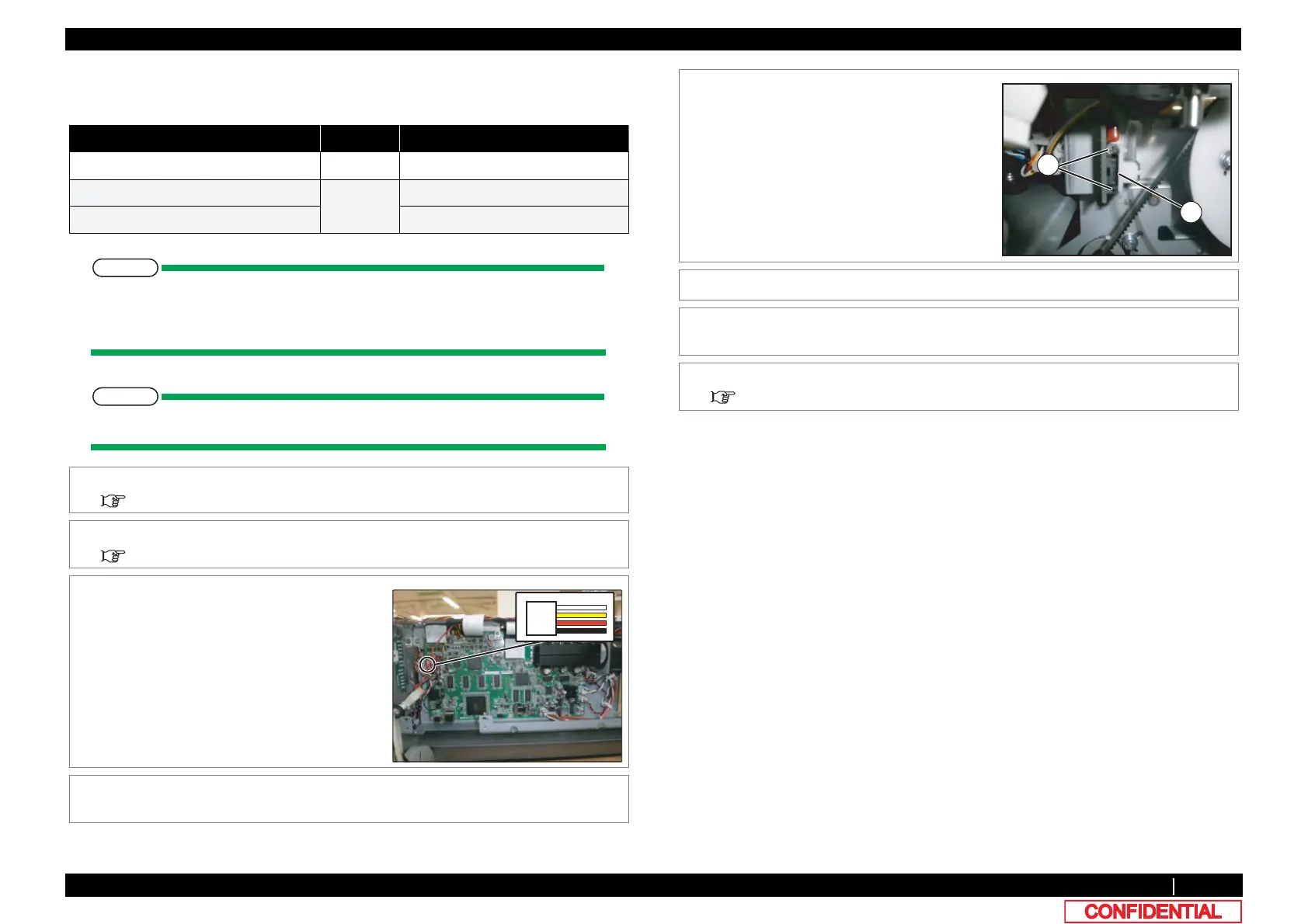

3.7.2 Replacing PF Encoder
● Tools & Jigs & Maintenance part
NOTE
This section describes the procedure to replace the maintenance part, PF Encoder
Assy.
n this section, it is reffered to as PF Encoder.
NOTE
Do NOT damage or bend PF Encoder scale or touch its outer circumference.
Name No. Remarks
PF Encoder Assy DG-44701 Exploded View PF Motor
Phillips screwdriver No.2 Generic
products
-
Phillips screwdriverNo.1 -
1 Remove R Side Cover and L Side Cover.
3.2.2 Removing Side Cover
2 Remove Top Cover.
3.2.1 Removing Top Cover
3 Remove PF Encoder from MAIN Board.
4 Remove the cable of PF Encoder from the
clamps on the path.
J24
5 Remove the screws (2 pieces) retaining PF
Encoder.
A : PF Encoder
B : Tapping screw M2ｘ8
6 Replace PF Encoder.
7 To reassemble unit, reverse the removal
procedure.
8 Perform various adjustments.
4.2 Adjustment Item
A
B
