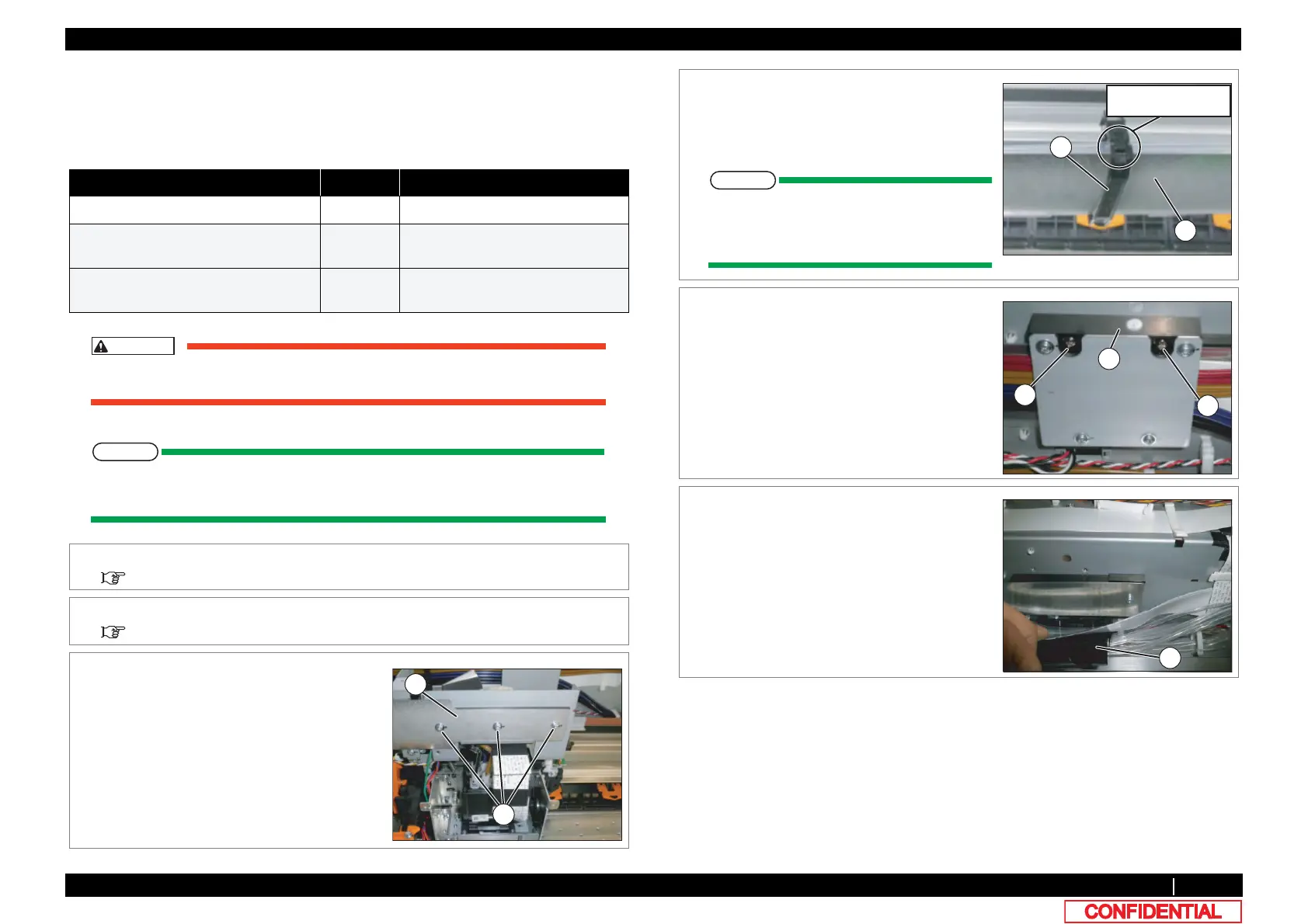

3.9 Replacing Cable Guide section VJ628XE-M-00
3.9 Replacing Cable Guide section
3.9.1 Replacing Steel Bare
● Tools & Jigs & Maintenance part
CAUTION
Work not to cut a hand etc. with Steel Bare, wearing gloves.
㨀㧵㧼
This section describes the procedure to replace the maintenance part, Steel Bare
Assy.In this section, it is referred to as Steel Bare.
Name No. Remarks
Steel Bare Assy DG-44704 Exploded View Cable Guide
Phillips screwdriver No.2 Generic
products
-
slotted screwdriver（precision）
Generic
products
-
1 Remove Top Cover.
3.2.1 Removing Top Cover
2 Release the Carriage Lock.
3.8.1 Releasing Carriage Lock
3 Remove the screws (3 pieces) retaining Steel
Bare.
A : Pan-head screw with spring washer and
flat washer M3ｘ8
B : Steel Bare
B
A
4 Remove Clamp Bare (7 pieces).
A : Stell Bare
B : Clamp Bare
NOTE
Work, while you press down Steel Bare by
hand. There is a possibility that it may be
injured by Steel Bare being over.
5 Remove the screws (2 pieces) retaining Bare
Fixing Materials.
A : Tapping screw M3ｘ14 P Tight cup
B : Bare Fixing Materials
6 Remove Bare Fixing Material with Ink Tubes
and FFCs attached to it.（refer to the right
images)
A : Bare Fixing Material
B
A
Release the hook
with a slotted screwdriver
B
A
A
A
