3.9.1 Replacing Steel Bare 147
3.9 Replacing Cable Guide section VJ628XE-M-00

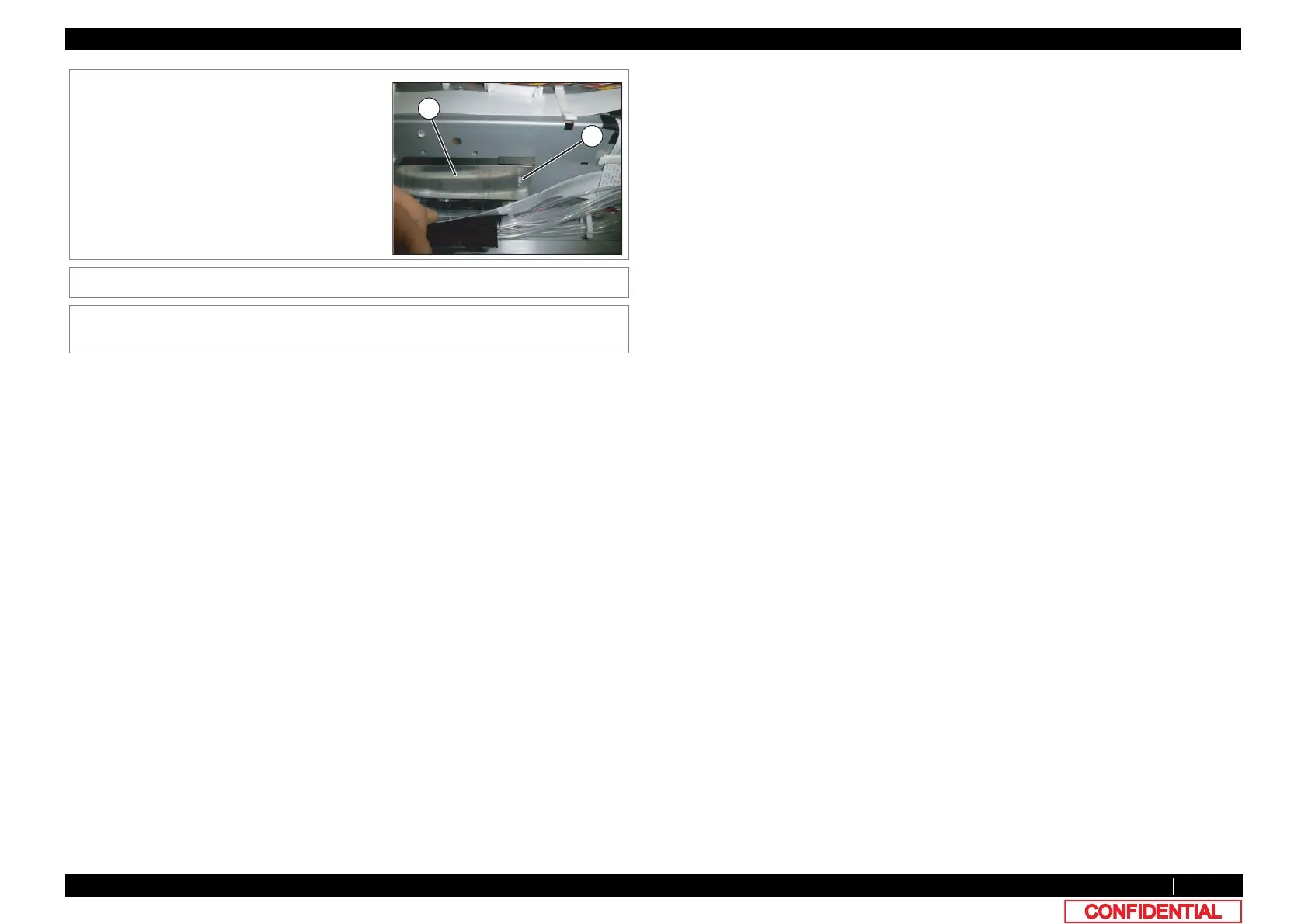

7 Remove the screw retaining Steel Bare.
A : Pan-head screw with spring washer and
flat washer M3ｘ8
B : Steel Bare
8 Replace Steel Bare.
9 To reassemble unit, reverse the removal
procedure.
A
B
