3.11.3 Replacing Cartridge Holder 168
3.11 Replacing IH VJ628XE-M-00

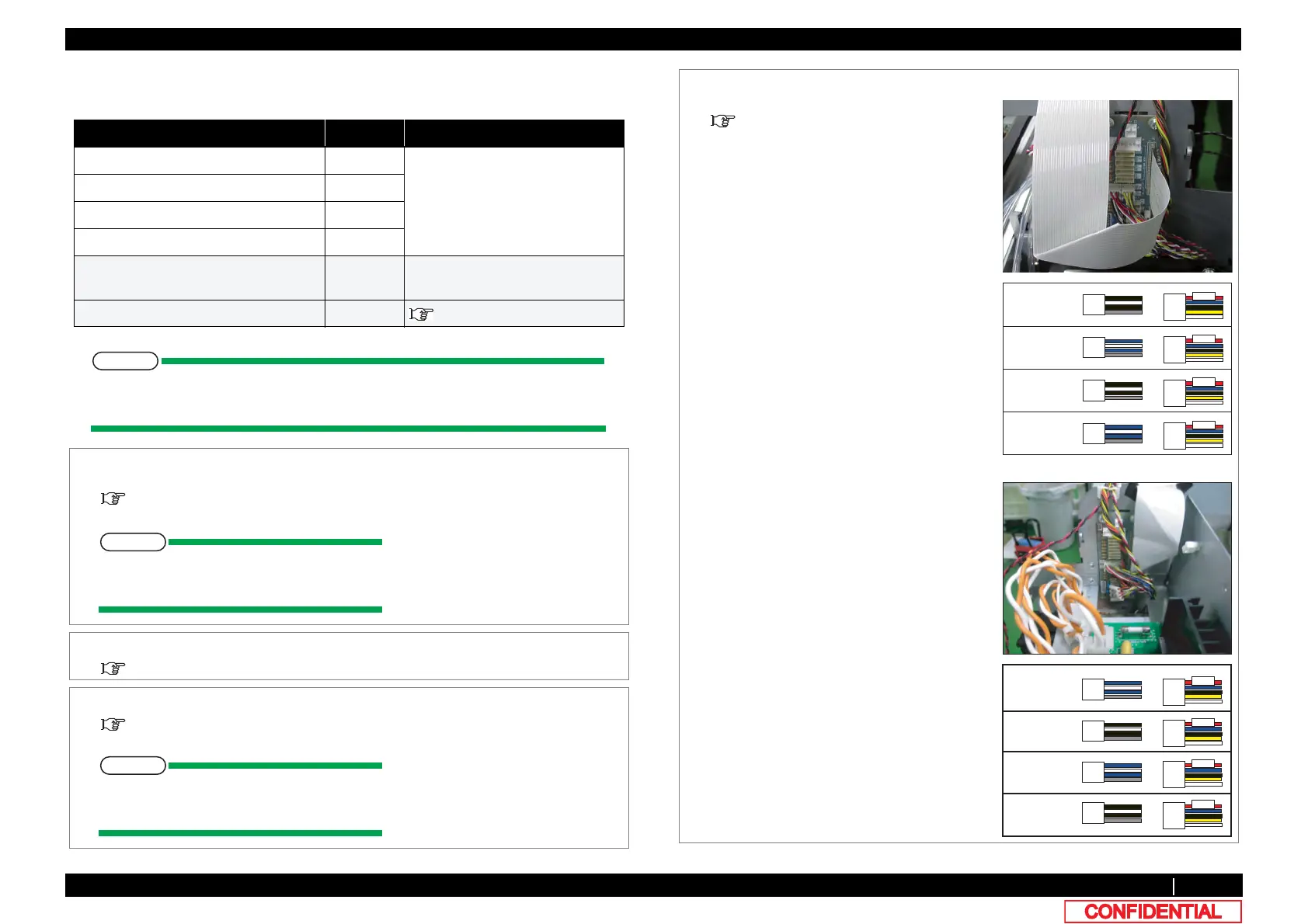

3.11.3 Replacing Cartridge Holder
● Tools & Jigs & Maintenance part
This section describes the procedure to replace the maintenance part,I/C Holder
Assy.In this section, it is referred to as Cartridge Holder.
Name No. Remarks
I/C Holder Assy1 DG-45562
Exploded View IH R
Exploded View IH L
I/C Holder Assy2 DG-45563
I/C Holder Assy3 DG-45564
I/C Holder Assy4 DG-45565
Phillips screwdriver No.2 Generic
products
-
dedicated fluid - Operation Manual
1 Perform ink discharge operation to discharge
ink entirely from ink path.
5.6.9 Longstore Menu
After ink discharge operation, make sure
that Ink cartridge is pulled out.
2 Removing Side Cover (R or L).
3.2.2 Removing Side Cover
3 Removing Pump Stay.
3.11.1 Removing Pump stay
This procedure is needed for replacing R-
side.
4 Remove the cable for exchange (2 sets each)
from JUNCTION Board.
3.5.11 Replacing JUNCTION Board
JUNCTION Board R
JUNCTION Board L
J8
J16
BK
J9
J10
J11
J17
BLU
J18
RED
J19
YEL
slot 1
(I/C Holder Assy1)
slot 2
(I/C Holder Assy2)
slot 3
(I/C Holder Assy3)
slot 4
(I/C Holder Assy4)
J8
J16
BK
J9
J10
J11
J17
BLU
J18
RED
J19
YEL
slot 5
(I/C Holder Assy4)
slot 6
(I/C Holder Assy3)
slot 7
(I/C Holder Assy2)
slot 8
(I/C Holder Assy1)
To Next Page
