3.8.6 Replacing P_EDGE Sensor 121
3.8 Replacing Cursor section VJ628XE-M-00

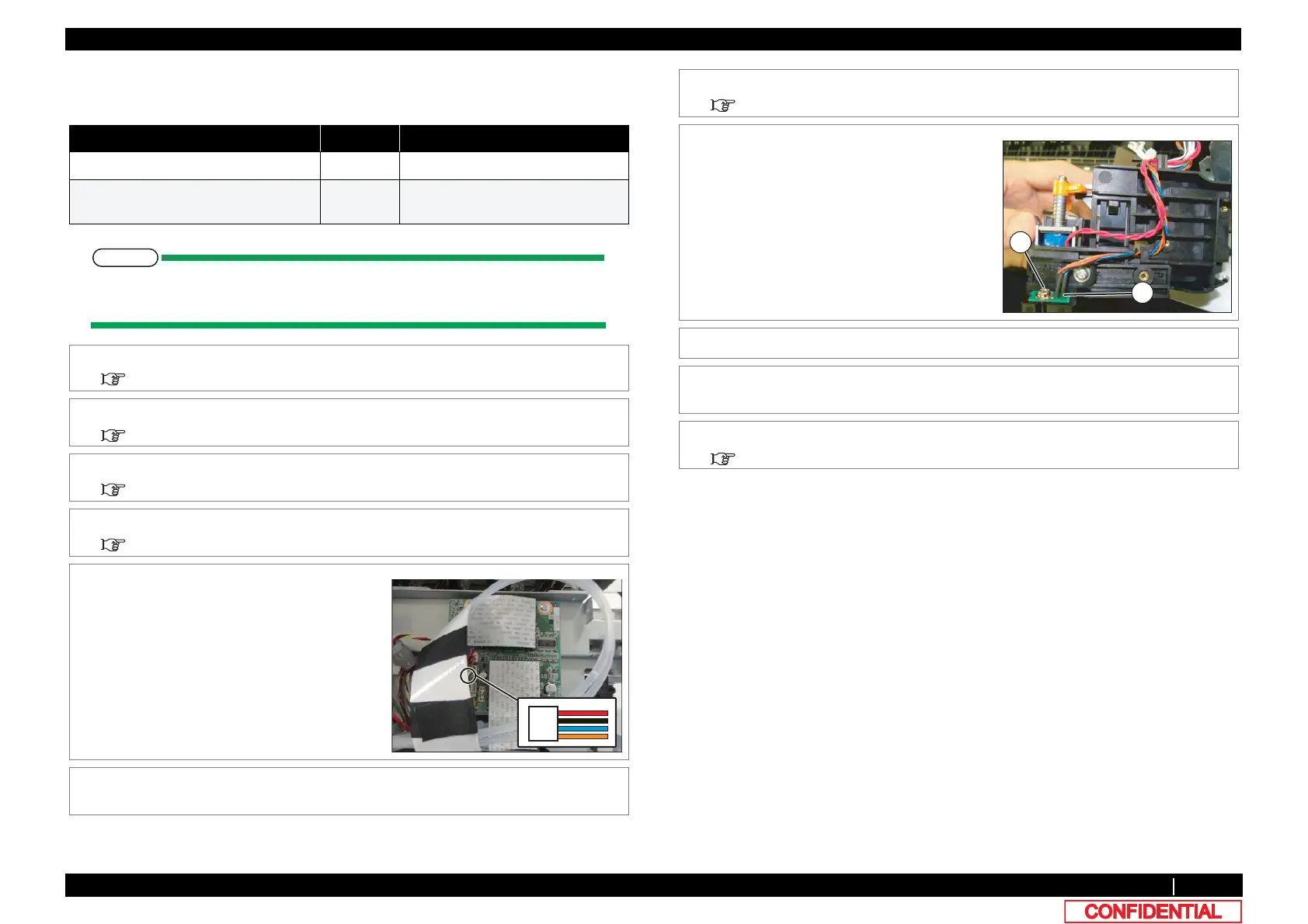

3.8.6 Replacing P_EDGE Sensor
● Tools & Jigs & Maintenance part
This section describes the procedure to replace the maintenance part,P-Edge
Sensor Assy.In this section n this section, it is reffered to as P_EDGE Sensor.
Name No. Remarks
P-Edge Sensor Assy DG-43319 Exploded View Cursor
Phillips screwdriver No.2 Generic
products
-
1 Removing R Side Cover.
3.2.2 Removing Side Cover
2 Remove Top Cover.
3.2.1 Removing Top Cover
3 Remove Carriage Cover.
3.8.2 Removing Carriage Cover
4 Remove CR Board Cover.
3.8.3 Removing CR Board Cover
5 Remove P_EDGE Sensor from CR Board.
6 Remove P_EDGE Sensor from the clamps on
the path.
7 Remove Cutter Holder Assy.
3.8.9 Replacing Cutter Holder Assy
8 Remove the screw retaining P_EDGE Sensor.
A : Pan-head screw with spring washer and
flat washer M3ｘ6
B : P_EDGE Sensor
9 Replace P_EGDE Sensor.
10 To reassemble unit, reverse the removal
procedure.
11 Perform various adjustments.
4.2 Adjustment Item
To Next Page
