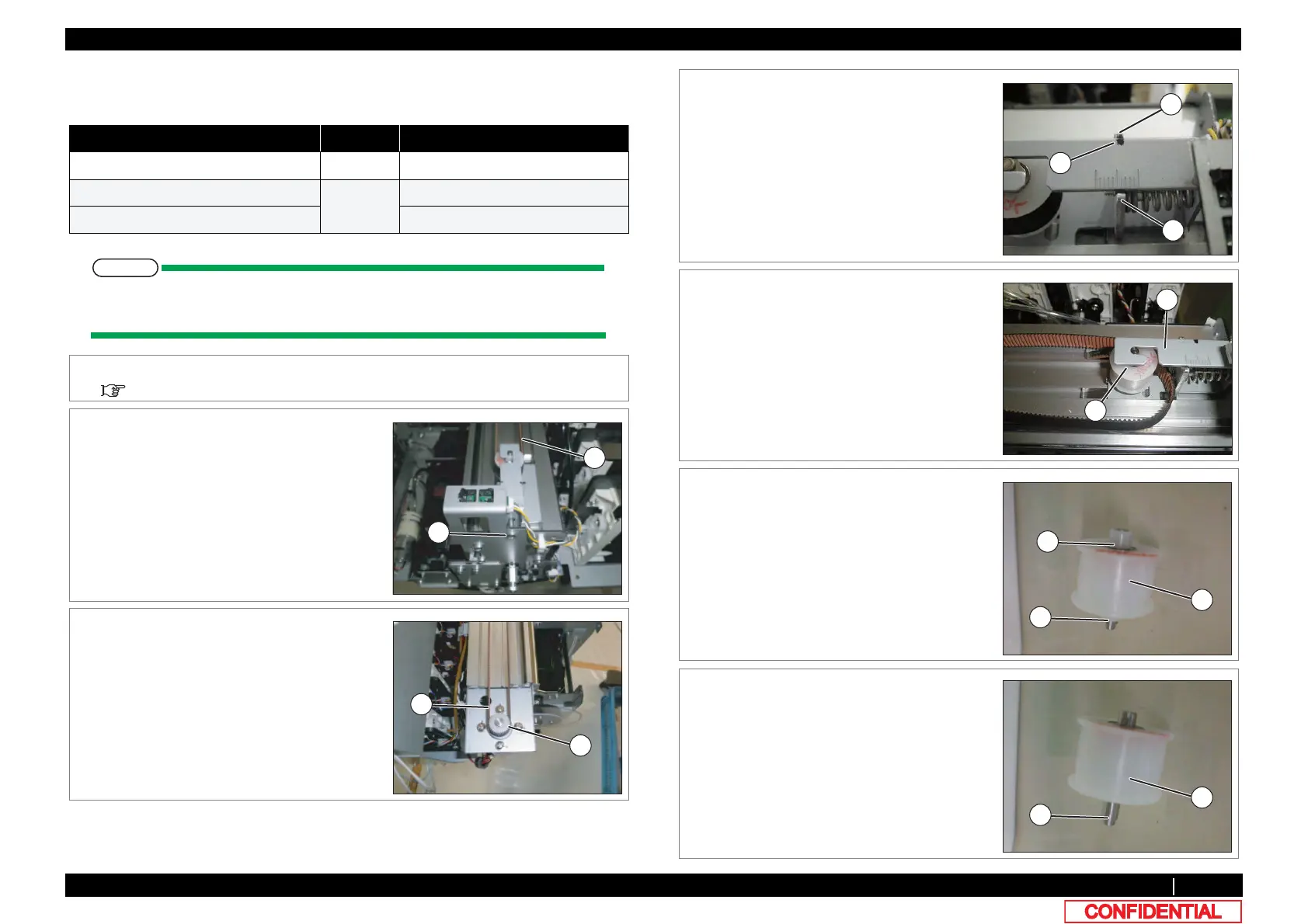

3.6.11 Replacing CR Return Pulley Assy 105
3.6 Replacing Y Rail part VJ628XE-M-00
3.6.11 Replacing CR Return Pulley Assy
● Tools & Jigs & Maintenance part
NOTE
This section describes the procedure to replace the maintenance part,CR Return
Pulley Assy.In this section, it is referred to as CR Return Pulley.
Name No. Remarks
CR Return Pulley Assy DF-49047 Exploded View Y Rail Assy
Phillips screwdriver No.2 Generic
products
-
Thread locker Threebond 1401
1 Remove R Side Cover and L Side Cover.
3.2.2 Removing Side Cover
2 Loosen the adjusting screw, and the loosen
tension of CR Belt.
A : Pan head small screw M4ｘ30
B : CR Bel
3 Remove CR belt from CR motor.
A : CR belt
B : CR motor
B
A
B
A
4 Mark the position of CB belt tension adjusting
plate.
A : CR belt adjusting plate
B : Marking
5 Remove CR Return Pulley from Return Pulley
Base.
A : CR Return Pulley Assy
B : Return Pulley Base
6 Remove Bearing Holder (2 pieces) from CR
Return Pulley.
A : Bearing Holder
B : CR Return Pulley
7 Remove Return Pulley Axis from CR Return
Pulley.
A : Return Pulley Axis
B : CR Return Pulley
B
A
A
B
A
B
A
A
B
A
