3.9.2 Replacing Tube Guide Film Assy 149
3.9 Replacing Cable Guide section VJ628XE-M-00

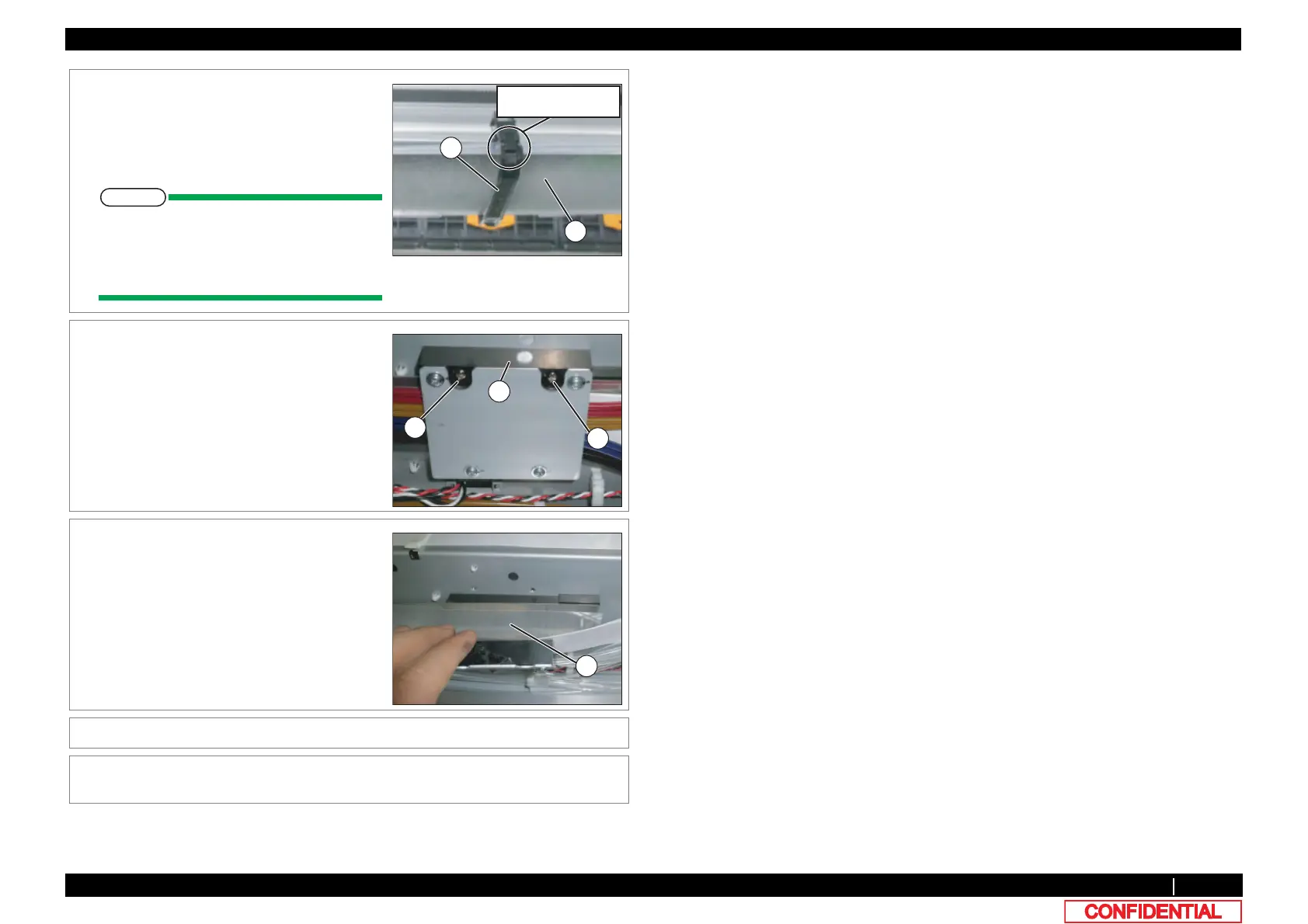

9 Remove Clamp Bare and then remove Tube
Film.
A : Tube Film
B : Clamp Bare
One place should work at a time. After
attaching again the Clamp Bare of the
part which removed Tube Film, the next
part should work.
10 Remove the screws (2 pieces) retaining Bare
Fixing Material.
A : Tapping screw M3ｘ14 P Tight cup
B : Bare Fixing Material
11 Remove Tube Film.
A : Tube Film
12 Replace Tube Guide Film.
13 To reassemble unit, reverse the removal
procedure.
B
A
Release the hook
with a slotted screwdriver
To Next Page
