3.6.2 Replacing CR Belt 95
3.6 Replacing Y Rail part VJ628XE-M-00

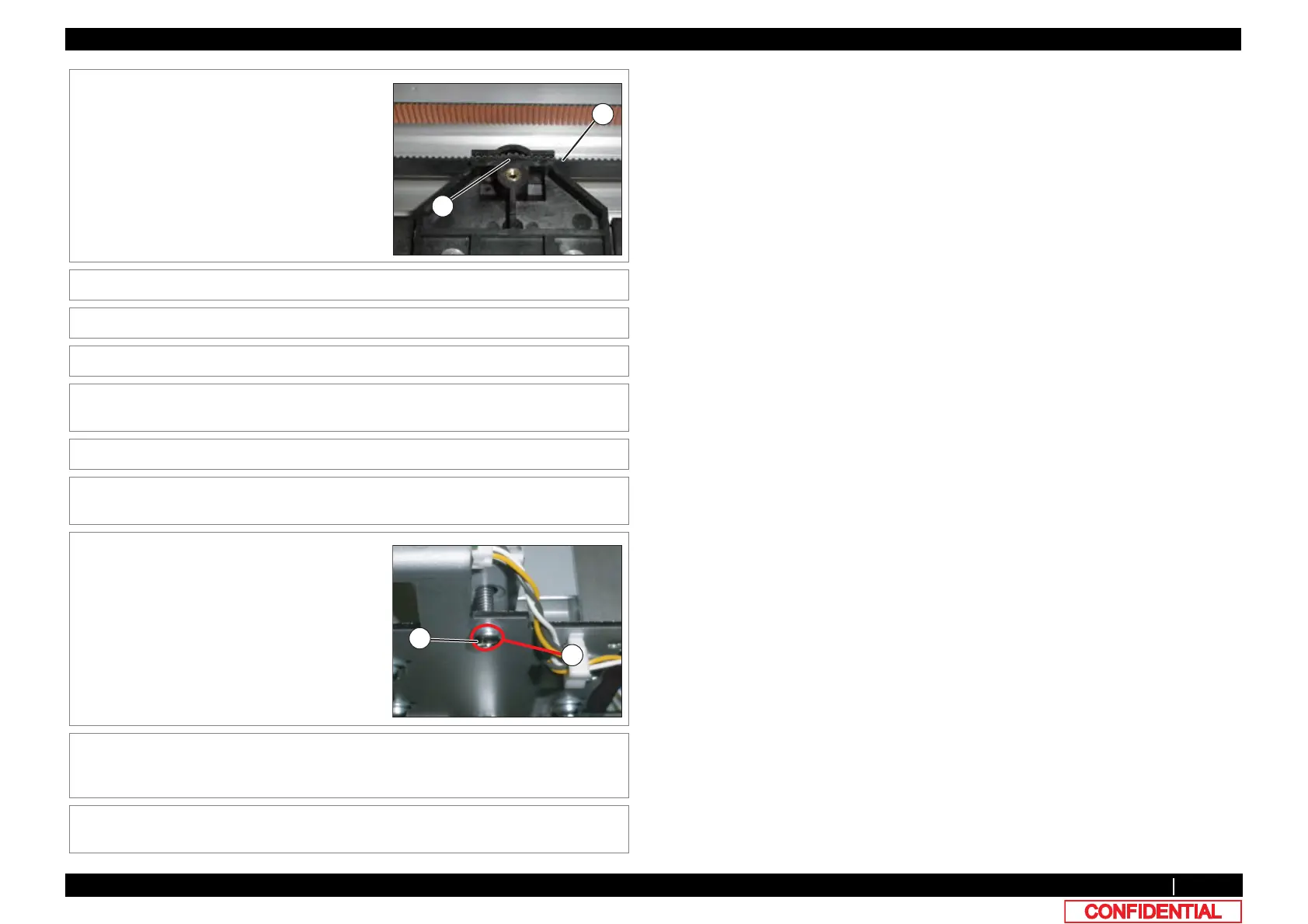

16 Remove CR Belt from Cursor.
A : CR Belt
B : Cursor
17 Replace CR Belt.
18 Assemble CR Belt to Cursor.
19 Assemble CR Belt to CR Return Pulley.
20 Assemble CR Return Pulley to Return Pulley
Base.
21 Assemble CR Belt to CR Motor.
22 Adjust so that a tension adjustment plate is
located in a marking part.
23 After adjusting, apply Thread Locker to
Tension adjusting screw.
A : Pan head small screwM4ｘ35
B : applying position
24 Move Carriage to right and left by hand, and
confirm that there are no abnormalities in a
slide.
25 To reassemble unit, reverse the removal
procedure.
