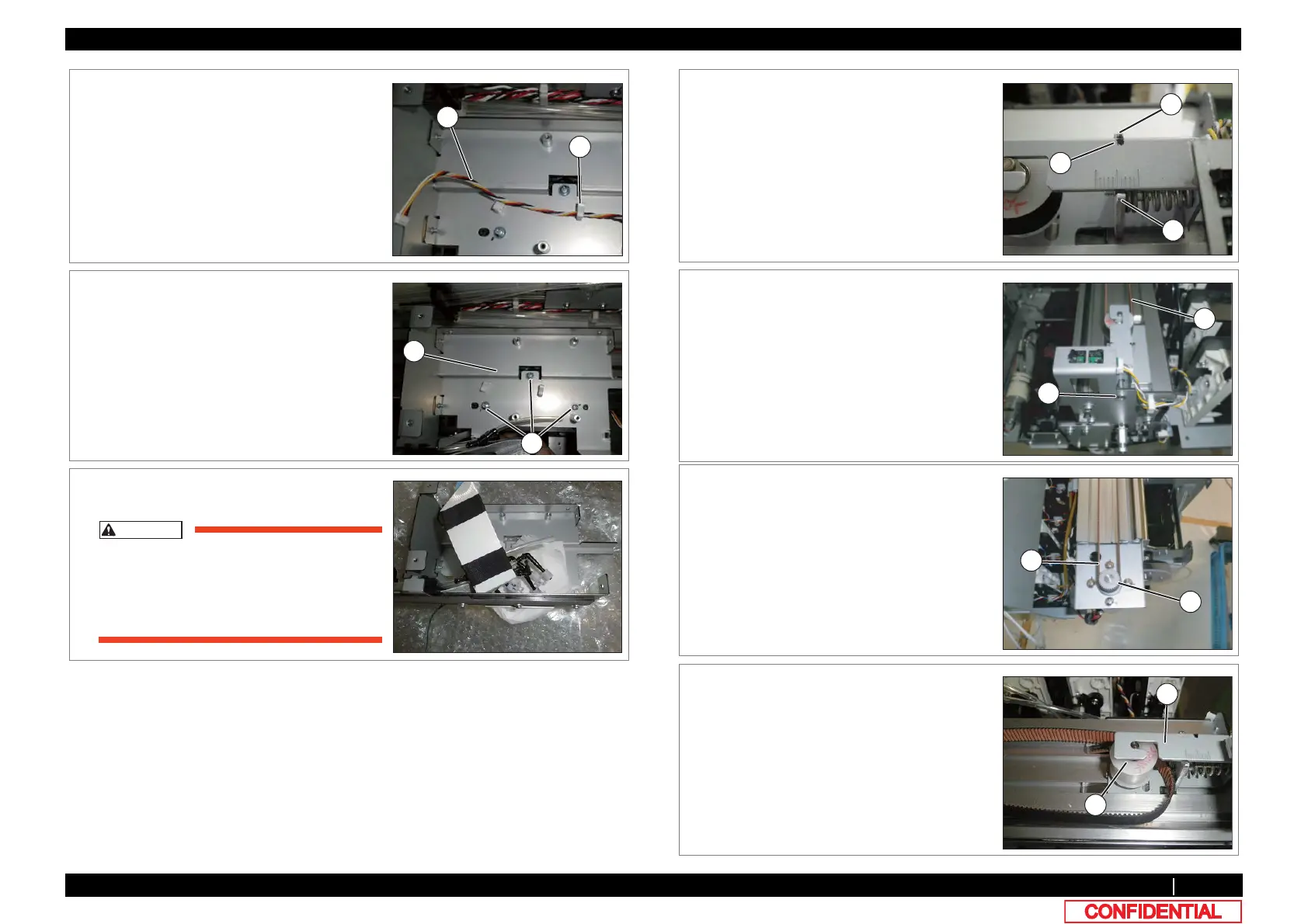

MUTOH Valuevet VJ-628X - Page 94

3.6.2 Replacing CR Belt 94
3.6 Replacing Y Rail part VJ628XE-M-00
9 Remove CR encoder cable from th clamps on
the path.
A : Clamp
B : Cable
C :
10 Remove the screws (3 pieces) retaining CR
Board Base to Cursor.
A : Pan-head screw with spring washer and
flat washer M3ｘ6
B : CR Board Base
11 Remove CR Board Base from Cursor.
CAUTION
CR Board Base is removed while Steel
Bare etc. are attached.
As load should not be applied to Steel
bare etc. , place it on a bubble wrap.
A
B
B
A
12 Mark the position of CB belt tension adjusting
plate.
A : CR belt adjusting plate
B : Marking
13 Loosen the adjusting screw, and the loosen
tension of CR Belt.
A : Pan head small screw M4ｘ30
B : CR Bel
14 Remove CR belt from CR motor.
A : CR belt
B : CR motor
15 Remove CR Return Pulley from Return Pulley
Base.
A : CR Return Pulley Assy
B : Return Pulley Base
