Nordson Spectrum II Series User Manual

Operation 4-33
4.10.7.3 Line Parameters
Line Parameters offer greater control over line thickness and ensure clean dispensed lines. You may
define up to ten different line styles. Each style may have different parameters. You may set line
parameters for lines, weight control lines, arcs, circles, rectangles, and area fills. The line style is selected
when entering a dispensing instruction into your program.
Line parameters are divided into three categories according to when each parameter is implemented
during the dispensing process. Parameters include items such as dispense gap, speed, and retract distance.
To edit line parameters:
1. In the Programming Window, select on
Edit > Edit Line Parameters from the menu bar.
 A window may open indicating the type of valve installed on your dispensing system
and which valve, Valve 1 or Valve 2, is currently active.
2. Click on
OK.
 The Line Parameters window opens (Figure 4-28).
 Refer to the Fluidmove User Guide or Online Help for a description of the options.

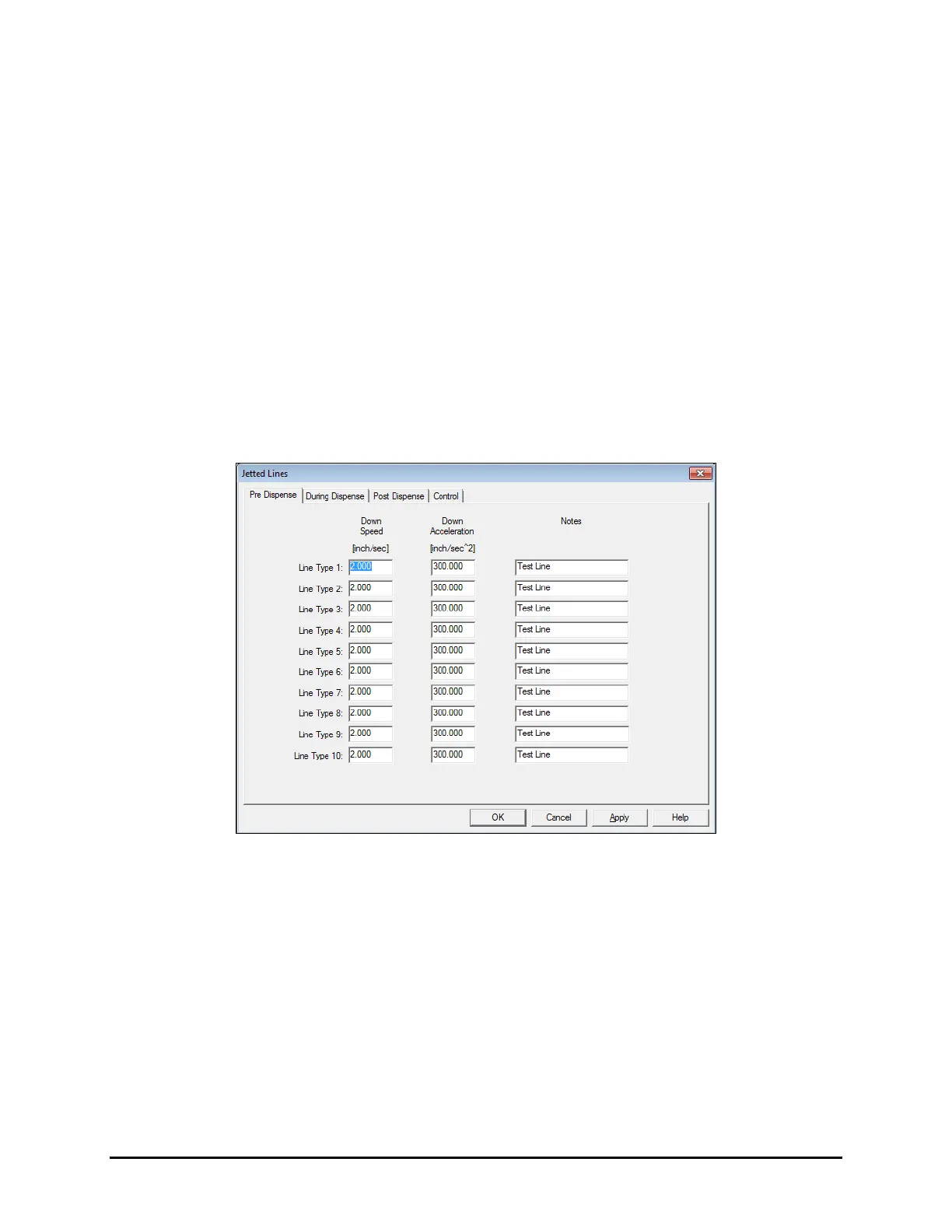

Figure 4-28 Line Parameters (Jetted Lines shown)
3. Click on the desired tab and enter the new value in the appropriate text box.
4. Click
OK when done.
 The Line Parameters window will close.
5. Line parameters are saved in the fluid file. Select
File > Fluid Table > Save in the
Programming Window to save line parameters.
 NOTE When you edit line parameters, it affects all lines in the program associated with that
style. If you just want to change parameters for one line in a program, you should define
a new style.
