Nordson Spectrum II Series User Manual

Operation 4-35
4.10.8.2 Heater Tooling
The Conveyor/Heater Module in the lower front cabinet monitors the Resistance Temperature Detector
(RTD), compares it to the heat parameters set in Fluidmove, and regulates the voltage going to the heating
element to maintain the set temperature.
CAUTION! The operator can turn the heaters ON and OFF and monitor their function.
However, only authorized personnel should set heater parameters.
 NOTE Contact your applications engineer or Nordson ASYMTEK Technical Support for
information about setting heater parameters for your particular application.
To set the heater tooling temperature:
1. In the Fluidmove Main Window, click on
Run a Program .
2. In the Production Window (Figure 4-30), click on
Setup and in the list box select
Setup Heater 2.
 The Heater Control Window opens (Figure 4-31).

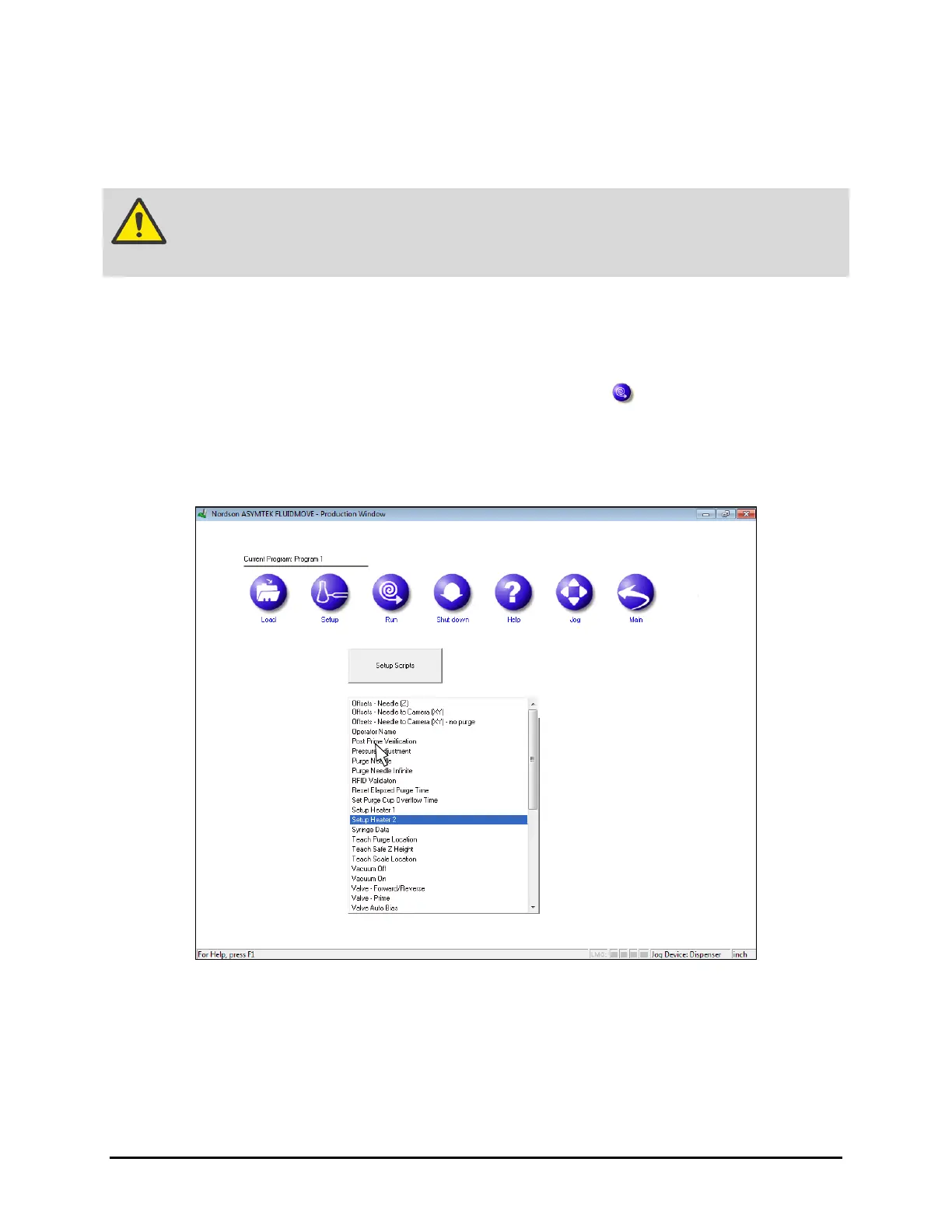

Figure 4-30 Fluidmove Production Window
