Nordson Spectrum II Series User Manual

Parts Replacement 8-13
6. Power on the dispensing system as described in 4.3 Powering on the Dispensing System.
7. Verify that the LEDs on the board are now lit.
8. Perform a service shutdown as specified in 2.13 Service Shutdown.
9. Replace the covers.
10. Power on the dispensing system as described in 4.3 Powering on the Dispensing System.

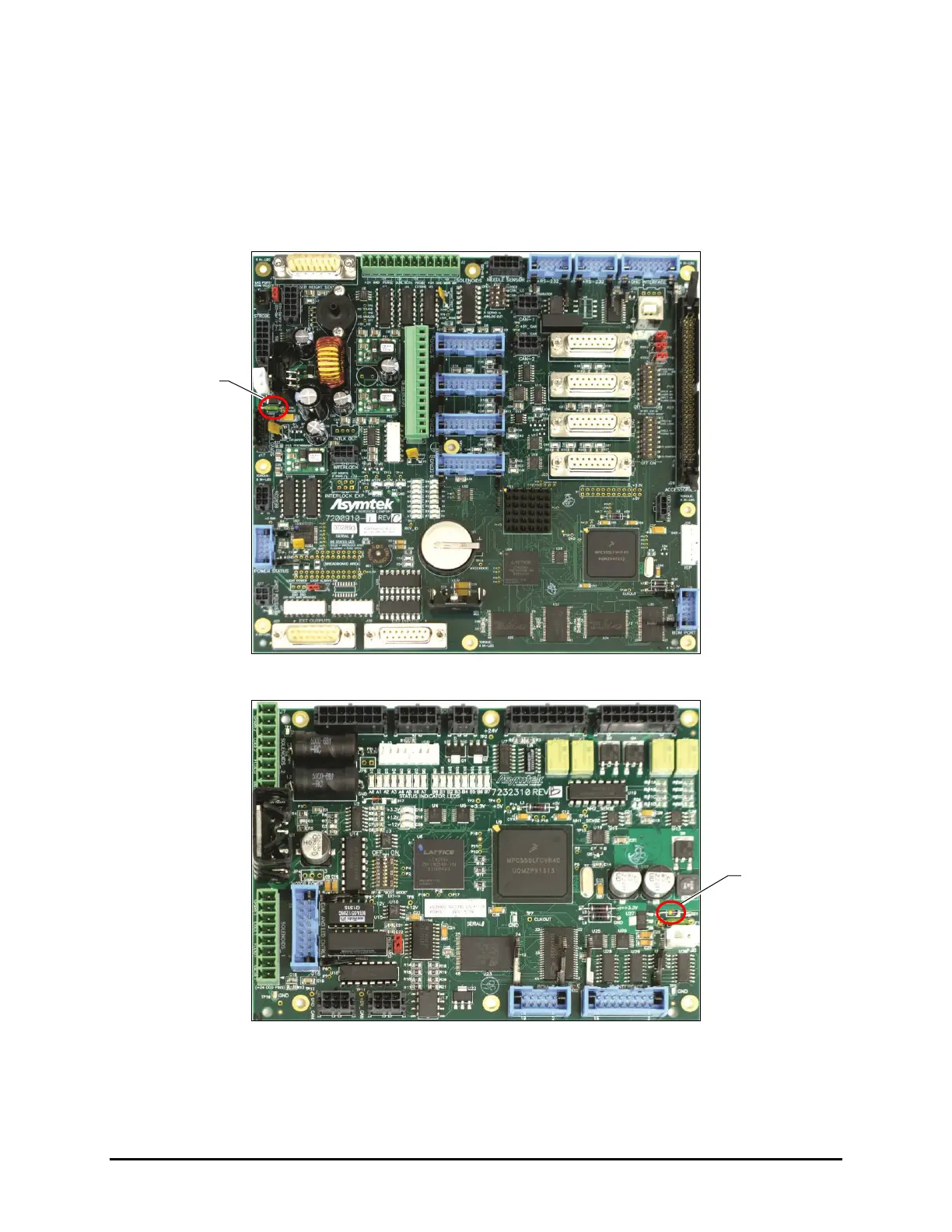

Figure 8-9 Main PWA Fuse Location
Figure 8-10 PDHC Fuse Location
 NOTE The 5A fuses are the only replaceable board fuses. Replacement fuses (P/N 7204226) are
included in Tools & Spares Kit (P/N 7212877).
5A Fuse
5A Fuse
