Oce CS2436 - Removing the Roll Holder from Rolls

Handling Paper (CS2436-6)
6. 2. 7. Handling Paper > Handling rolls >
Removing the Roll Holder from Rolls

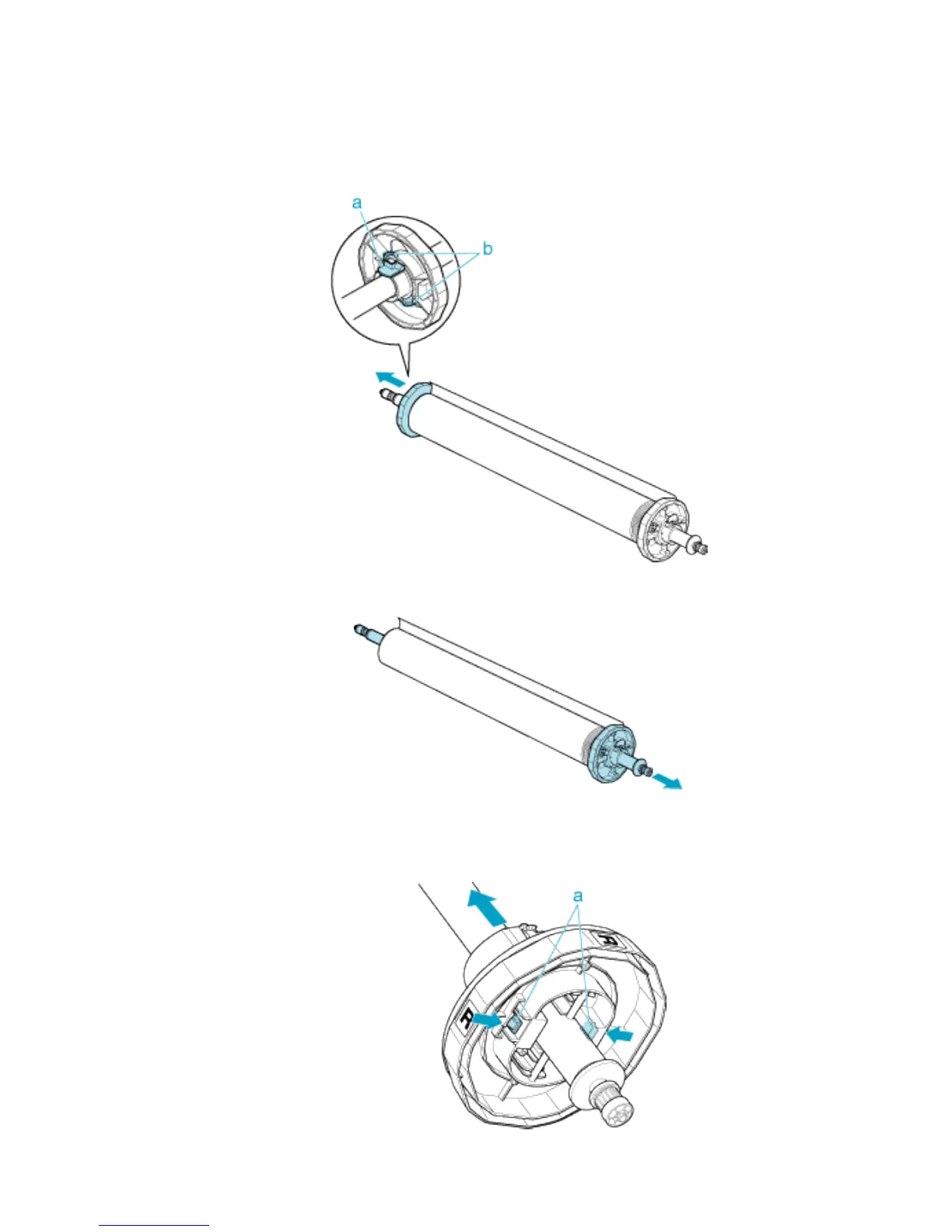

1.
Lift the Holder Stopper lever (a) from the shaft side to unlock it. Holding the Holder Stopper at the
position indicated (b), remove it from the Roll Holder.
2. Remove the Roll Holder from the roll.
3. When removing attachments, push the tips (a) in as you remove the attachment.
● 3-Inch Paper Core Attachment R ( Roll Holder side)
4. 3-Inch Paper Core Attachment L ( Holder Stopper side)
