8. 1. 1. Printer Parts > Printer parts >

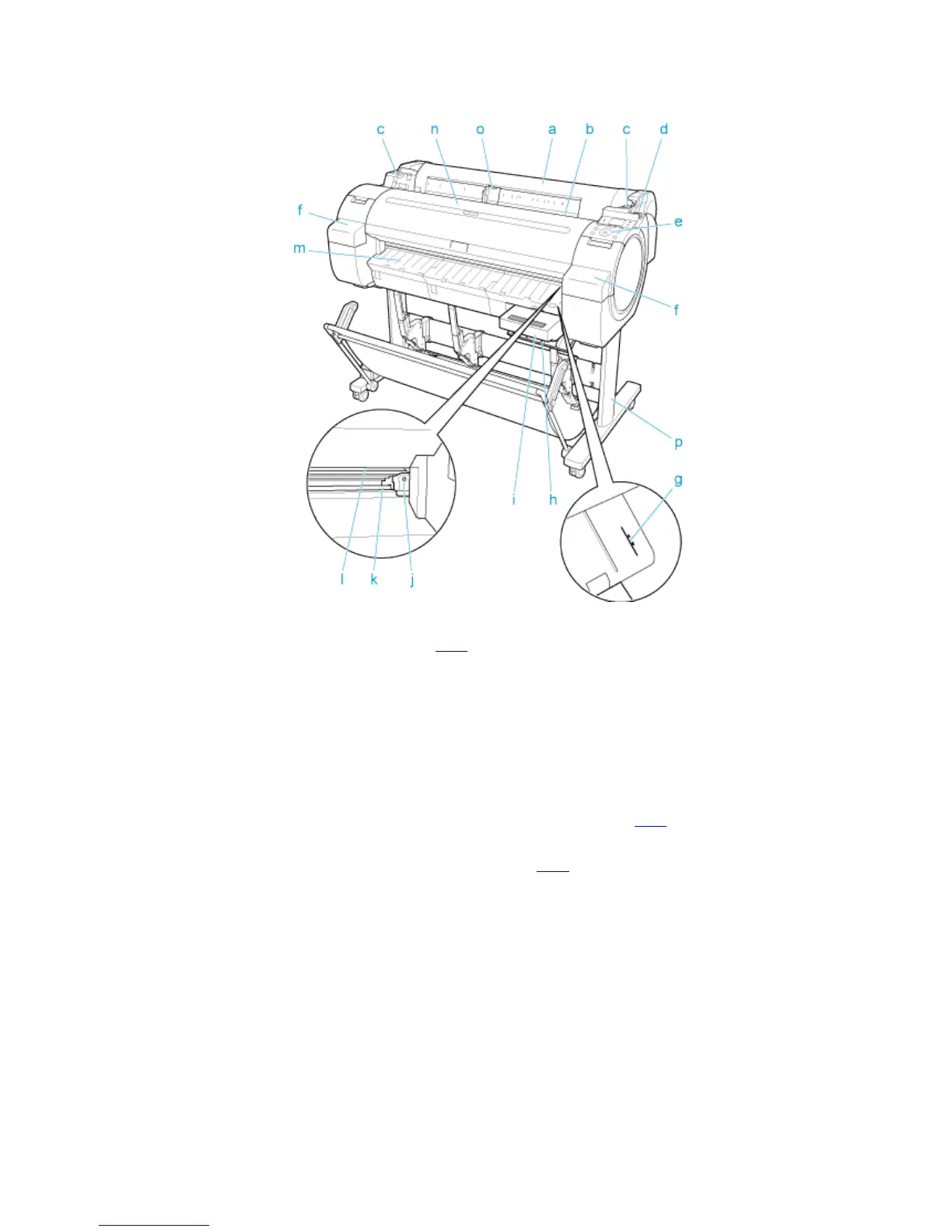

Front
a. Roll Cover
Open this cover to load rolls. (See "Roll Cover (Inside) (8.1.4).")
b. Paper Feed Slot
When loading paper, insert it here.
c. Roll Ledge
When loading rolls, rest the Roll Holder here before loading it in the Roll Holder Slot.
d. Release Lever
When releasing the Paper Retainer, push this lever back.
e. Control Panel
Use this panel to operate the printer and check the printer status. (See "Control Panel (8.1.8).")
f. Ink Tank Cover
Open this cover to replace an Ink Tank. (See "Ink Tank Cover (Inside) (8.1.6).")
g. Paper Alignment Line
An orange line for alignment of paper.
h. Maintenance Cartridge Cover
Open this cover to replace the Maintenance Cartridge.
i. Maintenance Cartridge
Absorbs ink used for maintenance purposes such as head cleaning. (Replace the cartridge when it is full.)
j. Cutter Unit
A round-bladed cutter for automatic roll cutting.
k. Cutter Rail
The Cutter Unit passes over this rail to cut paper.
l. Output Tray
All printed documents are ejected from this slot.
m. Ejection Guide
Guides printed documents as they are ejected.
