Maintenance (CS2436-10)

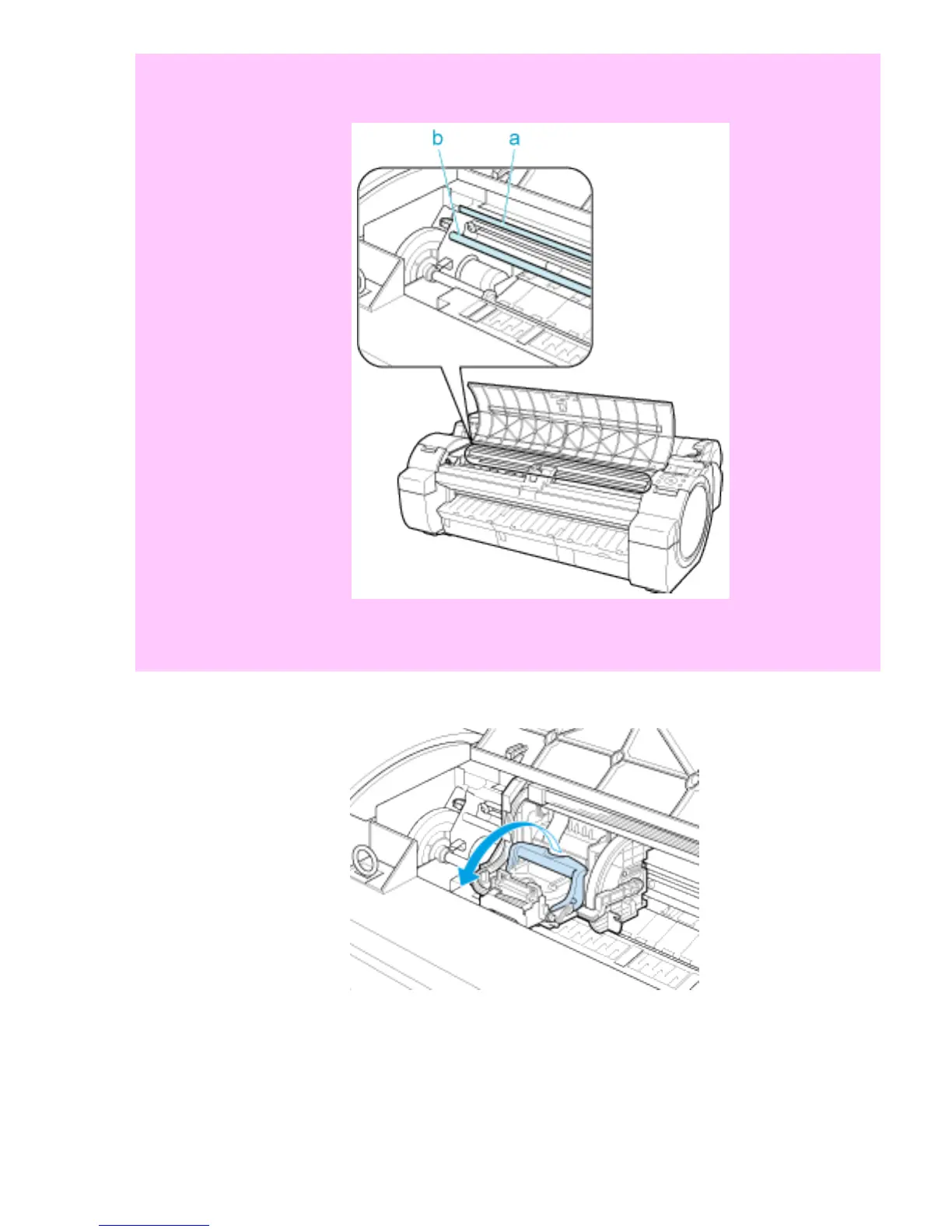

･ Do not touch the Linear Scale (a) or Carriage Shaft (b). Touching
these parts may damage them.
･ Never touch the metal contacts of the Carriage. This may damage
the printer.
3. Pull the Printhead Fixer Lever forward all the way to open it completely.
4. Pull up the Printhead Fixer Cover to open it completely.
