Maintenance and Inspection Section 6-4
6-4-6 Capacitor Life Curves

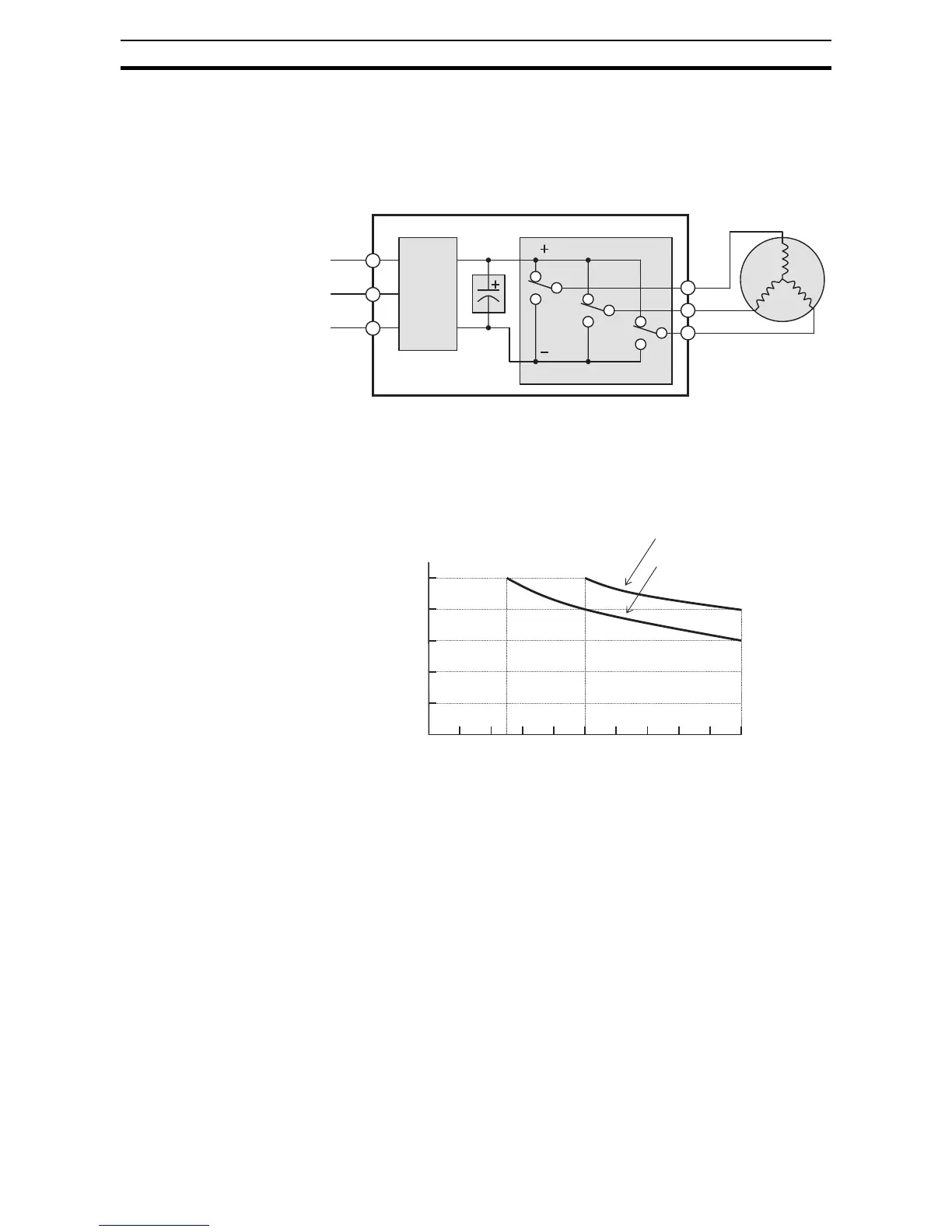

The DC bus inside the inverter uses a large capacitor as shown in the dia-
gram below. The capacitor handles high voltage and current as it smoothes
the power for use by the inverter. So, any degradation of the capacitor will
affect the performance of the inverter.
Capacitor life is reduced in higher ambient temperatures, as the graph below
demonstrates. Under the condition of average ambient temperature 40°C,
80% load, 24 hours operation, the lifetime is 10 years. Be sure to keep the
ambient temperature at acceptable levels, and perform maintenance inspec-
tions on the fan, heat sink, and other components. If the inverter is installed on
a cabinet, the ambient temperature is the temperature inside the cabinet.
Rectifier
Motor
Inverter
Converter
Internal
DC Bus
Power
Input
L1
L2
L3
U/T1
V/T2
W/T3
Variable-frequency Drive
50
Years
Operation 24 hours/day, 100% load
40
30
20
10
1 2 3 4 5 6 7 8 9 10
Operation 24 hours/day, 80% load
Capacitor Life Curve
0
A
mbient
temperature, °C

Omron MX2 Specifications

General

Model	MX2
Category	Inverter
Enclosure Rating	IP20
Control Method	V/f control, Sensorless vector control
Frequency Range	0.1 to 400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit
Communication	Modbus RTU
Ambient Temperature	-10 to 50 °C (without freezing or condensation)
Overload Capacity	150% for 60 seconds
Cooling Method	Fan Cooled
Humidity	5 to 95% RH (without condensation)
Altitude	Up to 1000m without derating
Voltage	200-240 VAC, 380-480 VAC
Braking Unit	Built-in (for certain models), Optional External
