SECTION 2
Inverter Mounting and Installation
2-1 Orientation to Inverter Features
2-1-1 Unpacking and Inspection
Please take a few moments to unpack your new MX2 inverter and perform
these steps:
1. Look for any damage that may have occurred during transportation.
2. Verify the contents of the box.
3. Inspect the specifications label on the side of the inverter. Make sure it
matches the product part number you ordered.
2-1-2 Main Physical Features
The MX2 Series inverters vary in size
according to the current output rating and
motor size for each model number. All
feature the same basic Keypad and con-
nector interface for consistent ease of
use. The inverter construction has a heat
sink at the back of the housing. The larger
models include a fan to enhance heat sink
performance. The mounting holes are
predrilled in the heat sink for your conve-
nience. Smaller models have two mount-
ing holes, while larger ones have four. Be
sure to use all the mounting holes pro-
vided.
Never touch the heat sink during or just
after operation; it can be very hot.
The electronics housing and front panel
are built onto the front of the heat sink.

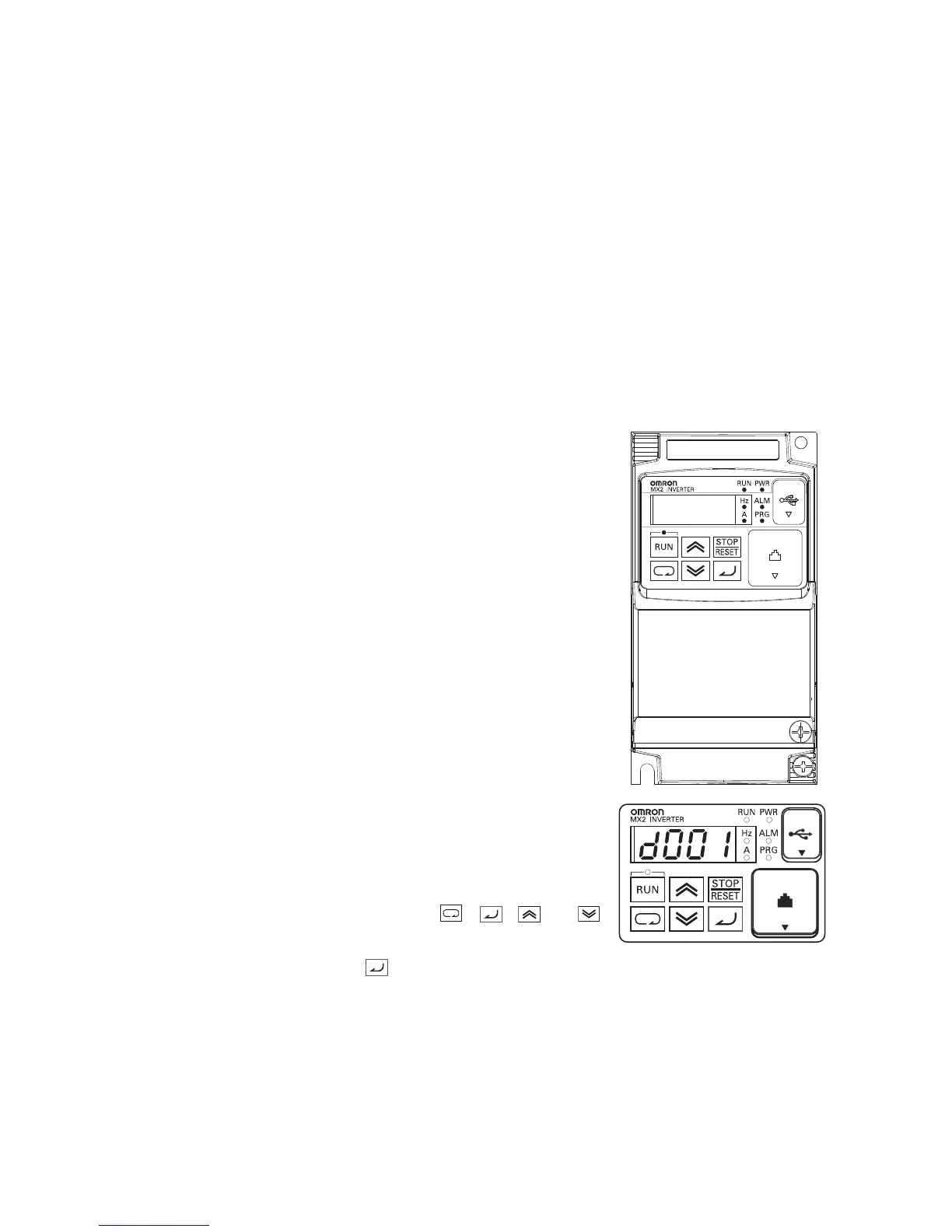

Inverter Keypad - The inverter uses a
digital operator interface, or keypad. The
four-digit display can show a variety of
performance parameters. LEDs indicate
whether the display units are Hertz or
Amperes. Other LEDs indicate Power
(external), and Run/Stop mode and Pro-
gram/Monitor Mode status. Membrane
keys Run and Stop/Reset control monitor
operation. The , , and
keys allow an operator to navigate to the
inverter's functions and parameter values.
The key is used when changing a
parameter.
