Omron MX2 User Manual

201

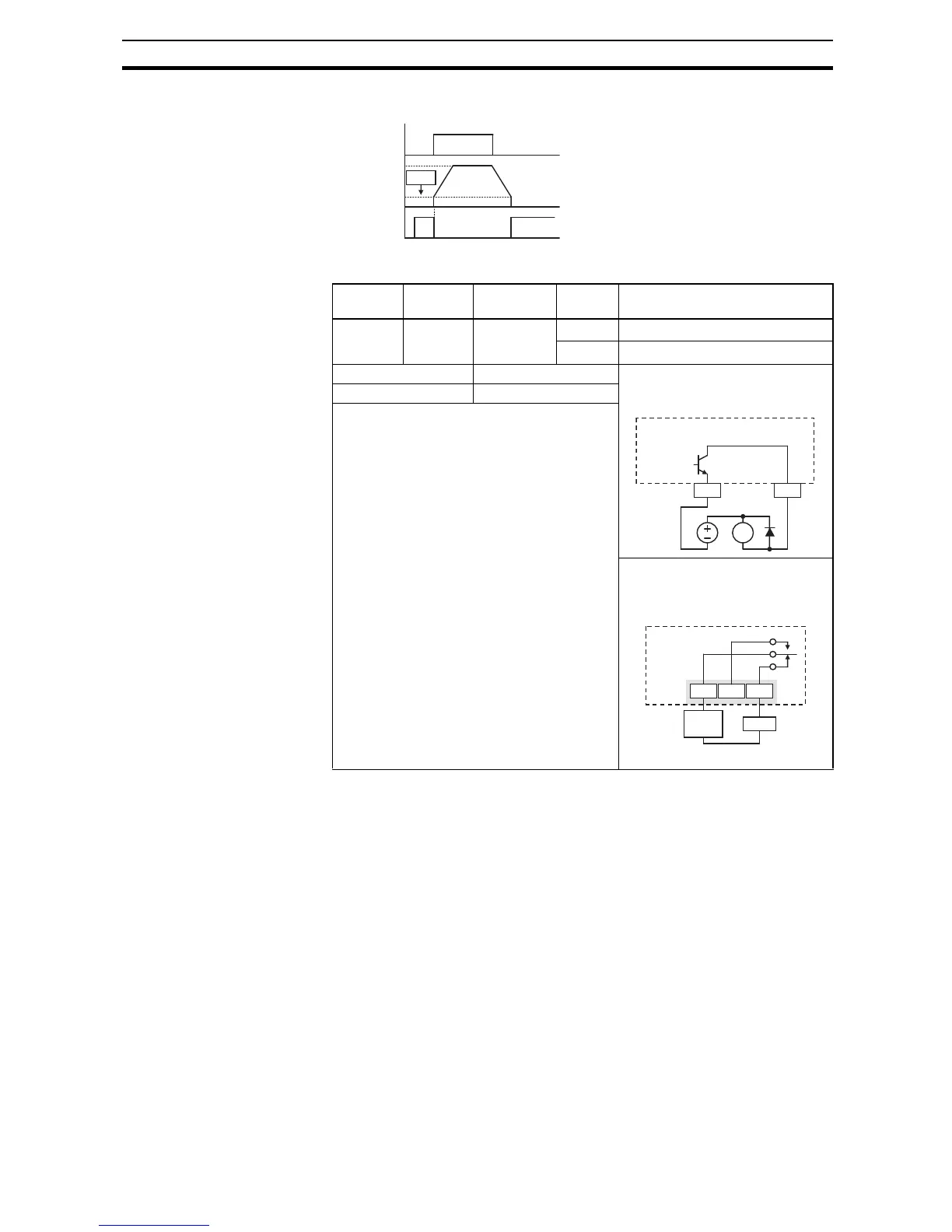

Using Intelligent Output Terminals Section 4-6
4-6-5 Run Signal
When the [RUN] signal is selected as an
intelligent output terminal, the inverter
outputs a signal on that terminal when it
is in Run Mode. The output logic is active
low, and is the open collector type
(switch to ground).
Option
Code
Terminal
Symbol
Function
Name
State Description
00 RUN Run Signal ON when inverter is in Run Mode
OFF when inverter is in Stop Mode
Valid for inputs: 11, 12, AL0 - AL2 Example for terminal [11] (default
output configuration shown – see
page 135):
Required settings: (none)
Notes:
• The inverter outputs the [RUN] signal when-
ever the inverter output exceeds the start fre-
quency specified by parameter B082. The
start frequency is the initial inverter output fre-
quency when it turns ON.
• The example circuit for terminal [11] drives a
relay coil. Note the use of a diode to prevent
the negative going turn-off spike generated by
the coil from damaging the inverter's output
transistor.
Example for terminal [AL0],
[AL1], [AL2] (requires output
configuration – see page 199
and page 135):
See I/O specs on page 169
[FW,RV]
1
0
Output
frequency
t
Run
signal
1
0
start freq.
ON
b082
RY
Inverter output
terminal circuit
CM2 11
RUN
AL1
Power
supply
Load
AL0 AL2
Inverter logic
circuit board
RUN

Omron MX2 Specifications

General

Model	MX2
Category	Inverter
Enclosure Rating	IP20
Control Method	V/f control, Sensorless vector control
Frequency Range	0.1 to 400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit
Communication	Modbus RTU
Ambient Temperature	-10 to 50 °C (without freezing or condensation)
Overload Capacity	150% for 60 seconds
Cooling Method	Fan Cooled
Humidity	5 to 95% RH (without condensation)
Altitude	Up to 1000m without derating
Voltage	200-240 VAC, 380-480 VAC
Braking Unit	Built-in (for certain models), Optional External
