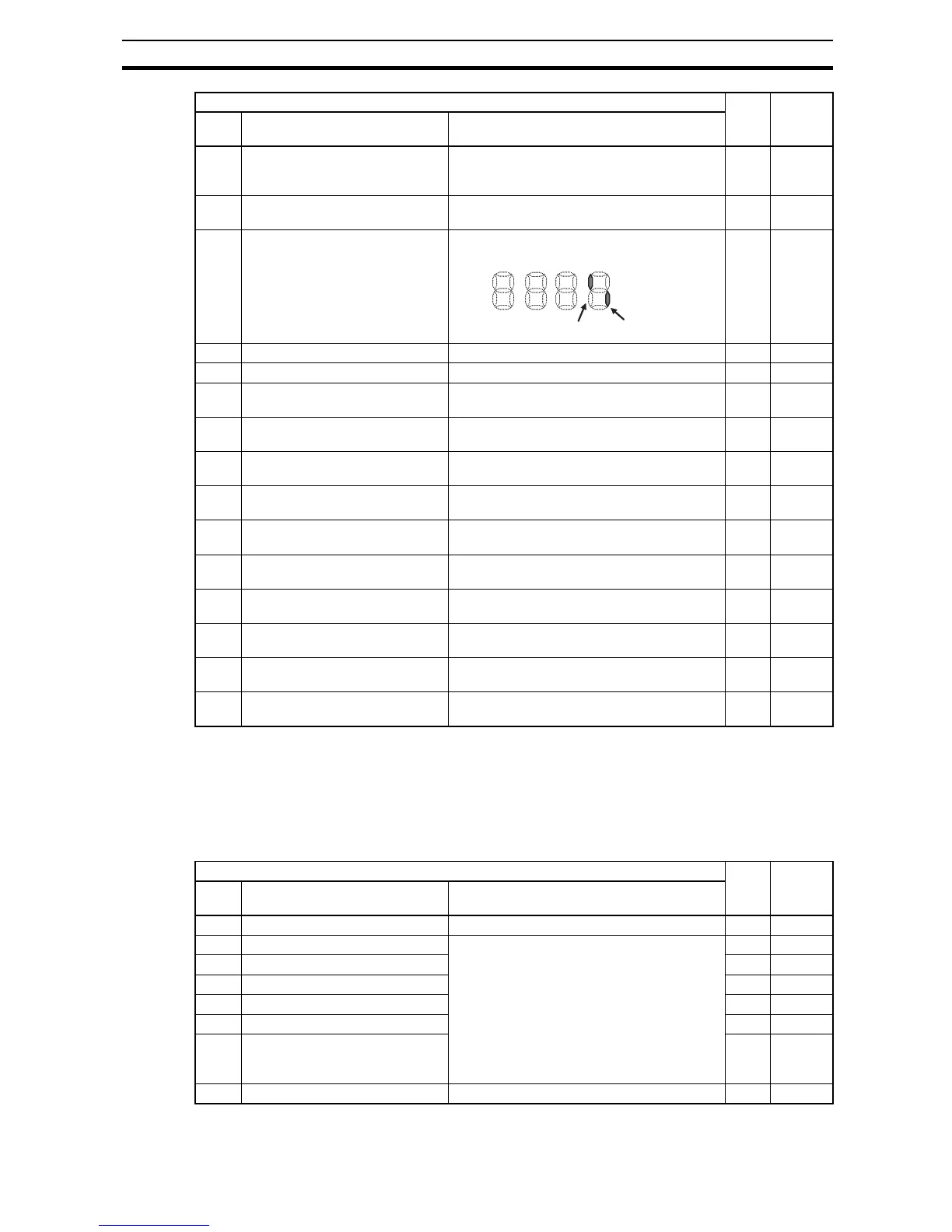

"D" Group: Monitoring Functions Section 3-3
3-3-1 Trip Event and History Monitoring
The trip event and history monitoring feature lets you cycle through related
information using the keypad. See 6-2 Monitoring Trip Events, History, & Con-
ditions on page 238 for more details.
D017 Elapsed power-on time monitor Displays total time the inverter has been pow-
ered up in hours. Range is 0 to 9999 / 1000 to
9999 / 100 to 999 (10,000 to 99,900)
– hours
D018 Heat sink temperature monitor Temperature of the cooling fin, range is -
20~150
– C
d022 Life check monitor Displays the state of lifetime of electrolytic
capacitors on the PWB and cooling fan.
––
d023 Program counter monitor [EzSQ] Range is 0 to 1024 – –
d024 Program number monitor [EzSQ] Range is 0 to 9999 – –
d025 User monitor 0 [EzSQ] Result of EzSQ execution, range is
-2147483647~2147483647
––
d026 User monitor 1 [EzSQ] Result of EzSQ execution, range is
-2147483647~2147483647
––
d027 User monitor 2 [EzSQ] Result of EzSQ execution, range is
-2147483647~2147483647
––
d029 Positioning command monitor Displays the positioning command, range is -
268435455~+268435455
––
d030 Current position monitor Displays the current position, range is
-268435455~+268435455
––
d050 Dual monitor Displays two different data configured in b160
and b161.
––
d060 Inverter mode monitor Displays currently selected inverter mode : IM,
IM-high-FQ
––
D102 DC bus voltage monitor Voltage of inverter internal DC bus, Range is
0.0 to 999.9
–V
d103 BRD load ratio monitor Usage ratio of integrated brake chopper,
range is 0.0~100.0%
–%
D104 Electronic thermal monitor Accumulated value of electronic thermal
detection, range is from 0.0~100.0%
–%
*1
Up to 1000Hz for High frequency mode (d060 set to "2")
*2
Up to 1000Hz for High frequency mode (d060 set to "2")
"D" Function Run
Mode
Edit
Units
Func.
Code
Name Description
Lifetime expired
Normal
Electrolytic caps
Cooling fan
"D" Function Run
Mode
Edit
Units
Func.
Code
Name Description
D080 Trip counter Number of trip events, Range is 0. to 65530 – events
D081 Trip monitor 1 Displays trip event information:
• Error code
• Output frequency at trip point
• Motor current at trip point
• DC bus voltage at trip point
• Cumulative inverter operation time at trip
point
• Cumulative power-ON time at trip point
––
D082 Trip monitor 2 – –
D083 Trip monitor 3 – –
d084 Trip monitor 4 – –
d085 Trip monitor 5 – –
d086 Trip monitor 6 – –
d090 Warning monitor Displays the warning code – –

Omron MX2 Specifications

General

Model	MX2
Category	Inverter
Enclosure Rating	IP20
Control Method	V/f control, Sensorless vector control
Frequency Range	0.1 to 400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit
Communication	Modbus RTU
Ambient Temperature	-10 to 50 °C (without freezing or condensation)
Overload Capacity	150% for 60 seconds
Cooling Method	Fan Cooled
Humidity	5 to 95% RH (without condensation)
Altitude	Up to 1000m without derating
Voltage	200-240 VAC, 380-480 VAC
Braking Unit	Built-in (for certain models), Optional External
