218
Using Intelligent Output Terminals Section 4-6
4-6-23 Lifetime Warning Output Function
Capacitor life warning signal – The inverter checks the operating life of the
capacitors on the internal circuit board on the basis of the internal tempera-
ture and cumulative power on time. You can also monitor the state of the
capacitor life warning signal (WAF) in
d022. If the WAC signal is given out, it is
recommended to replace the main PCB and control PCB.
Cooling fan warning signal – If the signal is given out, check the cooling fan
cover for clogging. You can also monitor the state of WAF signal in
d022.

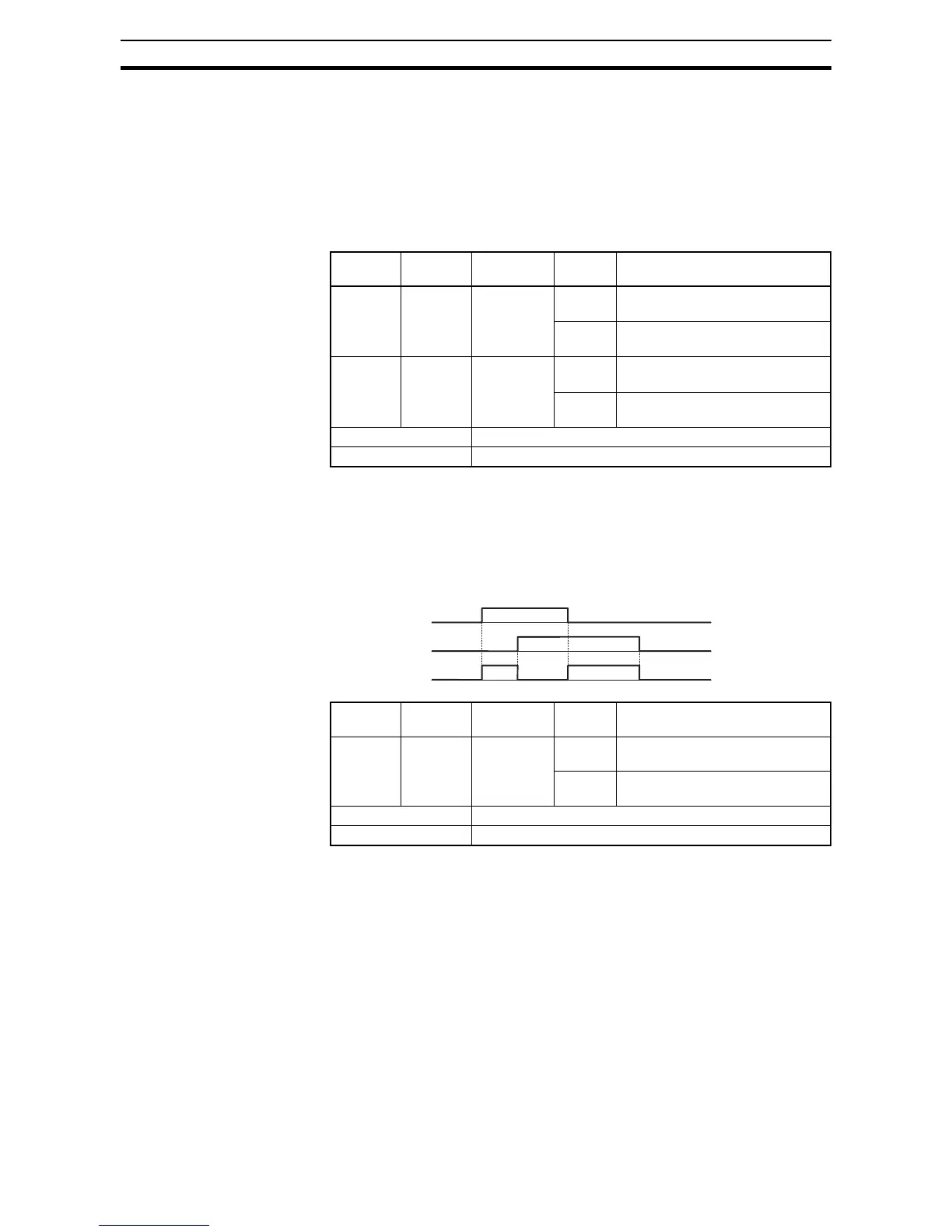

4-6-24 Starting Contact Signal
The inverter gives out the starting contact signal (FR) while it is receiving an
operational command. The FR signal is given out, regardless the setting of
the run command source setting (
A002). If the forward operation (FW) and
reverse operation (RV) are given at the same time, the inverter stops the
motor operation.
Option
Code
Terminal
Symbol
Function
Name
State Description
39 WAC Capacitor
life warning
signal
ON Calculated lifetime of the
electrolytic capacitor is expired
OFF Electrolytic capacitor is normal
40 WAF Cooling
fan warning
signal
ON Calculated lifetime of the cooling
fan is expired
OFF Cooling fan is normal
Valid for inputs: 11, 12, AL0 - AL2
Required settings:
Option
Code
Terminal
Symbol
Function
Name
State Description
41 FR Starting
contact
signal
ON Either FW or RV is given, or no
operation command is given
OFF Both FW and RV is given at the
same time
Valid for inputs: 11, 12, AL0 - AL2
Required settings:
Forward operation command
Reverse operation command
Starting contact signal (FR)
