23
Orientation to Inverter Features Section 2-1

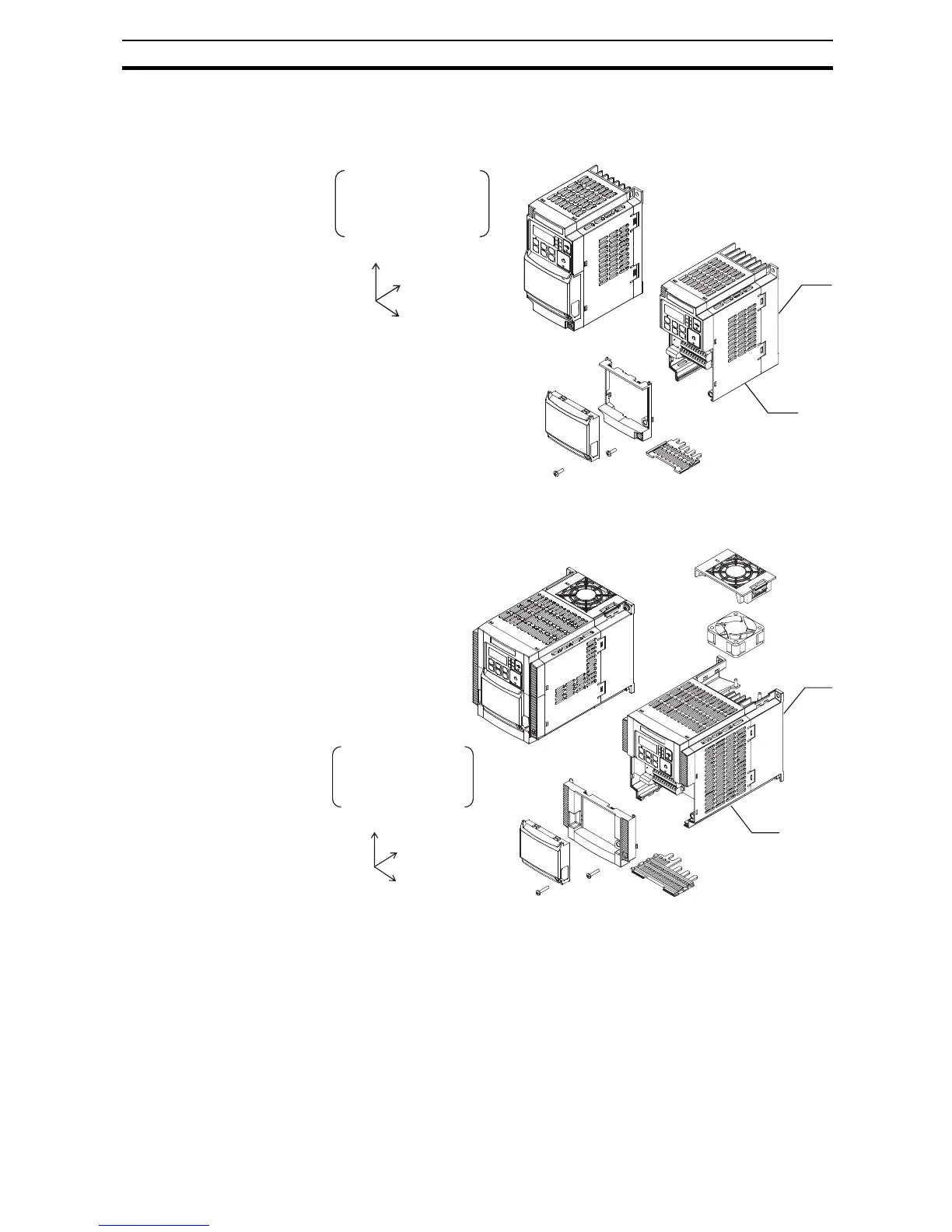

2-1-3 User removable parts by each inverter size.
1-phase 200 V 0.1, 0.2, 0.4 kW
3-phase 200 V 0.1, 0.2, 0.4, 0.75 kW
1-phase 200 V 0.75, 1.5, 2.2 kW
3-phase 200 V 1.5, 2.2 kW
3-phase 400 V 0.4, 0.75, 1.5, 2.2, 3.0 kW
(1) Cooling fan cover (5) Terminal block cover
(2) Cooling fan (6) Optional board cover
(3) Cooling fin (7) Backing plate
(4) Main housing
Note 3-phase 200 V/0.75 kW models come with a cooling fan.
1-phase 200 V/0.75 kW models and 3-phase 400 V/0.4 kW/0.75 kW models do not
come with a cooling fan.
Even if the W × H
dimension is the same, the
D dimension for the
cooling fin varies
depending on the capacity.
H
D
W
(5)
(6)
(7)
(4)
(3)
*
&
9
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Even if the W × H
dimension is the same, the
D dimension for the
cooling fin varies
depending on the capacity.
